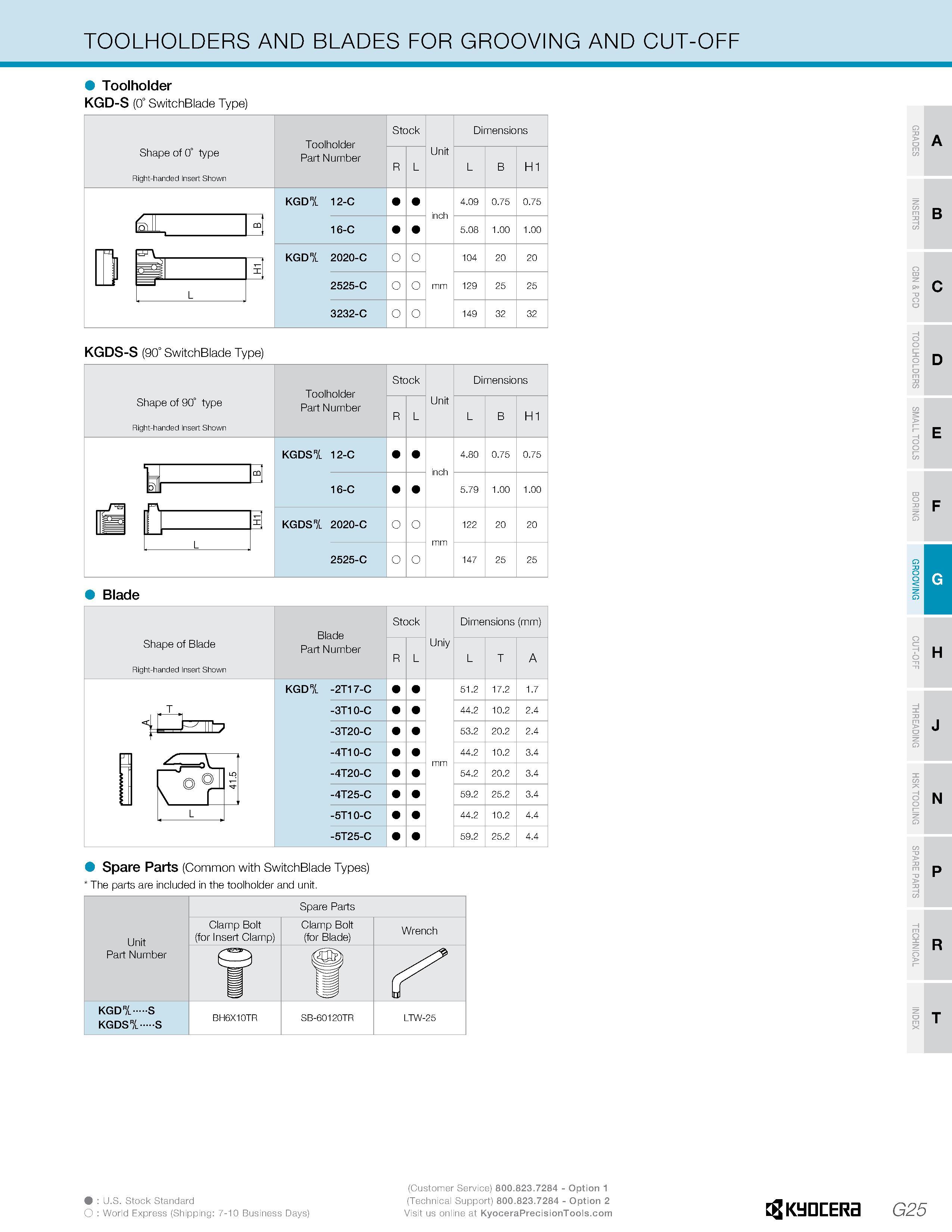

TOOLHOLDERS AND BLADES FOR GROOVING AND CUT-OFF Toolholder KGD-S (0° SwitchBlade Type) Stock Shape of 0° type Right-handed Insert Shown Toolholder Part Number KGD 12-C 16-C si L KGD 2020-C 2525-C 3232-C Unit Dimensions L B H1 4.09 0.75 0.75 104 20 20 mm 129 25 25 149 32 32 KGDS-S (90° SwitchBlade Type) Shape of 90° type Right-handed Insert Shown 5 L Toolholder Part Number KGDS 12-C 16-C KGDS 2020-C 2525-C Stock Unit Dimensions L B H1 4.80 0.75 0.75 5.79 1.00 1.00 122 20 20 147 25 25 Blade Shape of Blade Right-handed Insert Shown T Blade Part Number KGD -2T17-C -3T10-C -3T20-C -4T10-C -4T20-C -4T25-C -5T10-C -5T25-C Stock Uniy Dimensions (mm) L T A 51.2 17.2 1.7 44.2 10.2 2.4 53.2 20.2 2.4 44.2 10.2 3.4 54.2 20.2 3.4 59.2 25.2 3.4 44.2 10.2 4.4 59.2 25.2 4.4 Spare Parts (Common with SwitchBlade Types) The parts are included in the toolholder and unit. Unit Part Number Spare Parts Clamp Bolt (for Insert Clamp) Clamp Bolt (for Blade) Wrench f u S ° DD GG KK BH6X10TR SB-60120TR LTW-25 H N P R T Kyocera G25 R L inch O R L nch F mm G R L J mm
