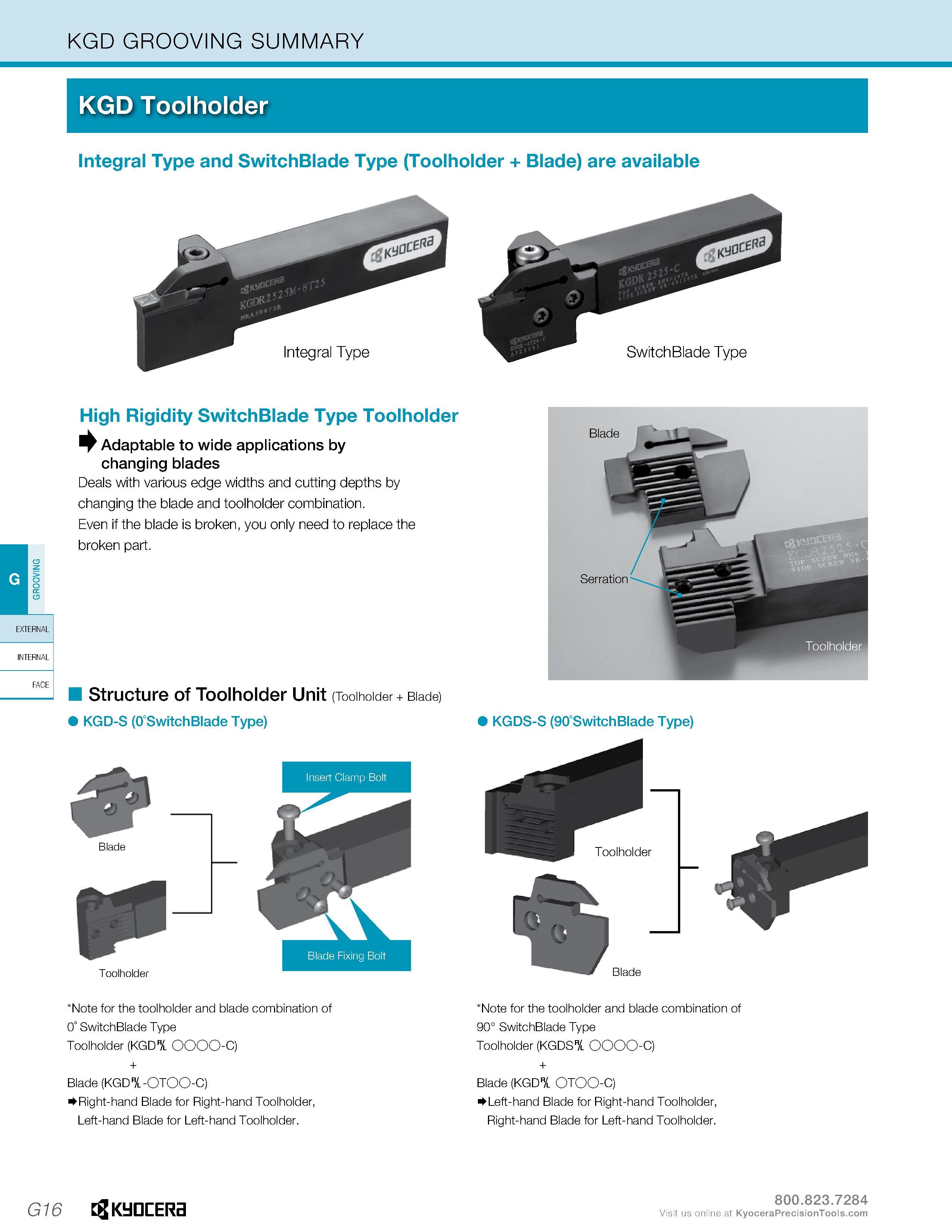

KGD GROOVING SUMMARY KGD Toolholder Integral Type and SwitchBlade Type (Toolholder + Blade) are available igggSSV SwitchBlade Type High Rigidity SwitchBlade Type Toolholder Adaptable to wide applications by changing blades Deals with various edge widths and cutting depths by changing the blade and toolholder combination. Even if the blade is broken, you only need to replace the broken part. Structure of Toolholder Unit (Toolholder + Blade) KGD-S (0°SwitchBlade Type) Insert Clamp Bolt KGDS-S (90°SwitchBlade Type) Blade Fixing Bolt Toolholder Toolholder Blade Note for the toolholder and blade combination of 0° SwitchBlade Type Toolholder (KGD OOOO-C) Note for the toolholder and blade combination of 90° SwitchBlade Type Toolholder (KGDS OOOO-C) Blade (KGD -OTOO-C) Right-hand Blade for Right-hand Toolholder, Left-hand Blade for Left-hand Toolholder. Blade (KGD OTOO-C) Left-hand Blade for Right-hand Toolholder, Right-hand Blade for Left-hand Toolholder. EXTERNAL INTERNAL FACE + + G16 Kyocera
