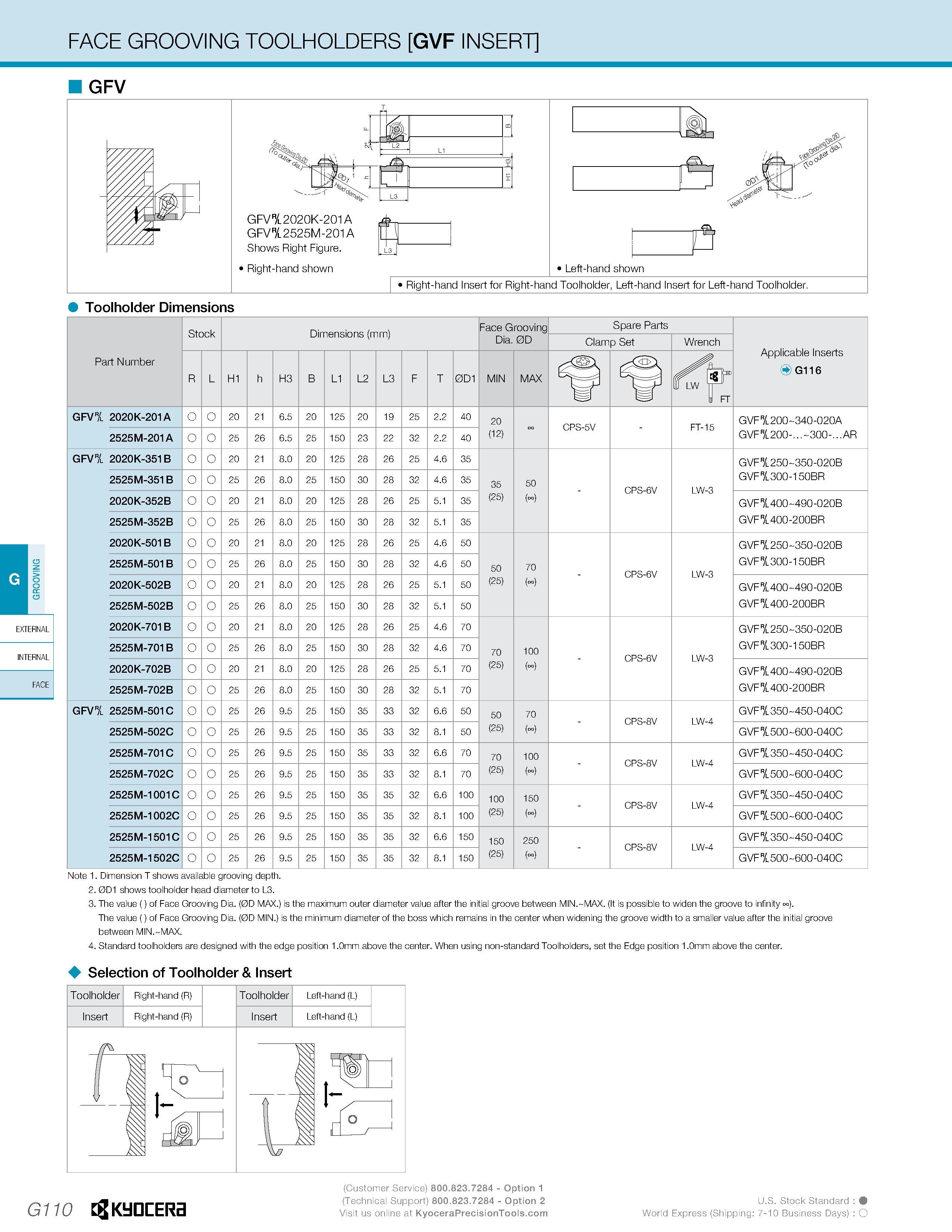

FACE GROOVING TOOLHOLDERS GVF INSERT GFV Toolholder Dimensions Part Number Stock Dimensions (mm) -ace Grooving Dia. 0D Spare Parts Applicable Inserts G116 Clamp Set Wrench R L H1 h H3 B L1 L2 L3 F T 0D1 MIN MAX n 4r GFV 2020K-201A 20 21 6.5 20 125 20 19 25 2.2 40 20 (12) , CPS-5V FT-15 GVF 200 340-020A GVFr/l200-... 300-...AR 2525M-201A 25 26 6.5 25 150 23 22 32 2.2 40 GFV 2020K-351B 20 21 8.0 20 125 28 26 25 4.6 35 35 (25) 50 H - CPS-6V LW-3 GVF 250 350-020B GVF/300-150BR 2525M-351B 25 26 8.0 25 150 30 28 32 4.6 35 2020K-352B 20 21 8.0 20 125 28 26 25 5.1 35 GVFr/l400 490-020B GVF/400-200BR 2525M-352B 25 26 8.0 25 150 30 28 32 5.1 35 2020K-501B 20 21 8.0 20 125 28 26 25 4.6 50 50 (25) 70 H - CPS-6V LW-3 GVF 250 350-020B GVF/300-150BR 2525M-501B 25 26 8.0 25 150 30 28 32 4.6 50 2020K-502B 20 21 8.0 20 125 28 26 25 5.1 50 GVF 400 490-020B GVF/400-200BR 2525M-502B 25 26 8.0 25 150 30 28 32 5.1 50 2020K-701B 20 21 8.0 20 125 28 26 25 4.6 70 70 (25) 100 H - CPS-6V LW-3 GVF 250 350-020B GVF/300-150BR 2525M-701B 25 26 8.0 25 150 30 28 32 4.6 70 2020K-702B 20 21 8.0 20 125 28 26 25 5.1 70 GVF 400 490-020B GVF/400-200BR 2525M-702B 25 26 8.0 25 150 30 28 32 5.1 70 GFV 2525M-501C 25 26 9.5 25 150 35 33 32 6.6 50 50 (25) 70 H - CPS-8V LW-4 GVF 350 450-040C 2525M-502C 25 26 9.5 25 150 35 33 32 8.1 50 GVF 500 600-040C 2525M-701C 25 26 9.5 25 150 35 33 32 6.6 70 70 (25) 100 H - CPS-8V LW-4 GVF 350 450-040C 2525M-702C 25 26 9.5 25 150 35 33 32 8.1 70 GVF 500 600-040C 2525M-1001C 25 26 9.5 25 150 35 35 32 6.6 100 100 (25) 150 H - CPS-8V LW-4 GVF 350 450-040C 2525M-1002C 25 26 9.5 25 150 35 35 32 8.1 100 GVF 500 600-040C 2525M-1501C 25 26 9.5 25 150 35 35 32 6.6 150 150 (25) 250 H - CPS-8V LW-4 GVF 350 450-040C 2525M-1502C 25 26 9.5 25 150 35 35 32 8.1 150 GVF 500 600-040C EXIERNAL INTERNAL FACE Note 1. Dimension T shows available grooving depth. 2. 0D1 shows toolholder head diameter to L3. 3. The value ( ) of Face Grooving Dia. (0D MAX.) is the maximum outer diameter value after the initial groove between MIN. MAX. (It is possible to widen the groove to infinity ). The value ( ) of Face Grooving Dia. (0D MIN.) is the minimum diameter of the boss which remains in the center when widening the groove width to a smaller value after the initial groove between MIN. MAX. 4. Standard toolholders are designed with the edge position 1.0mm above the center. When using non-standard Toolholders, set the Edge position 1.0mm above the center. Selection of Toolholder & Insert G110 Kyocera - C
