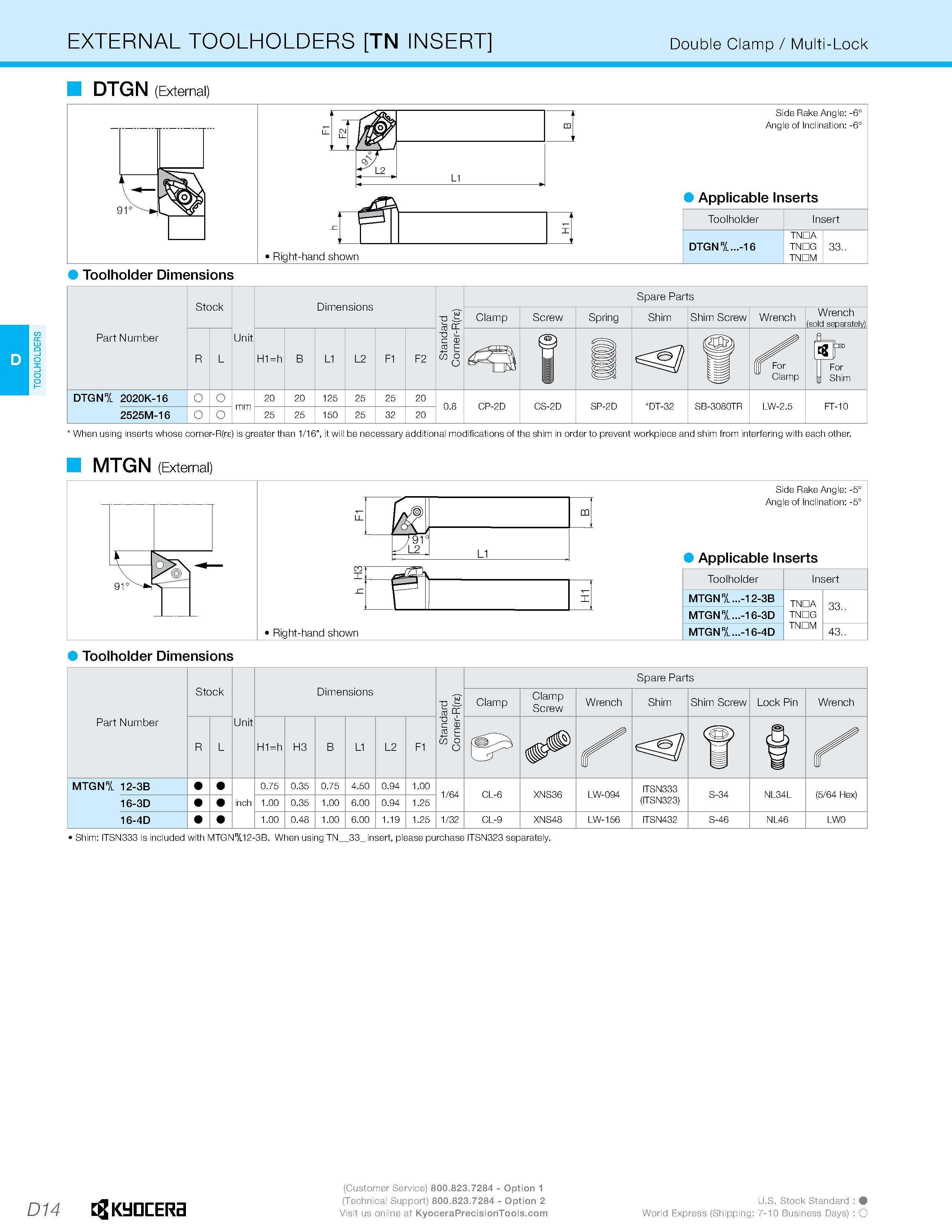

TOOLHOLDERS EXTERNAL TOOLHOLDERS TN INSERT Double Clamp / Multi-Lock DTGN (External) Side Rake Angle: -6° Angle of Inclination: -6° Applicable Inserts Right-hand shown Toolholder Insert DTGNr/l...-1 6 TNDA TNDG TNDM 33.. Toolholder Dimensions B When using inserts whose corner-R(re) is greater than 1/16", it will be necessary additional modifications of the shim in order to prevent workpiece and shim from interfering with each other. MTGN (External) Side Rake Angle: -5° Angle of Inclination: -5° Applicable Inserts Right-hand shown Toolholder MTGNr/l...-1 2-3B MTGNr/l...-1 6-3D MTGNr/l...-1 6-4D Insert TNDA TNDG TNDM 33.. 43.. Toolholder Dimensions D14 Kyocera - O
