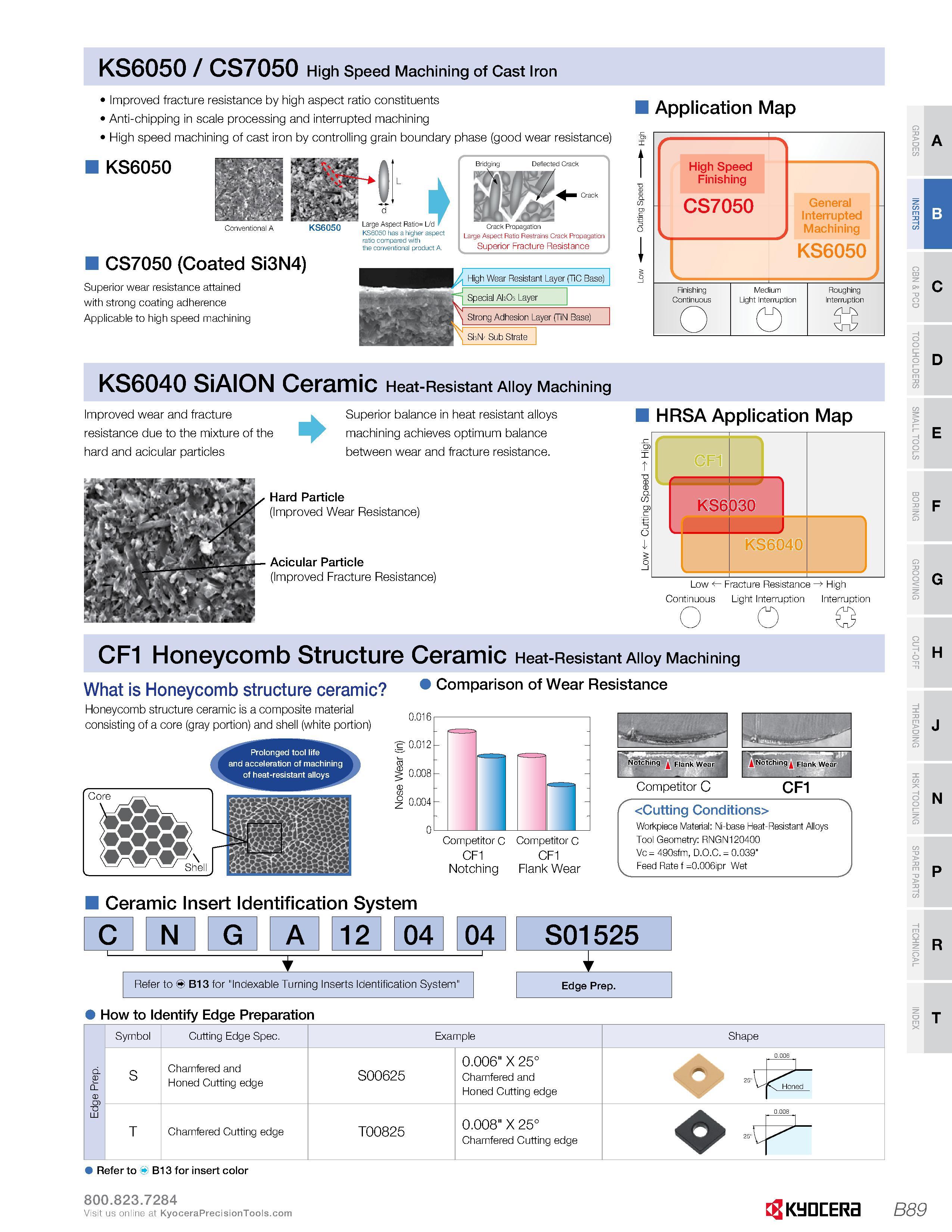

KS6050 / CS7050 High Speed Machining of Cast Iron Improved fracture resistance by high aspect ratio constituents Anti-chipping in scale processing and interrupted machining High speed machining of cast iron by controlling grain boundary phase (good wear resistance) Application Map High Speed Finishing CS7050 General Interrupted Machining KS6050 Finishing Medium Continuous Light Interruption Roughing Interruption KS6040 SiAION Ceramic Heat-Resistant Alloy Machining Improved wear and fracture resistance due to the mixture of the hard and acicular particles Superior balance in heat resistant alloys machining achieves optimum balance between wear and fracture resistance. HRSA Application Map Hard Particle (Improved Wear Resistance) Acicular Particle (Improved Fracture Resistance) o J. KS6p30 KS6040 Low Fracture Resistance > High Continuous Light Interruption Interruption CF1 Honeycomb Structure Ceramic Heat-Resistant Alloy Machining Comparison of Wear Resistance What is Honeycomb structure ceramic Honeycomb structure ceramic is a composite material consisting of a core (gray portion) and shell (white portion) Prolonged tool life and acceleration of machining x of heat-resistant alloys 0.016 0.012 0.008 0.004 Competitor C Competitor C CF1 CF1 Notching Flank Wear Workpiece Material: Ni-base Heat-Resistant Alloys Tool Geometry: RNGN120400 Vc = 490sfm, D.O.C. = 0.039" Feed Rate f =0.006ipr Wet Ceramic Insert Identification System c N G A 12 04 04 S01525 Refer to B13 for "Indexable Turning Inserts Identification System" I Edge Prep. How to Identify Edge Preparation Symbol Cutting Edge Spec. Example Shape Chamfered and Honed Cutting edge S00625 0.006" X 25° Chamfered and Honed Cutting edge Chamfered Cutting edge T00825 0.008" X 25° Chamfered Cutting Refer to B13 for insert color KymcERa Large Aspect Ratio= Lv'd f KS6050 has a higher aspect ratio compared with the conventional product A. High Wear Resistant Layer (TiC Base) Special AlsOs Layer Strong Adhesion Layer (TiN Base) Crack Propagation Large Aspect Ratio Restrains Crack Propagation Superior Fracture Resistance KS6050 Conventional A KS6050 CS7050 (Coated Si3N4) Superior wear resistance attained with strong coating adherence Applicable to high speed machining B89 GRADES INSERTS CBN & PCD TOOLHOLDERS SMALL TOOLS BORING GROOVING CUT-OFF THREADING HSK TOOLING SPARE PARTS TECHNICAL INDEX
