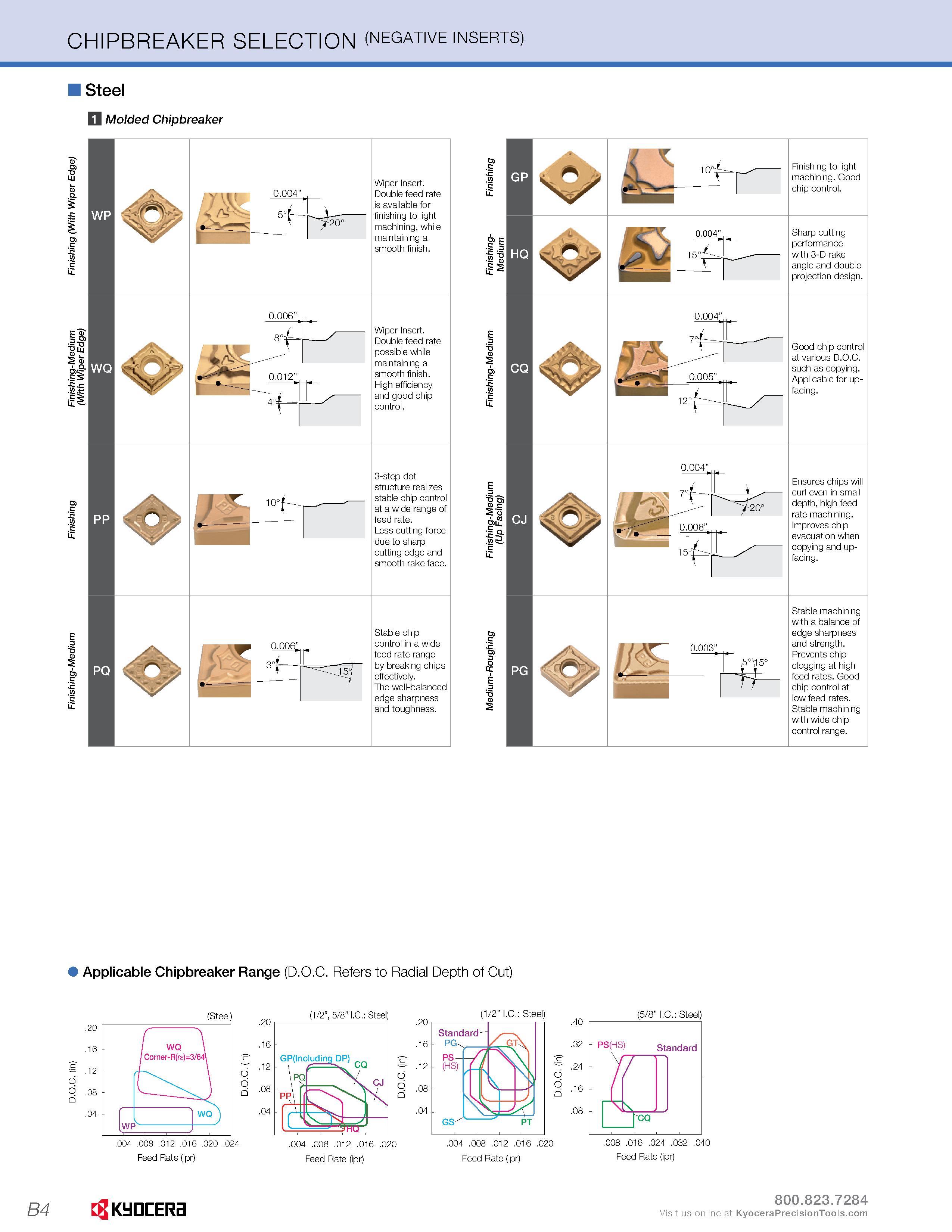

CHIPBREAKER SELECTION (negative inserts) I Steel n Molded Chipbreaker p a 1“ a lu T. Is- is Wiper Insert. Double feed rate is available for finishing to light machining, while maintaining a smooth finish. Wiper Insert. Double feed rate possible while maintaining a smooth finish. High efficiency and good chip control. 3-step dot structure realizes stable chip control at a wide range of feed rate. Less cutting force due to sharp cutting edge and smooth rake face. Stable chip control in a wide feed rate range by breaking chips effectively. The well-balanced edge sharpness and toughness. V ££ 5 o IS Finishing to light machining. Good chip control. Sharp cutting performance with 3-D rake angle and double projection design. Good chip control at various D.O.C. such as copying. Applicable for up-facing. Ensures chips will curl even in small depth, high feed rate machining. Improves chip evacuation when copying and up-facing. Stable machining with a balance of edge sharpness and strength. Prevents chip clogging at high feed rates. Good chip control at low feed rates. Stable machining with wide chip control range. Applicable Chipbreaker Range (D.O.C. Refers to Radial Depth of Cut) (Steel) .20 .16 .12 WQ / Corner-R(rg)=3/64\ WQ .004 .008 .012 .016 .020 .024 Feed Rate (ipr) .20 r .16 - (1/2", 5/8" I.C.: Steel) GP(lncluding DP) \PQ .004 .008 .012 .016 .020 Feed Rate (ipr) Standard PG. PS (HS) (1/2” I.C.: Steel) GT> V N GS .004 .008 .012 .016 .020 Feed Rate (ipr) (5/8” I.C.: Steel) 08 .016 .024 .032 .040 Feed Rate (ipr) B4 Kyocera
