15 Каталог KYOCERA 2016 Металлорежущий инструмент для токарной обработки на станках Стр.A7

Каталог KYOCERA 2016 Токарные резцы с пластинами Стр. A7 0015 ENG Lab2u

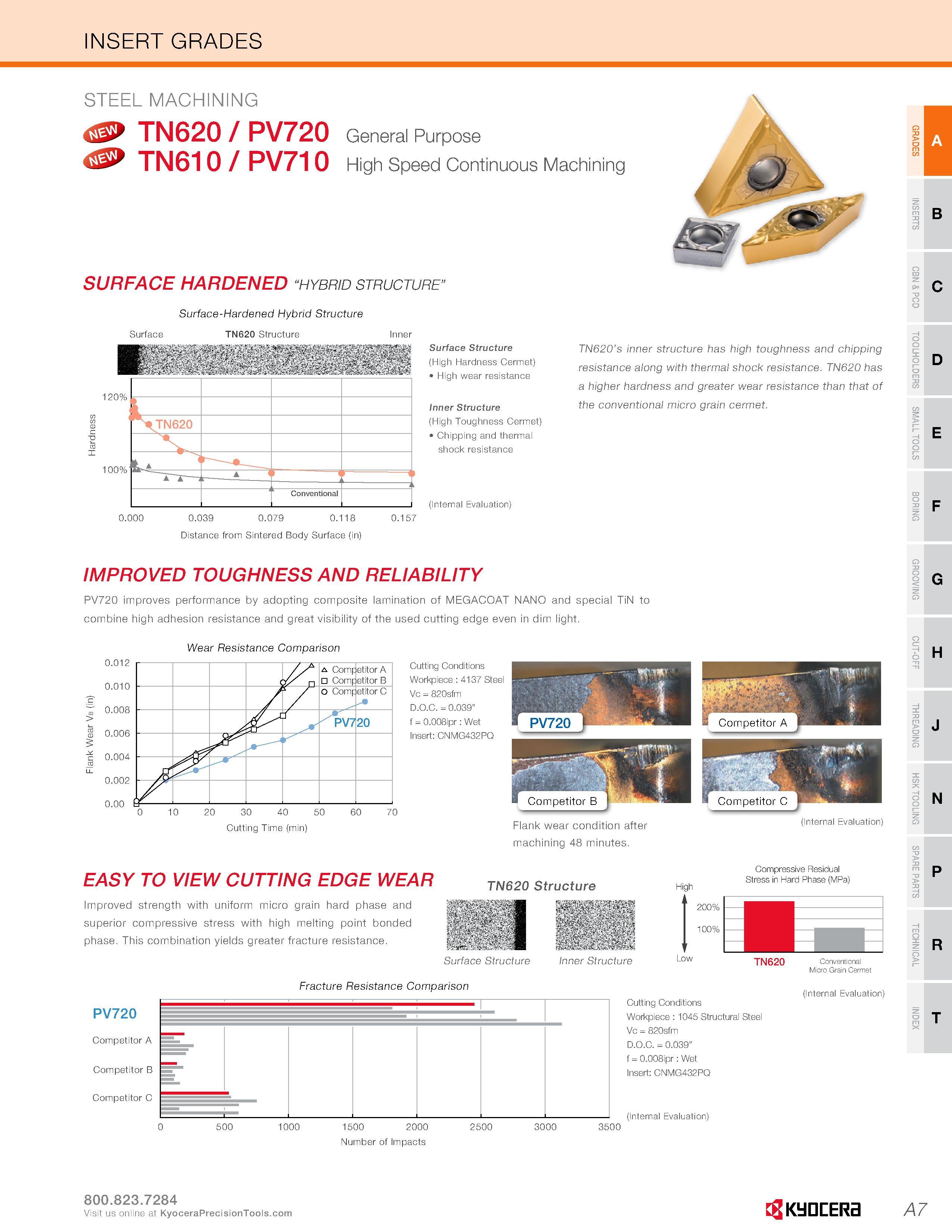

INSERT GRADES STEEL MACHINING < > TN620 / PV720 TN610 / PV710 General Purpose High Speed Continuous Machining SURFACE HARDENED “hybrid structure” Surface-Hardened Hybrid Structure Surface TN620 Structure Inner 120% I "yTN620 % I Conventional Surface Structure (High Hardness Cermet) High wear resistance Inner Structure (High Toughness Cermet) Chipping and thermal shock resistance (Internal Evaluation) 0.039 0.079 0.118 Distance from Sintered Body Surface (in) TN620’s inner structure has high toughness and chipping resistance along with thermal shock resistance. TN620 has a higher hardness and greater wear resistance than that of the conventional micro grain cermet. I B IMPROVED TOUGHNESS AND RELIABILITY PV720 improves performance by adopting composite lamination of MEGACOAT NANO and special TiN to combine high adhesion resistance and great visibility of the used cutting edge even in dim light. Wear Resistance Comparison Cutting Conditions Workpiece 4137 Steel Vc - 820sfm D.O.C. = 0.039” f = 0.008ipr: Wet Insert: CNMG432PQ Cutting Time (min) EASY TO VIEW CUTTING EDGE WEAR Improved strength with uniform micro grain hard phase and superior compressive stress with high melting point bonded phase. This combination yields greater fracture resistance. Flank wear condition after machining 48 minutes. TN620 Structure (Internal Evaluation) High Compressive Residual Stress in Hard Phase (MPa) Surface Structure Fracture Resistance Comparison Inner Structure TN620 1500 2000 Number of Impacts Cutting Conditions Workpiece 1045 Structural Steel Vc - 820sfm D.O.C. = 0.039” f = 0.008ipr: Wet Insert: CNMG432PQ (Internal Evaluation) Conventional Micro Grain Cermet (Internal Evaluation) H N rO xunrFR3 A 7 VisitusonlineatKyoceraPrecisionTools.com IXJULLIXU r\l
