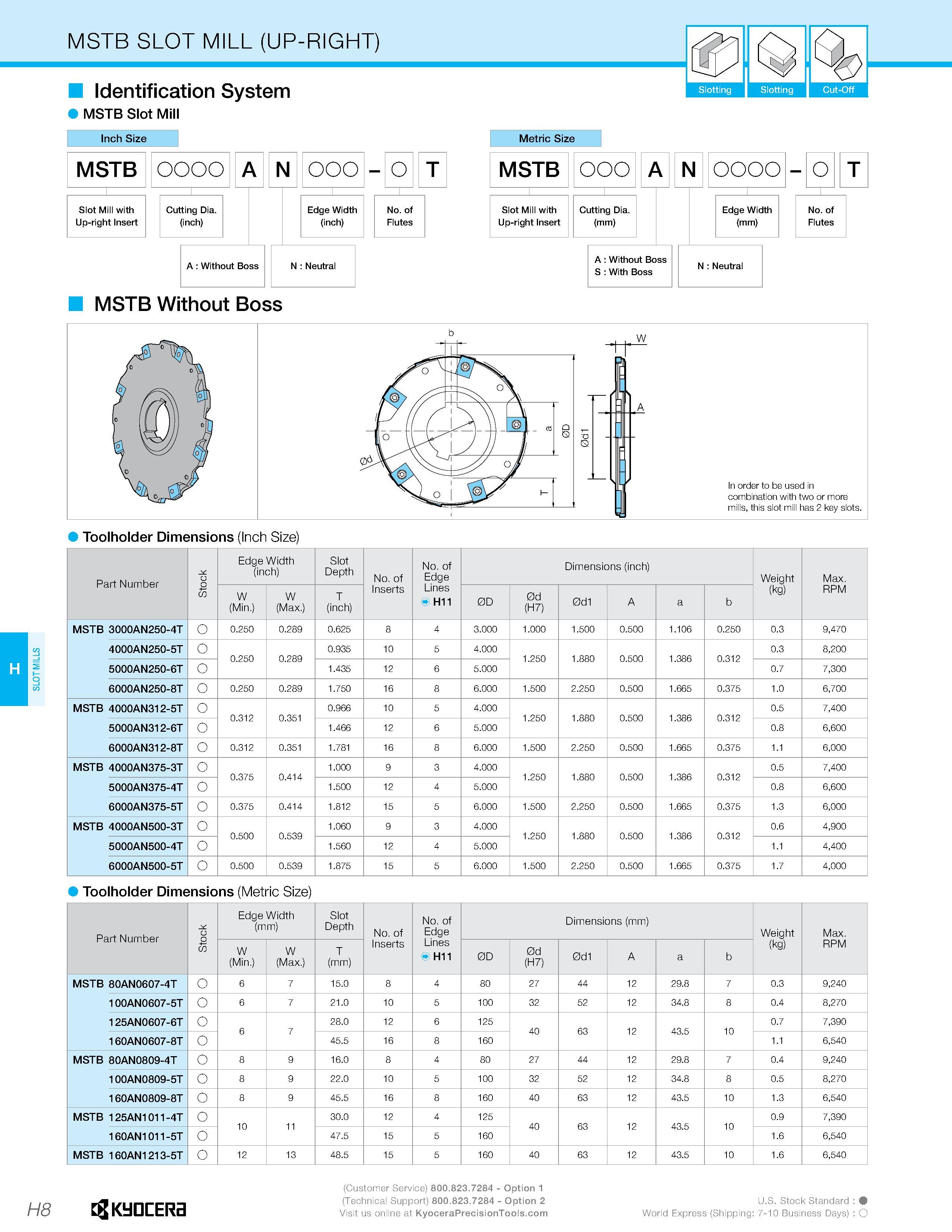

SLOT MILLS MSTB SLOT MILL (UP-RIGHT) Identification System MSTB Slot Mill Inch Size MSTB OOOO A Slot Mill with Up-right Insert Cutting Dia. (inch) N A Without Boss OOO - O T Edge Width (inch) No. of Flutes Metric Size MSTB OOO Slot Mill with Up-right Insert Cutting Dia. (mm) A A Without Boss S With Boss N OOOO Edge Width (mm) Slotting I Slotting I Cut-Off O T No. of Flutes N Neutral N Neutral MSTB Without Boss Toolholder Dimensions (Inch Size) Part Number o ot tS Edge Width (inch) Slot Depth No. of Inserts No. of Edge Lines H11 Dimensions (inch) Weight (kg) Max. RPM W (Min.) W (Max.) T (inch) 0D 0d (H7) 0d1 A a b MSTB 3000AN250-4T o 0.250 0.289 0.625 8 4 3.000 1.000 1.500 0.500 1.106 0.250 0.3 9,470 4000AN250-5T o 0.250 0.289 0.935 10 5 4.000 1.250 1.880 0.500 1.386 0.312 0.3 8,200 5000AN250-6T o 1.435 12 6 5.000 0.7 7,300 6000AN250-8T o 0.250 0.289 1.750 16 8 6.000 1.500 2.250 0.500 1.665 0.375 1.0 6,700 MSTB 4000AN312-5T o 0.312 0.351 0.966 10 5 4.000 1.250 1.880 0.500 1.386 0.312 0.5 7,400 5000AN312-6T o 1.466 12 6 5.000 0.8 6,600 6000AN312-8T o 0.312 0.351 1.781 16 8 6.000 1.500 2.250 0.500 1.665 0.375 1.1 6,000 MSTB 4000AN375-3T o 0.375 0.414 1.000 9 3 4.000 1.250 1.880 0.500 1.386 0.312 0.5 7,400 5000AN375-4T o 1.500 12 4 5.000 0.8 6,600 6000AN375-5T o 0.375 0.414 1.812 15 5 6.000 1.500 2.250 0.500 1.665 0.375 1.3 6,000 MSTB 4000AN500-3T o 0.500 0.539 1.060 9 3 4.000 1.250 1.880 0.500 1.386 0.312 0.6 4,900 5000AN500-4T o 1.560 12 4 5.000 1.1 4,400 6000AN500-5T o 0.500 0.539 1.875 15 5 6.000 1.500 2.250 0.500 1.665 0.375 1.7 4,000 Toolholder Dimensions (Metric Size) Part Number c ot tS Edge Width (mm) Slot Depth No. of Inserts No. of Edge Lines H11 Dimensions (mm) Weight (kg) Max. RPM W (Min.) W (Max.) T (mm) 0D 0d (H7) 0d1 A a b MSTB 80AN0607-4T o 6 7 15.0 8 4 80 27 44 12 29.8 7 0.3 9,240 100AN0607-5T o 6 7 21.0 10 5 100 32 52 12 34.8 8 0.4 8,270 125AN0607-6T o 6 7 28.0 12 6 125 40 63 12 43.5 10 0.7 7,390 160AN0607-8T o 45.5 16 8 160 1.1 6,540 MSTB 80AN0809-4T o 8 9 16.0 8 4 80 27 44 12 29.8 7 0.4 9,240 100AN0809-5T o 8 9 22.0 10 5 100 32 52 12 34.8 8 0.5 8,270 160AN0809-8T o 8 9 45.5 16 8 160 40 63 12 43.5 10 1.3 6,540 MSTB 125AN1011-4T o 10 11 30.0 12 4 125 40 63 12 43.5 10 0.9 7,390 160AN1011-5T o 47.5 15 5 160 1.6 6,540 MSTB 160AN1213-5T o 12 13 48.5 15 5 160 40 63 12 43.5 10 1.6 6,540 H8 Kyocera (Customer Service) - Option 1 (Technical Support) - Option 2 U.S. Stock Standard World Express (Shipping: 7-10 Business Days) C
