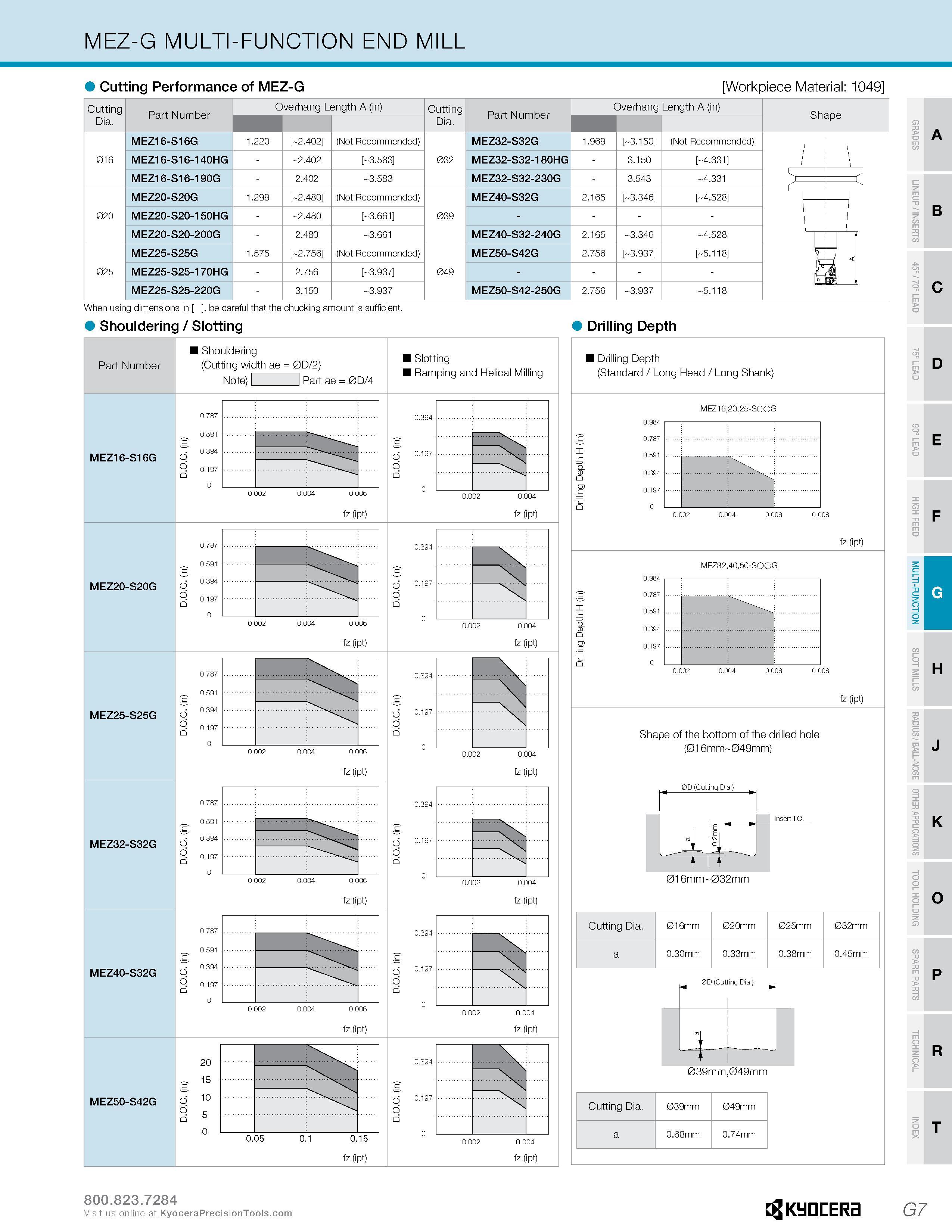

MEZ-G MULTI-FUNCTION END MILL Cutting Performance of MEZ-G Workpiece Material: 1049 Cutting Dia. Part Number Overhang Length A (in) Cutting Dia. Part Number Dverhang Length A (in) Shape 016 MEZ16-S16G 1.220 -2.402 (Not Recommended) 032 MEZ32-S32G 1.969 -3.150 (Not Recommended) MEZ16-S16-140HG - -2.402 -3.583 MEZ32-S32-180HG - 3.150 -4.331 MEZ16-S16-190G - 2.402 -3.583 MEZ32-S32-230G - 3.543 -4.331 020 MEZ20-S20G 1.299 -2.480 (Not Recommended) 039 MEZ40-S32G 2.165 -3.346 -4.528 MEZ20-S20-150HG - -2.480 -3.661 MEZ20-S20-200G - 2.480 -3.661 MEZ40-S32-240G 2.165 -3.346 -4.528 ty< 025 MEZ25-S25G 1.575 -2.756 (Not Recommended) 049 MEZ50-S42G 2.756 -3.937 -5.118 MEZ25-S25-170HG - 2.756 -3.937 MEZ25-S25-220G - 3.150 -3.937 MEZ50-S42-250G 2.756 -3.937 -5.118 When using dimensions in , be careful that the chucking amount is sufficient. Shouldering / Slotting Part Number I Shouldering (Cutting width ae = 0D/2) Note) Part ae = 0D/4 I Slotting I Ramping and Helical Milling MEZ16-S16G 0.002 0.004 fz(ipt) 0.002 0.004 fz (ipt) MEZ20-S20G fz(ipt) 0.002 0.004 fz (ipt) MEZ25-S25G fz(ipt) 3.002 0.004 fz (ipt) MEZ32-S32G 0.787 0.591 0.004 0.006 fz (ipt) LSJ 0.002 0.004 fz (ipt) MEZ40-S32G fz(ipt) fz (ipt) MEZ50-S42G fz(ipt) fz (ipt) Drilling Depth KymcERa G7 GRADES LINEUP/INSERTS 45a/70°LEAD 75° LEAD 90° LEAD HIGH FEED MULTI-FUNCTION SLOTMILLS RADIUS/BALL-NOSE OTHER APPUCATIONS TOOLHOLDING SPAREPARTS TECHNICAL INDEX
