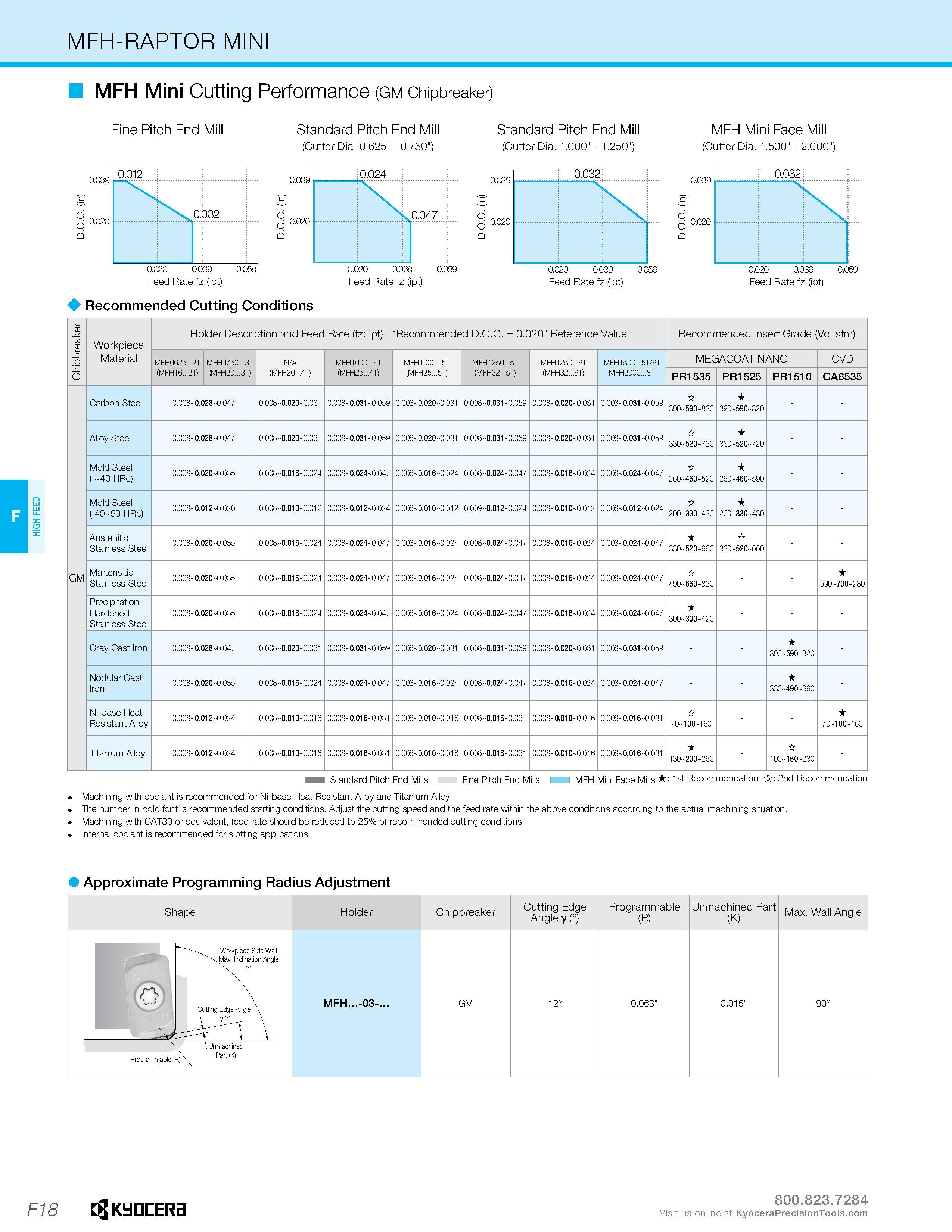

HIGH FEED MFH-RAPTOR MINI MFH Mini Cutting Performance (GM Chipbreaker) Fine Pitch End Mill Standard Pitch End Mill (Cutter Dia. 0.625" - 0.750") Feed Rate fz (ipt) Recommended Cutting Conditions Feed Rate fz (ipt) Standard Pitch End Mi (Cutter Dia. 1.000" - 1.250") Feed Rate fz (ipt) MFH Mini Face Mill (Cutter Dia. 1.500" - 2.000") Feed Rate fz (ipt) Chipbreaker Workpiece Material Holder Description and Feed Rate (fz: ipt) Recommended D.O.C. = 0.020" Reference Value Recommended Insert Grade (Vc: sfm) MFH0625...2T MFH0750...3T (MFH16...2T) (MFH20...3T) N/A (MFH20...4T) MFH1000...4T (MFH25...4T) MFH1000...5T (MFH25...5T) MFH1250...5T (MFH32...5T) MFH1250...6T (MFH32...6T) MFH1500...5T/6T MFH2000...8T MEGACOAT NANO CVD PR1535 PR1525 PR1510 CA6535 GM Carbon Steel 0.008-0.028-0.047 0.008-0.020-0.031 0.008-0.031-0.059 0.008-0.020-0.031 0.008-0.031-0.059 0.008-0.020-0.031 0.008-0.031-0.059 390-590-820 390-590-820 Alloy Steel 0.008-0.028-0.047 0.008-0.020-0.031 0.008-0.031-0.059 0.008-0.020-0.031 0.008-0.031-0.059 0.008-0.020-0.031 0.008-0.031-0.059 330-520-720 330-520-720 Mold Steel (-40 HRc) 0.008-0.020-0.035 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 260-460-590 260-460-590 Mold Steel (40-50 HRc) 0.008-0.012-0.020 0.008-0.010-0.012 0.008-0.012-0.024 0.008-0.010-0.012 0.009-0.012-0.024 0.008-0.010-0.012 0.008-0.012-0.024 200-330-430 200-330-430 Austen it ic Stainless Steel 0.008-0.020-0.035 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 330-520-660 330-520-660 Martensitic Stainless Steel 0.008-0.020-0.035 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 490-660-820 590-790-980 Precipitation Hardened Stainless Steel 0.008-0.020-0.035 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 300-390-490 Gray Cast Iron 0.008-0.028-0.047 0.008-0.020-0.031 0.008-0.031-0.059 0.008-0.020-0.031 0.008-0.031-0.059 0.008-0.020-0.031 0.008-0.031-0.059 390-590-820 Nodular Cast Iron 0.008-0.020-0.035 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 0.008-0.016-0.024 0.008-0.024-0.047 330-490-660 Ni-base Heat Resistant Alloy 0.008-0.012-0.024 0.008-0.010-0.016 0.008-0.016-0.031 0.008-0.010-0.016 0.008-0.016-0.031 0.008-0.010-0.016 0.008-0.016-0.031 70-100-160 70-100-160 Titanium Alloy 0.008-0.012-0.024 0.008-0.010-0.016 0.008-0.016-0.031 0.008-0.010-0.016 0.008-0.016-0.031 0.008-0.010-0.016 0.008-0.016-0.031 130-200-260 100-160-230 Standard Pitch End Mills I I Fine Pitch End Mills MFH Mini Face Mills 1st Recommendation 2nd Recommendation Machining with coolant is recommended for Ni-base Heat Resistant Alloy and Titanium Alloy The number in bold font is recommended starting conditions. Adjust the cutting speed and the feed rate within the above conditions according to the actual machining situation. Machining with CAT30 or equivalent, feed rate should be reduced to 25% of recommended cutting conditions Internal coolant is recommended for slotting applications Approximate Programming Radius Adjustment Shape Holder Chipbreaker Cutting Edge Angle y (°) Programmable (R) Unmachined Part (K) Max. Wall Angle Programmable Workpiece Side Wall \Max. Inclination Angle Cutting Edge Angle \ \ Y(°) \ \ \Un machined r\ Part MFH...-03-... GM 12° 0.063" 0.015" 90° F18 Kyocera
