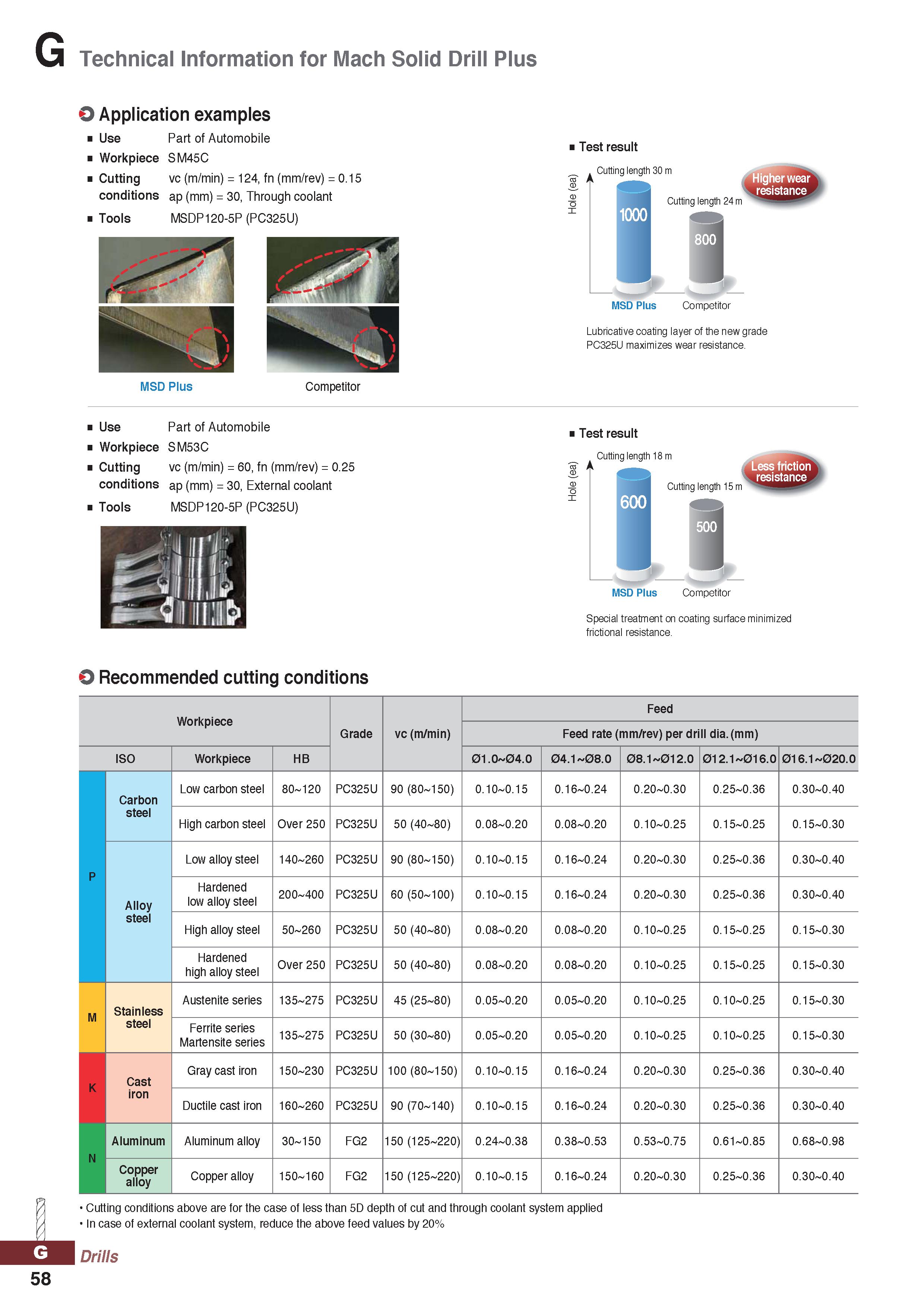

Technical Information for Mach Solid Drill Plus O Application examples Use Part of Automobile Workpiece SM45C Cutti ng vc (m/min) = 124, fn (mm/rev) = O.15 co nditio n s ap (mm) = 3O, Through coolant Tools MSDP12O-5P (PC325U) Test result Cutting length 30 m MSD Plus Competitor Lubricative coating layer of the new grade PC325U maximizes wear resistance. MSD Plus Competitor Use Part of Automobile Workpiece SM53C Cutti ng vc (m/min) = 6O, fn (mm/rev) = O.25 co nditio n s ap (mm) = 3O, External coolant Tools MSDP12O-5P (PC325U) Test result Cutting length 18 m ro A MSD Plus Competitor Special treatment on coating surface minimized frictional resistance. O Recommended cutting conditions Workpiece Feed Grade vc (m/min) Feed rate (mm/rev) per drill dia. (mm) ISO Workpiece HB 01.0 04.0 04.1 08.0 08.1 012.0 012.1 016.0 016.1 020.0 Carbon Low carbon steel 8O-12O PC325U 90 (8O-15O) O.1O-O.15 O.16-O.24 O.2O-O.3O O.25-O.36 O.3O-O.4O steel High carbon steel Over 25O PC325U 50 (4O-8O) O.O8-O.2O O.O8-O.2O O.1O-O.25 O.15-O.25 O.15-O.3O P Low alloy steel 14O-26O PC325U 90 (8O-15O) O.1O-O.15 O.16-O.24 O.2O-O.3O O.25-O.36 O.3O-O.4O Alloy Hardened low alloy steel 2OO-4OO PC325U 60 (5O-1OO) O.1O-O.15 O.16-O.24 O.2O-O.3O O.25-O.36 O.3O-O.4O steel High alloy steel 5O-26O PC325U 50 (4O-8O) O.O8-O.2O O.O8-O.2O O.1O-O.25 O.15-O.25 O.15-O.3O Hardened high alloy steel Over 25O PC325U 50 (4O-8O) O.O8-O.2O O.O8-O.2O O.1O-O.25 O.15-O.25 O.15-O.3O M Stainless Austenite series 135-275 PC325U 45 (25-8O) O.O5-O.2O O.O5-O.2O O.1O-O.25 O.1O-O.25 O.15-O.3O steel Ferrite series Martensite series 135-275 PC325U 50 (3O-8O) O.O5-O.2O O.O5-O.2O O.1O-O.25 O.1O-O.25 O.15-O.3O K Cast Gray cast iron 15O-23O PC325U 1OO (8O-15O) O.1O-O.15 O.16-O.24 O.2O-O.3O O.25-O.36 O.3O-O.4O iron Ductile cast iron 16O-26O PC325U 90 (7O-14O) O.1O-O.15 O.16-O.24 O.2O-O.3O O.25-O.36 O.3O-O.4O N Aluminum Aluminum alloy 3O-15O FG2 15O (125-22O) O.24-O.38 O.38-O.53 O.53-O.75 O.61-O.85 O.68-O.98 Copper alloy Copper alloy 15O-16O FG2 15O (125-22O) O.1O-O.15 O.16-O.24 O.2O-O.3O O.25-O.36 O.3O-O.4O .1 Cutting conditions above are for the case of less than 5D depth of cut and through coolant system applied In case of external coolant system, reduce the above feed values by 2O% Drills 58
