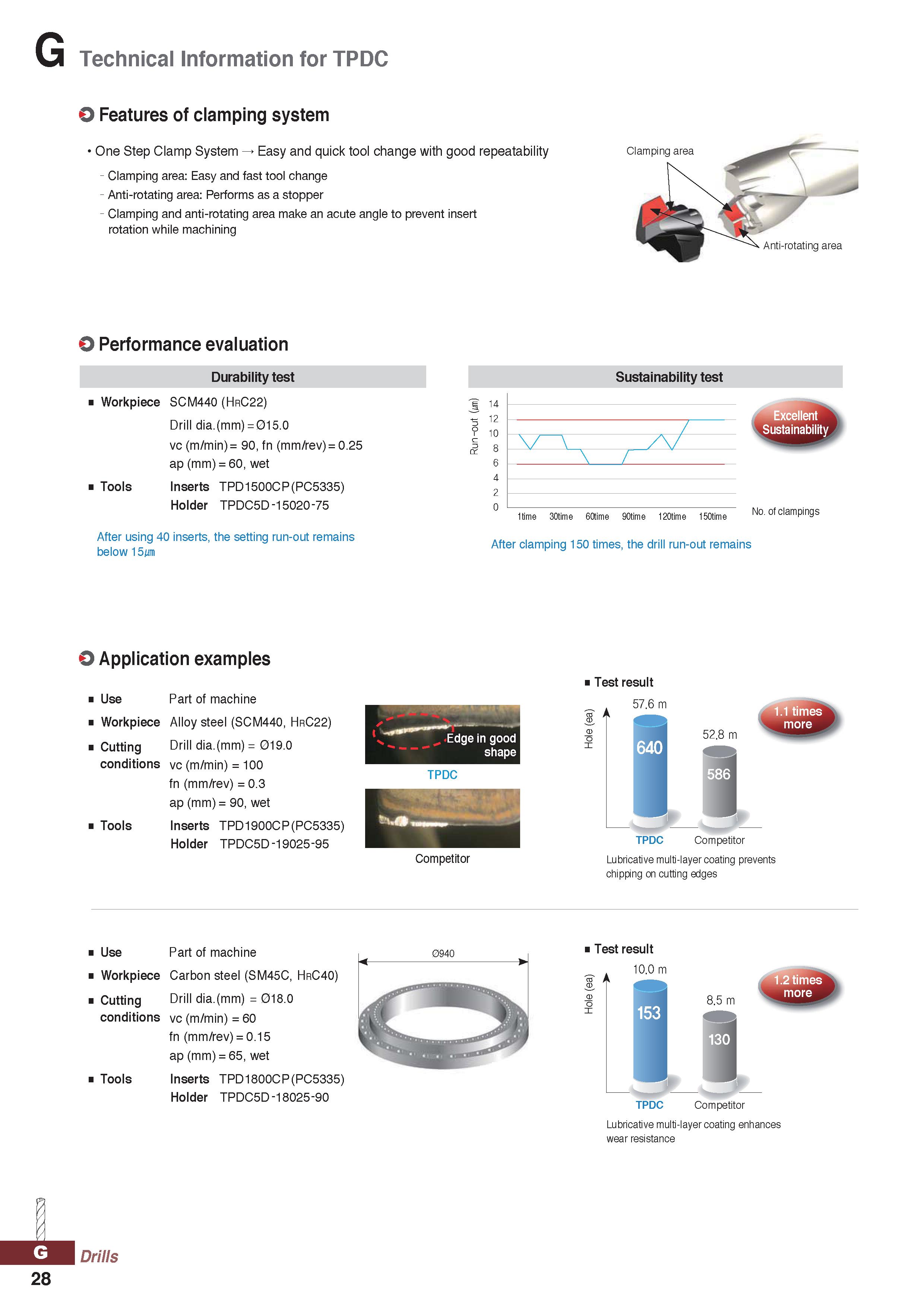

Technical Information for TPDC O Features of clamping system 0ne Step Clamp System Easy and quick tool change with good repeatability - Clamping area: Easy and fast tool change - Anti-rotating area: Performs as a stopper - Clamping and anti-rotating area make an acute angle to prevent insert rotation while machining Clamping area rotating area O Performance evaluation Durability test Workpiece SCM440 (HrC22) Drill dia.(mm) = 015.0 vc (m/min) = 90, fn (mm/rev) = 0.25 ap (mm) = 60, wet Tools Inserts TPD1500CP(PC5335) Holder TPDC5D-15020-75 After using 40 inserts, the setting run-out remains below 15 m Sustainability test 4 2 1time 30time 60time 90time 120time 150time No of clampings After clamping 150 times, the drill run-out remains O Application examples Use Part of machine Workpiece Alloy steel (SCM440, HrC22) Cutti ng Drill dia.(mm) =019.0 condit io n s vc (m/min) = 100 fn (mm/rev) = 0.3 ap (mm) = 90, wet Tools Inserts TPD1900CP(PC5335) Holder TPDC5D-19025-95 Competitor Test result 57.6 m TPDC Competitor Lubricative multi-layer coating prevents chipping on cutting edges Use Part of machine Workpiece Carbon steel (SM45C, HrC40) Cutti ng Drill dia.(mm) = 018.0 conditio ns vc (m/min) = 60 fn (mm/rev) = 0.15 ap (mm) = 65, wet Tools Inserts TPD1800CP(PC5335) Holder TPDC5D-18025-90 0940 Test result 10.0 m TPDC Competitor Lubricative multi-layer coating enhances wear resistance J. Drills 28
