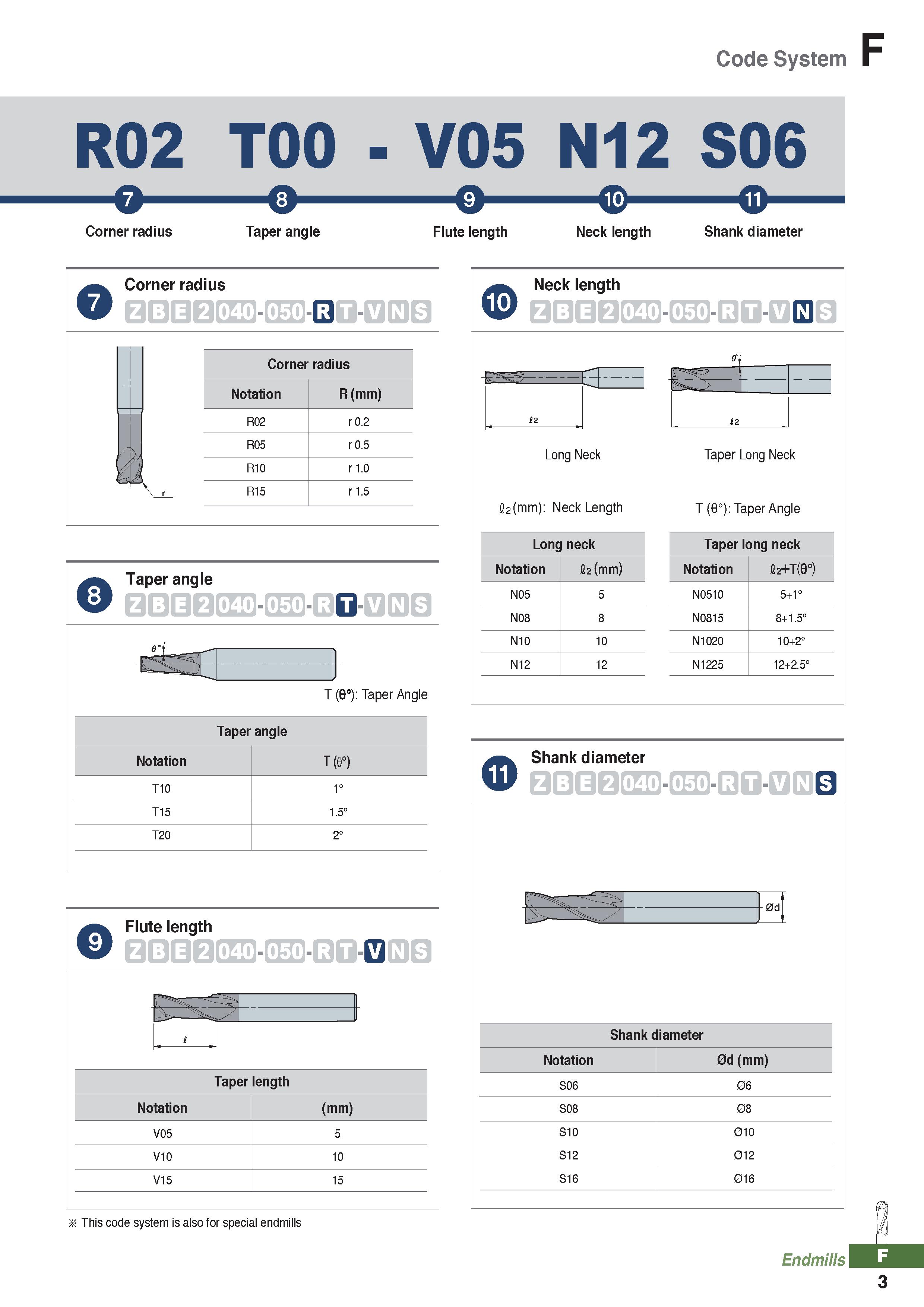

Code System R02 T00 - V05 N12 S06 Corner radius Taper angle Flute length Neck length Shank diameter Corner radius ZB 040- QO-E Corner radius Notation R (mm) R02 r 0.2 R05 r 0.5 R10 r 1.0 R15 r 1.5 Taper angle ZflSi 040-050 RiTMNis T (0°): Taper Angle Taper angle Notation T (6°) T10 1° T15 1.5° T20 2° O Flute length asst 040-050 R T IvTnIs Taper length Notation (mm) V05 5 V10 10 V15 15 This code system is also for special endmills Neck length J°J zIbIeM 040B050 Long Neck I (mm): Neck Length Taper Long Neck T (0°): Taper Angle Long neck Taper long neck Notation 12 (mm) Notation fl2+T(00) N05 5 N0510 5+1° N08 8 N0815 8+1.5° N10 10 N1020 10+2° N12 12 N1225 12+2.5° 53 Shank diameter asiS 040-050 IaIT-ivins Shank diameter Notation 0d (mm) S06 06 S08 08 S10 010 S12 012 S16 016 Endmills J. 3
