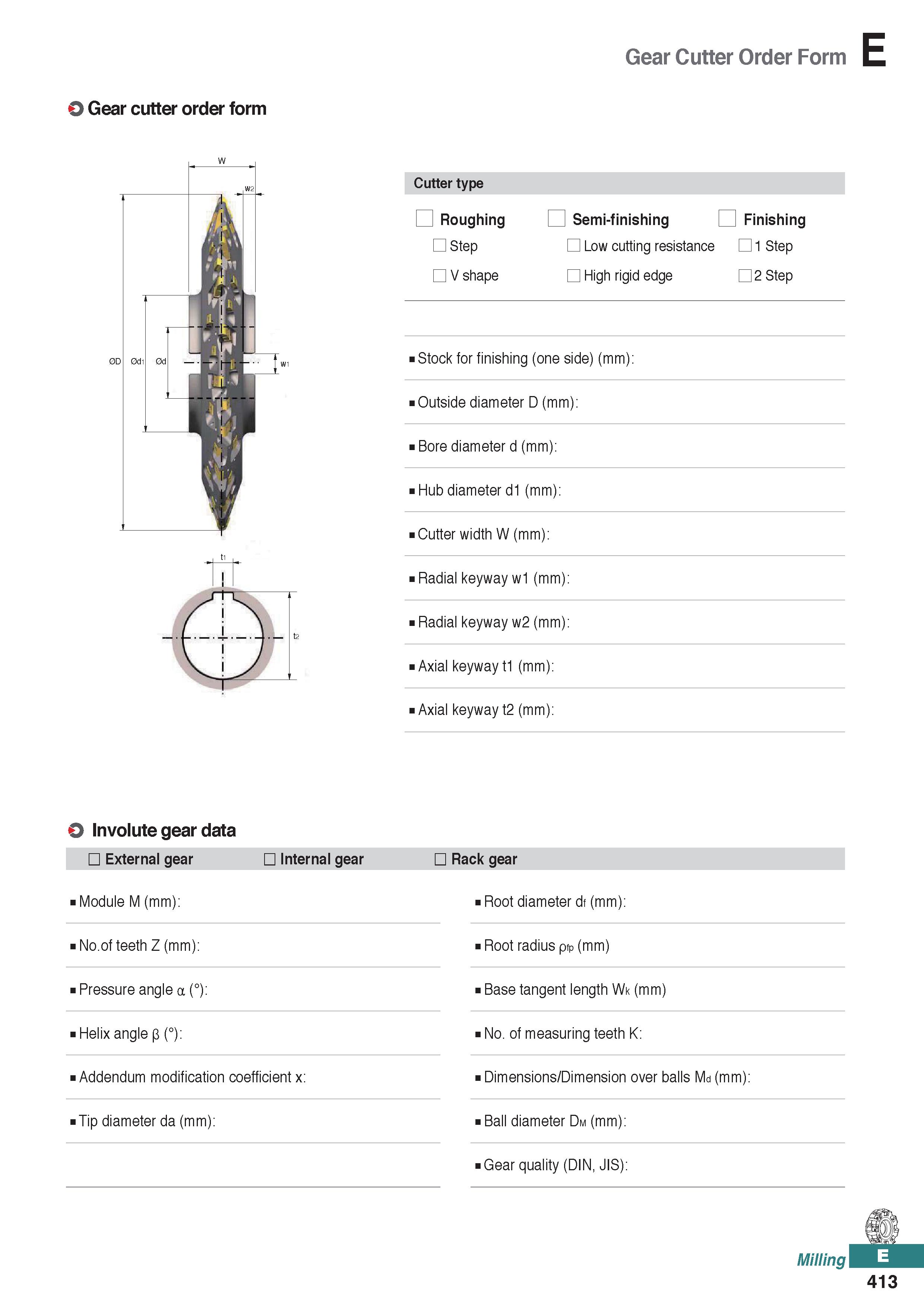

Gear Cutter Order Form O Gear cutter order form Cutter type EH Roughing EEI Semi-finishing EEI Finishing Step Low cutting resistance 1 Step V shape High rigid edge 2 Step i Stock for finishing (one side) (mm): i Outside diameter D (mm): i Bore diameter d (mm): i Hub diameter d1 (mm): i Cutter width W (mm): i Radial keyway w1 (mm): i Radial keyway w2 (mm): i Axial keyway t1 (mm): i Axial keyway t2 (mm): O Involute gear data External gear Internal gear Rack gear Module M (mm): Root diameter df (mm): No.of teeth Z (mm): Root radius ptP (mm) Pressure angle a (°): Base tangent length Wk (mm) Helix angle p (°): No. of measuring teeth K: Addendum modification coefficient x: Dimensions/Dimension over balls Md (mm): Tip diameter da (mm): Ball diameter Dm (mm): Gear quality (DIN, JIS): Milling 413
