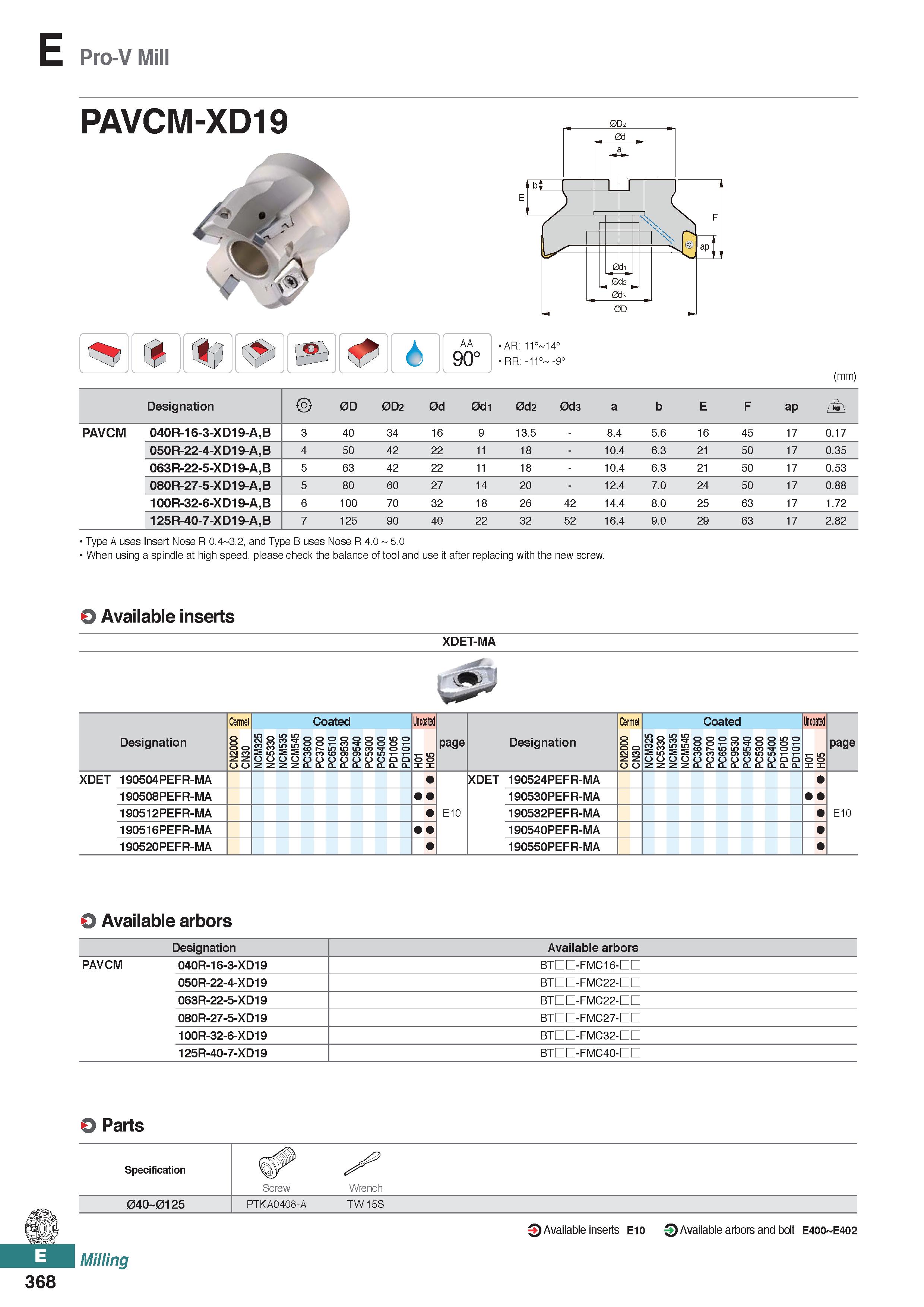

E Pro-V Mill PAVCM-XD19 % li' AA 90° AR: 11 ° 14° RR: -11° -9' (mm) Designation 0D 0D2 0d 0d1 0d2 0d3 a b E F ap r+\ PAVCM 040R-16-3-XD19-A,B 3 40 34 16 9 13.5 - 8.4 5.6 16 45 17 0.17 050R-22-4-XD19-A,B 4 50 42 22 11 18 - 10.4 6.3 21 50 17 0.35 063R-22-5-XD19-A,B 5 63 42 22 11 18 - 10.4 6.3 21 50 17 0.53 080R-27-5-XD19-A,B 5 80 60 27 14 20 - 12.4 7.0 24 50 17 0.88 100R-32-6-XD19-A,B 6 100 70 32 18 26 42 14.4 8.0 25 63 17 1.72 125R-40-7-XD19-A,B 7 125 90 40 22 32 52 16.4 9.0 29 63 17 2.82 Type A uses Insert Nose R 0.4 3.2, and Type B uses Nose R 4.0 5.0 When using a spindle at high speed, please check the balance of tool and use it after replacing with the new screw. 0D O Available inserts XDET-MA Cermet Coated Uncoated Cermet Coated Uncoated Designation CN2000 CN30 cGoJGSfi ooomo SmSScocotoOTOTinmi 1 NCCCCCCCCCCCD ZZZZQ Q Q Q Q Q Q Q Q -i- m D0 II page Designation CN2000 CN30 cGoJGSfi ooomo SmSScocotDOTOTinmi i OOOQQ ZZZZQ.Q.Q.Q.Q.Q.Q.1Q. -i- m 0 II page XDET 190504PEFR-MA XDET 190524PEFR-MA 190508PEFR-MA 190530PEFR-MA 190512PEFR-MA E10 190532PEFR-MA E10 190516PEFR-MA 190540PEFR-MA 190520PEFR-MA 190550PEFR-MA O Available arbors Designation Available arbors PAVCM 040R-16-3-XD19 BTDD-FMC16-nn 050R-22-4-XD19 BTDD-FMC22-nn 063R-22-5-XD19 BTDD-FMC22-nn 080R-27-5-XD19 BTDD-FMC27-nn 100R-32-6-XD19 BTDD-FMC32-nn 125R-40-7-XD19 BTDD-FMC40-nn O Parts Specification Screw Wrench 04O 0125 PTKA0408-A TW 15S Milling Q Available inserts E10 O Available arbors and bolt E400 E402 368
