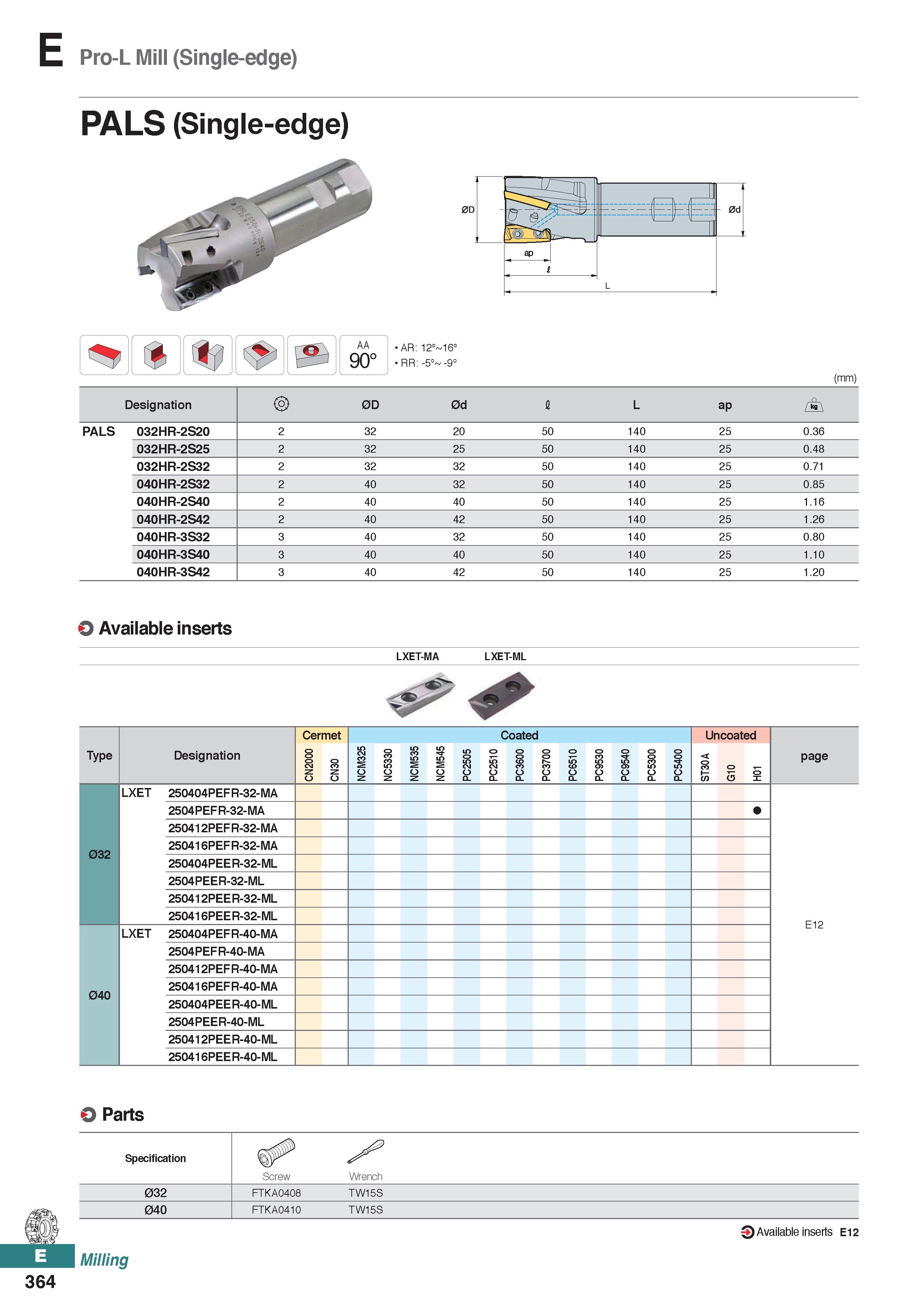

Pro-L Mill (Single-edge) PALS (Single-edge) AA 90° AR: 12° 16° RR: -5° -9° (mm) Designation 2> 0D 0d I L ap r \ PALS 032HR-2S20 2 32 20 50 140 25 0.36 032HR-2S25 2 32 25 50 140 25 0.48 032HR-2S32 2 32 32 50 140 25 0.71 040HR-2S32 2 40 32 50 140 25 0.85 040HR-2S40 2 40 40 50 140 25 1.16 040HR-2S42 2 40 42 50 140 25 1.26 040HR-3S32 3 40 32 50 140 25 0.80 040HR-3S40 3 40 40 50 140 25 1.10 040HR-3S42 3 40 42 50 140 25 1.20 O Available inserts LXET-MA LXET-ML Cermet Coated Uncoated Type Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page LXET 250404PEFR-32-MA 2504PEFR-32-MA 250412PEFR-32-MA 032 250416PEFR-32-MA 250404PEER-32-ML 2504PEER-32-ML 250412PEER-32-ML 250416PEER-32-ML E12 LXET 250404PEFR-40-MA 2504PEFR-40-MA 250412PEFR-40-MA 040 250416PEFR-40-MA 250404PEER-40-ML 2504PEER-40-ML 250412PEER-40-ML 250416PEER-40-ML O Parts Specification Screw Wrench 032 FTKA0408 TW15S 04O FTKA0410 TW15S Milling 0 Available inserts E12 364
