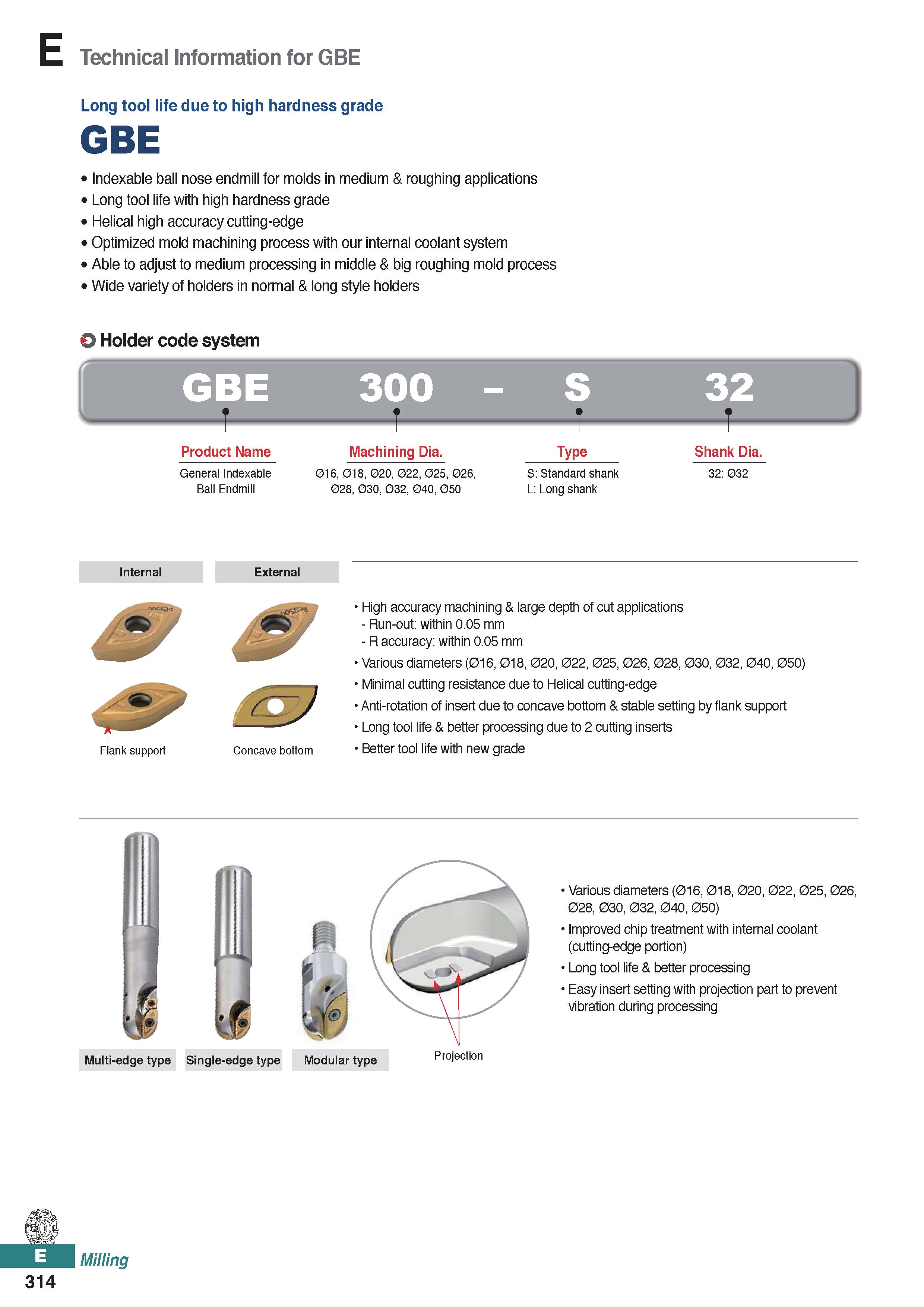

Technical Information for GBE Long tool life due to high hardness grade GBE Indexable ball nose endmill for molds in medium & roughing applications Long tool life with high hardness grade Helical high accuracy cutting-edge Optimized mold machining process with our internal coolant system Able to adjust to medium processing in middle & big roughing mold process Wide variety of holders in normal & long style holders O Holder code system GBE 300 - S 32 Product Name Machining Dia. Type Shank Dia. General Indexable 016, 018, 020, 022, 025, 026, S: Standard shank 32: 032 Ball Endmill 028, 030, 032, 040, 050 L: Long shank Internal External Flank support Concave bottom High accuracy machining & large depth of cut applications - Run-out: within 0.05 mm - R accuracy: within 0.05 mm Various diameters (016, 018, 020, 022, 025, 026, 028, 030, 032, 040, 050) Minimal cutting resistance due to Helical cutting-edge Anti-rotation of insert due to concave bottom & stable setting by flank support Long tool life & better processing due to 2 cutting inserts Better tool life with new grade Various diameters (016, 018, 020, 022, 025, 026, 028, 030, 032, 040, 050) Improved chip treatment with internal coolant (cutting-edge portion) Long tool life & better processing Easy insert setting with projection part to prevent vibration during processing Multi-edge type Single-edge type Modular type Projection 314
