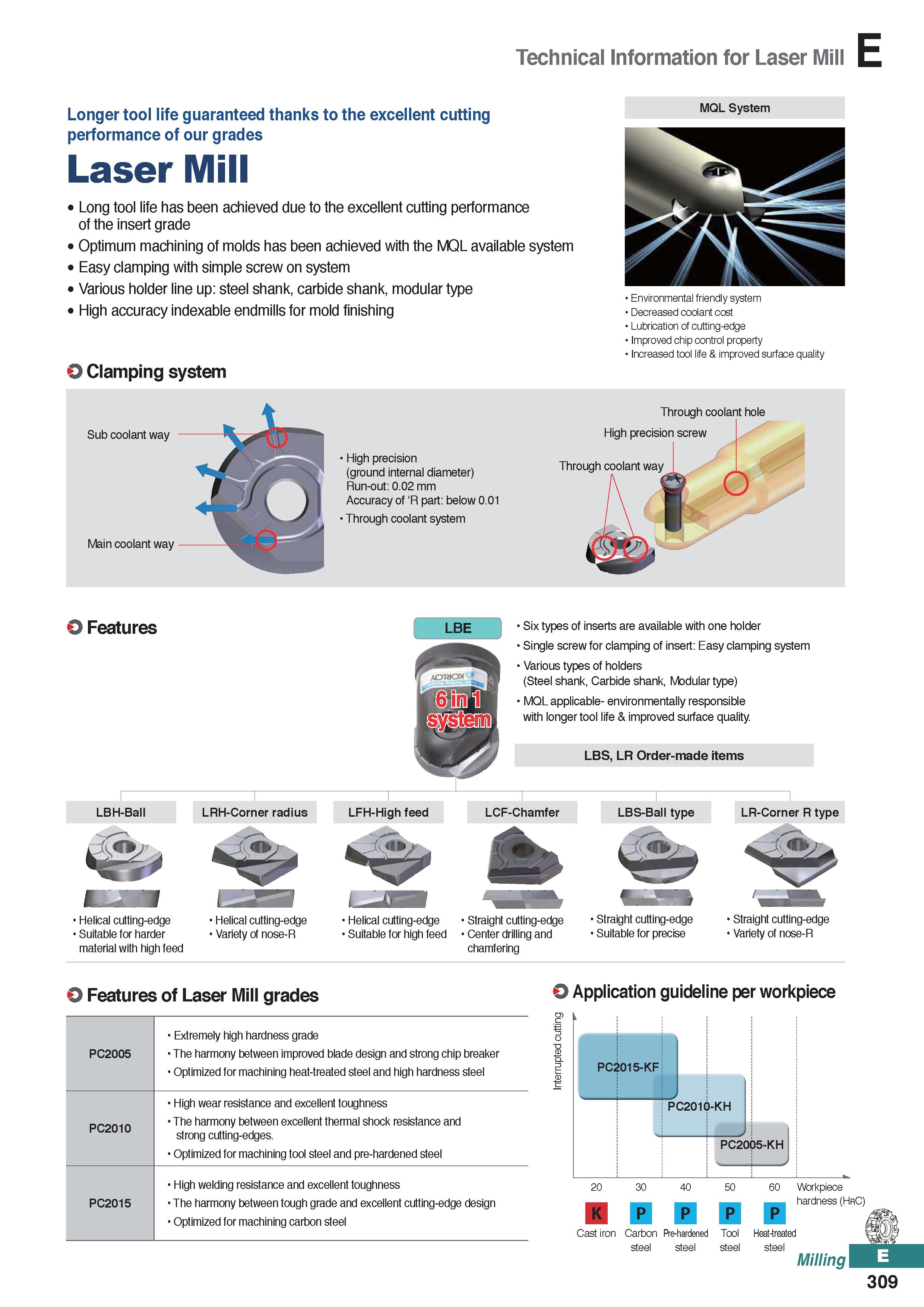

Technical Information for Laser Mill Longer tool life guaranteed thanks to the excellent cutting performance of our grades Laser Mill Long tool life has been achieved due to the excellent cutting performance of the insert grade Optimum machining of molds has been achieved with the MQL available system Easy clamping with simple screw on system Various holder line up: steel shank, carbide shank, modular type High accuracy indexable endmills for mold finishing O Clamping system MQL System Environmental friendly system Decreased coolant cost Lubrication of cutting-edge Improved chip control property Increased tool life & improved surface quality 0 Features LBE Six types of inserts are available with one holder Single screw for clamping of insert: Easy clamping system Various types of holders (Steel shank, Carbide shank, Modular type) MQL applicable- environmentally responsible with longer tool life & improved surface quality. LBS, LR Order-made items LBH-Ball LRH-Corner radius LFH-High feed LCF-Chamfer LBS-Ball type LR-Corner R type Helical cutting-edge Suitable for harder material with high feed Helical cutting-edge Variety of nose-R Helical cutting-edge Straight cutting-edge Suitable for high feed Center drilling and chamfering Straight cutting-edge Suitable for precise Straight cutting-edge Variety of nose-R O Features of Laser Mill grades PC2005 Extremely high hardness grade The harmony between improved blade design and strong chip breaker Optimized for machining heat-treated steel and high hardness steel PC2010 High wear resistance and excellent toughness The harmony between excellent thermal shock resistance and strong cutting-edges. Optimized for machining tool steel and pre-hardened steel PC2015 High welding resistance and excellent toughness The harmony between tough grade and excellent cutting-edge design Optimized for machining carbon steel 0 Application guideline per workpiece PC2015-KF PC2010-KH ; PC2005-KH 20 K 30 40 50 60 P P P P Workpiece hardness (HRC) Cast iron Carbon Pre-hardened Tool Heat-treated steel steel steel steel Milling 309
