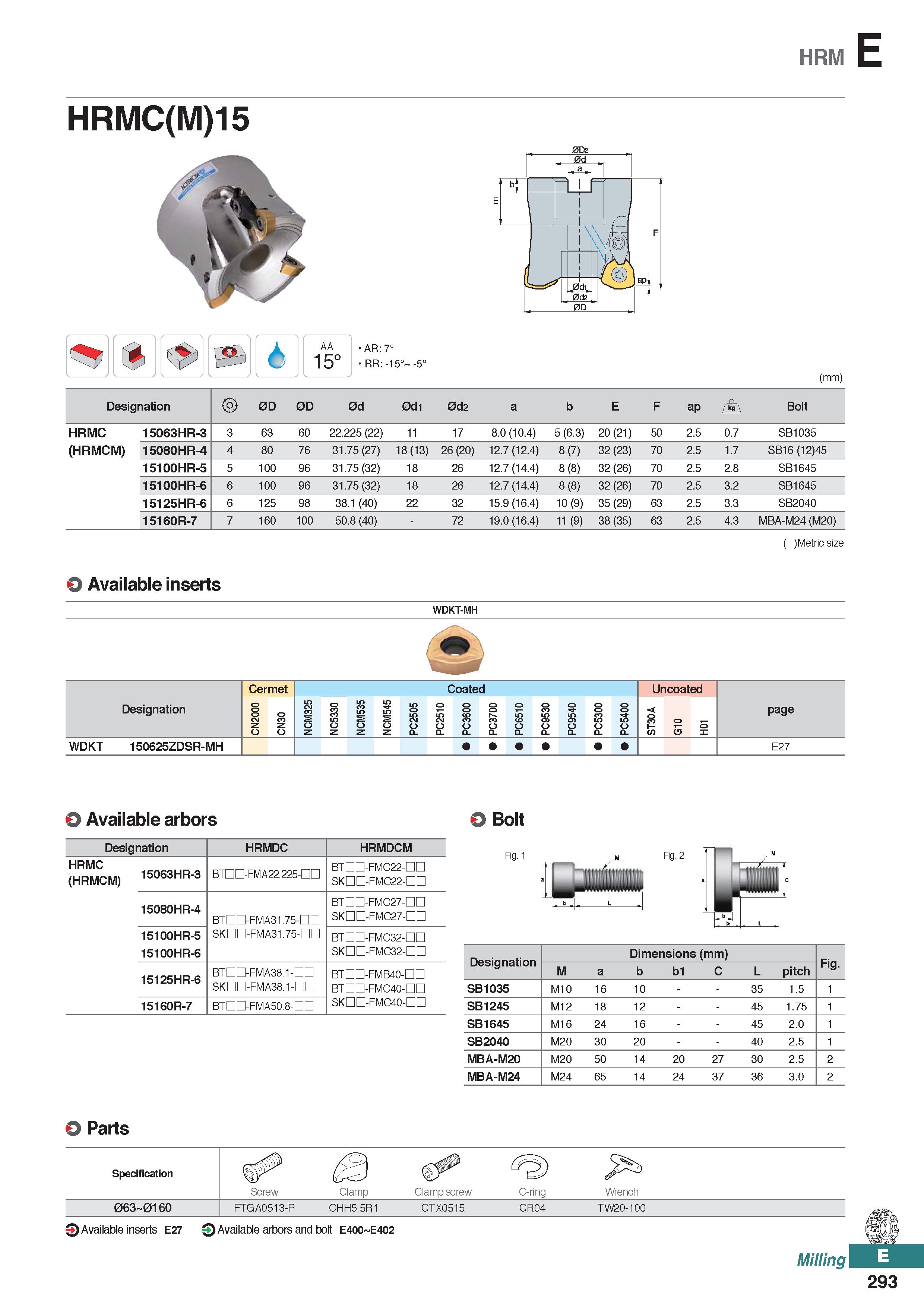

751 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E293

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E293 0751 Lab2u

HRM E HRMC(M)15 AA 15° AR:7° RR:-15° -5° (mm) Designation 0D 0D 0d 0d1 0d2 a b E F ap f \ Bolt HRMC 15063HR-3 3 63 60 22.225 (22) 11 17 8.0 (10.4) 5 (6.3) 20 (21) 50 2.5 0.7 SB1035 (HRMCM) 15080HR-4 4 80 76 31.75 (27) 18 (13) 26 (20) 12.7 (12.4) 8 (7) 32 (23) 70 2.5 1.7 SB16 (12)45 15100HR-5 5 100 96 31.75 (32) 18 26 12.7 (14.4) 8 (8) 32 (26) 70 2.5 2.8 SB1645 15100HR-6 6 100 96 31.75 (32) 18 26 12.7 (14.4) 8 (8) 32 (26) 70 2.5 3.2 SB1645 15125HR-6 6 125 98 38.1 (40) 22 32 15.9 (16.4) 10 (9) 35 (29) 63 2.5 3.3 SB2040 15160R-7 7 160 100 50.8 (40) - 72 19.0 (16.4) 11 (9) 38 (35) 63 2.5 4.3 MBA-M24 (M20) ( )Metric size O Available inserts WDKT-MH Cermet Coated Uncoated Designation CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 ST30A G10 H01 page WDKT 150625ZDSR-MH H E27 O Available arbors Designation HRMDC HRMDCM HRMC (HRMCM) 15063HR-3 BTDD-FMA22.225-nn BTHO-FMC22-HO SKHD-FMC22-HD 15080HR-4 BTHO-FMA31.75-HO SKHO-FMA31.75-CO BTDD-FMC27-nn SKHD-FMC27-HD 15100HR-5 15100HR-6 BTDD-FMC32-nn SKHD-FMC32-CD 15125HR-6 BTm-FMA38.1-DD SKHO-FMA38.1-HO BTDD-FMB40-nn BTDD-FMC40-nn SKHD-FMC40-CD 15160R-7 BTm-FMA50.8-DD O Bolt Fig. 1 Fig. 2 Designation Dimensions (mm) Fig. M a b b1 C L pitch SB1035 M10 16 10 35 1.5 1 SB1245 M12 18 12 45 1.75 1 SB1645 M16 24 16 45 2.0 1 SB2040 M20 30 20 40 2.5 1 MBA-M20 M20 50 14 20 27 30 2.5 2 MBA-M24 M24 65 14 24 37 36 3.0 2 O Parts Specification Screw Clamp Clamp screw C-ring Wrench 063 016O FTGA0513-P CHH5.5R1 CTX0515 CR04 TW20-100 Q Available inserts E27 O Available arbors and bolt E400 E402 Milling 293
