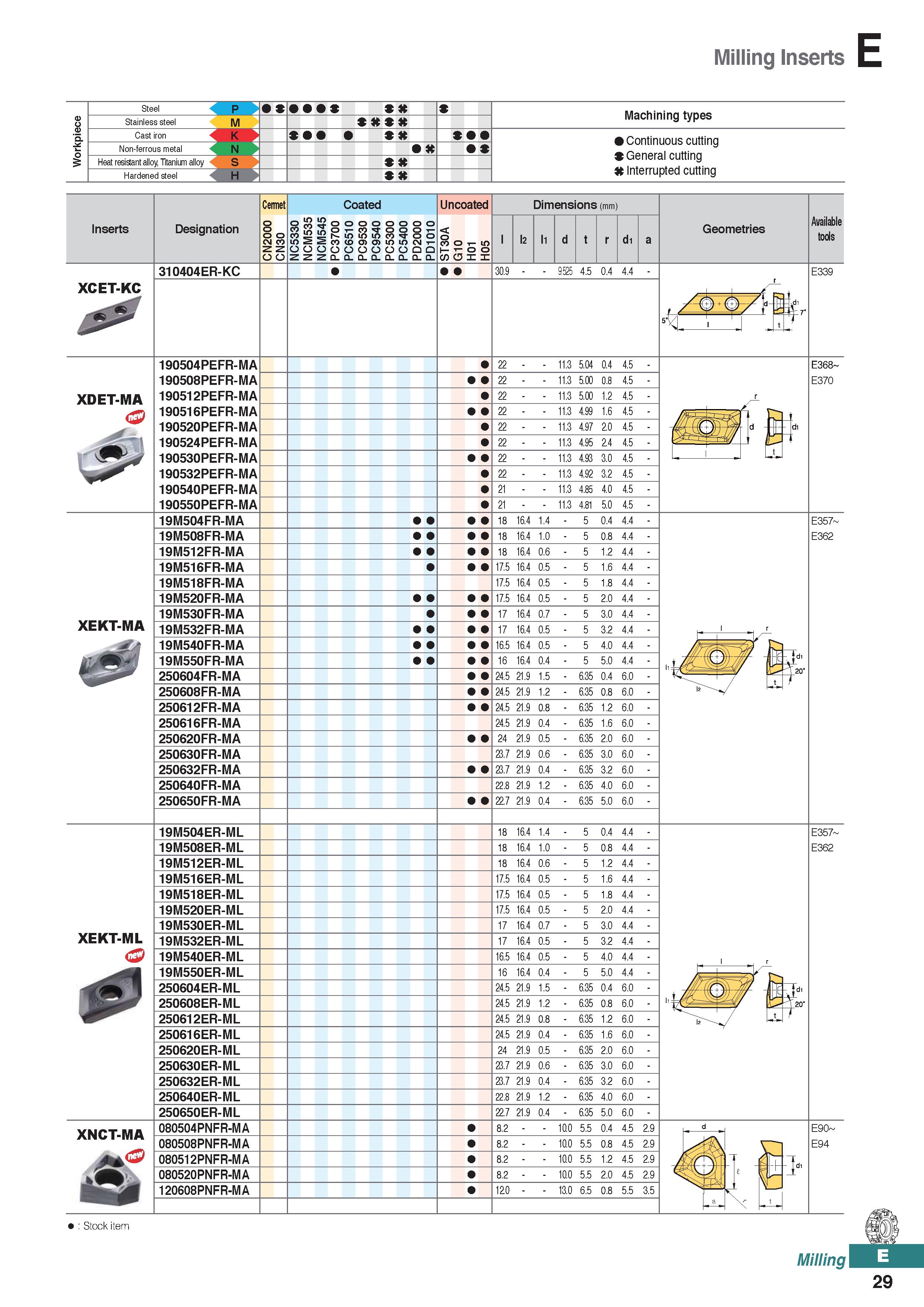

487 Каталог KORLOY 2020 Инструмент и оснастка для станков по металлу Стр.E29

Каталог KORLOY 2020 Инструмент для станков по металлу Стр. E29 0487 Lab2u

Milling Inserts P M Non-ferrous metal K N Heat resistant alloy, Titanium alloy Hardened steel Machining types Continuous cutting General cutting Interrupted cutting Cermet Coated Uncoated Dimensions (mm) Designation CN2000 00 CO N C oSJg COX,jtOi-CO OOOi-COigigh-LOLOLOCO OO 1022(0(0 0)0)10 102 NCCCCCCCCCD 2ZZHQ.1Q.1Q.1Q. ST30A 30 ST o X lO 0 X I I2 I1 d t r d1 a 310404ER-KC 30.9 9.525 4.5 0.4 4.4 190504PEFR-MA 22 11.3 5.04 0.4 4.5 190508PEFR-MA 22 11.3 5.00 0.8 4.5 190512PEFR-MA 22 11.3 5.00 1.2 4.5 190516PEFR-MA 22 11.3 4.99 1.6 4.5 190520PEFR-MA 22 11.3 4.97 2.0 4.5 190524PEFR-MA 22 11.3 4.95 2.4 4.5 190530PEFR-MA 22 11.3 4.93 3.0 4.5 190532PEFR-MA 22 11.3 4.92 3.2 4.5 190540PEFR-MA 21 11.3 4.85 4.0 4.5 190550PEFR-MA 21 11.3 4.81 5.0 4.5 19M504FR-MA 18 16.4 1.4 5 0.4 4.4 19M508FR-MA 18 16.4 1.0 5 0.8 4.4 19M512FR-MA 18 16.4 0.6 5 1.2 4.4 19M516FR-MA 17.5 16.4 0.5 5 1.6 4.4 19M518FR-MA 17.5 16.4 0.5 5 1.8 4.4 19M520FR-MA 17.5 16.4 0.5 5 2.0 4.4 19M530FR-MA 17 16.4 0.7 5 3.0 4.4 19M532FR-MA 17 16.4 0.5 5 3.2 4.4 19M540FR-MA 16.5 16.4 0.5 5 4.0 4.4 19M550FR-MA 16 16.4 0.4 5 5.0 4.4 250604FR-MA 24.5 21.9 1.5 6.35 0.4 6.0 250608FR-MA 24.5 21.9 1.2 6.35 0.8 6.0 250612FR-MA 24.5 21.9 0.8 6.35 1.2 6.0 250616FR-MA 24.5 21.9 0.4 6.35 1.6 6.0 250620FR-MA 24 21.9 0.5 6.35 2.0 6.0 250630FR-MA 23.7 21.9 0.6 6.35 3.0 6.0 250632FR-MA 23.7 21.9 0.4 6.35 3.2 6.0 250640FR-MA 22.8 21.9 1.2 6.35 4.0 6.0 250650FR-MA 22.7 21.9 0.4 6.35 5.0 6.0 19M504ER-ML 18 16.4 1.4 5 0.4 4.4 19M508ER-ML 18 16.4 1.0 5 0.8 4.4 19M512ER-ML 18 16.4 0.6 5 1.2 4.4 19M516ER-ML 17.5 16.4 0.5 5 1.6 4.4 19M518ER-ML 17.5 16.4 0.5 5 1.8 4.4 19M520ER-ML 17.5 16.4 0.5 5 2.0 4.4 19M530ER-ML 17 16.4 0.7 5 3.0 4.4 19M532ER-ML 17 16.4 0.5 5 3.2 4.4 19M540ER-ML 16.5 16.4 0.5 5 4.0 4.4 19M550ER-ML 16 16.4 0.4 5 5.0 4.4 250604ER-ML 24.5 21.9 1.5 6.35 0.4 6.0 250608ER-ML 24.5 21.9 1.2 6.35 0.8 6.0 250612ER-ML 24.5 21.9 0.8 6.35 1.2 6.0 250616ER-ML 24.5 21.9 0.4 6.35 1.6 6.0 250620ER-ML 24 21.9 0.5 6.35 2.0 6.0 250630ER-ML 23.7 21.9 0.6 6.35 3.0 6.0 250632ER-ML 23.7 21.9 0.4 6.35 3.2 6.0 250640ER-ML 22.8 21.9 1.2 6.35 4.0 6.0 250650ER-ML 22.7 21.9 0.4 6.35 5.0 6.0 080504PNFR-MA 8.2 10.0 5.5 0.4 4.5 2.9 080508PNFR-MA 8.2 10.0 5.5 0.8 4.5 2.9 080512PNFR-MA 8.2 10.0 5.5 1.2 4.5 2.9 080520PNFR-MA 8.2 10.0 5.5 2.0 4.5 2.9 120608PNFR-MA 120 13.0 6.5 0.8 5.5 3.5 Inserts Geometries Available XCET-KC E339 XDET-MA s> E368 E370 XEKT-MA E357 E362 XEKT-ML Q 0 E357 E362 XNCT-MA E90 E94 : Stock item Milling 29 Steel Stainless steel Cast iron
