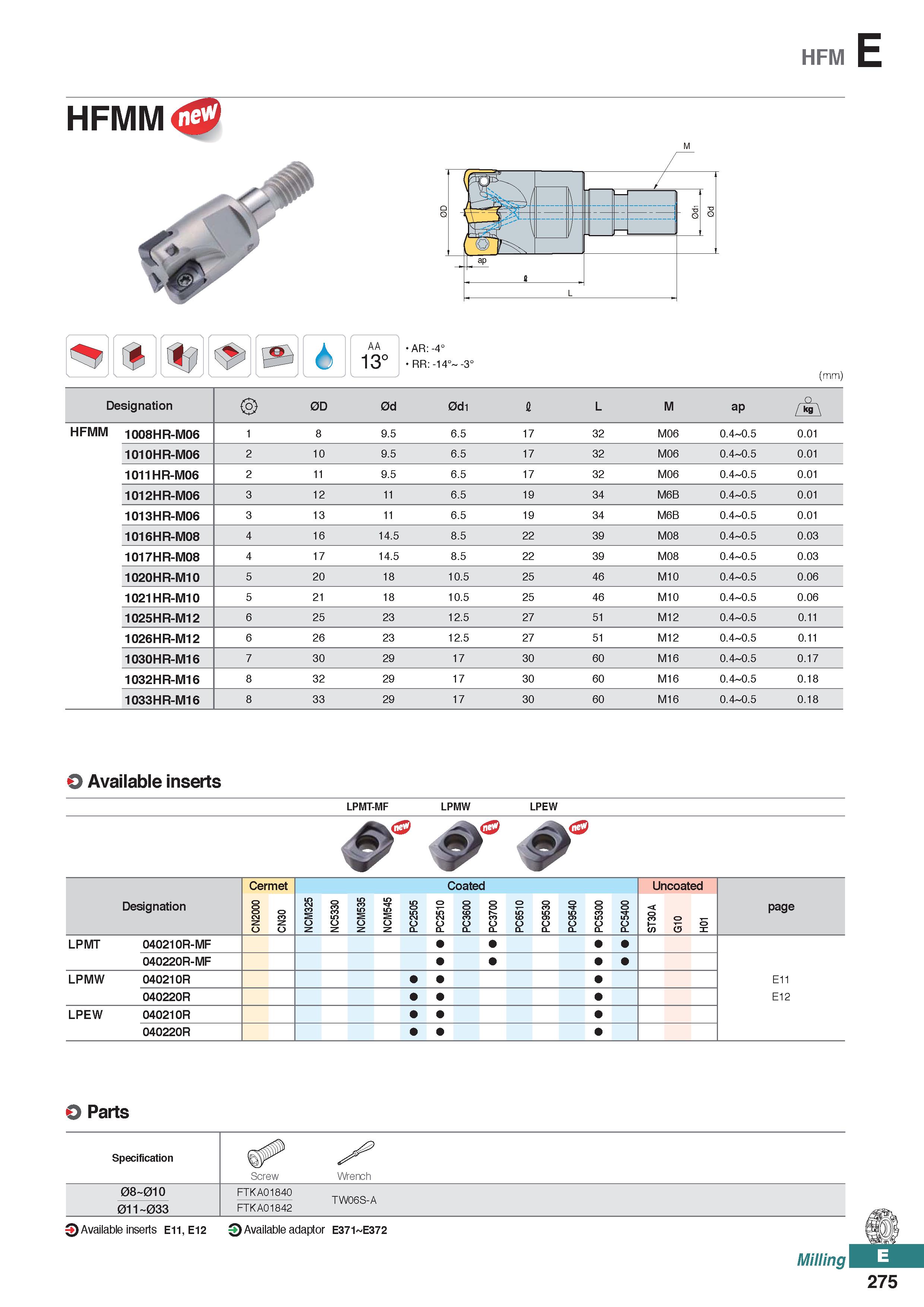

HFM E HFMM ti1 rf:i ° 6 AA 13° AR:-4° RR: -14° (mm) Designation 0D 0d 0d1 I L M ap A aA HFMM 1008HR-M06 1 8 9.5 6.5 17 32 M06 0.4 0.5 0.01 1010HR-M06 2 10 9.5 6.5 17 32 M06 0.4 0.5 0.01 1011HR-M06 2 11 9.5 6.5 17 32 M06 0.4 0.5 0.01 1012HR-M06 3 12 11 6.5 19 34 M6B 0.4 0.5 0.01 1013HR-M06 3 13 11 6.5 19 34 M6B 0.4 0.5 0.01 1016HR-M08 4 16 14.5 8.5 22 39 M08 0.4 0.5 0.03 1017HR-M08 4 17 14.5 8.5 22 39 M08 0.4 0.5 0.03 1020HR-M10 5 20 18 10.5 25 46 M10 0.4 0.5 0.06 1021HR-M10 5 21 18 10.5 25 46 M10 0.4 0.5 0.06 1025HR-M12 6 25 23 12.5 27 51 M12 0.4 0.5 0.11 1026HR-M12 6 26 23 12.5 27 51 M12 0.4 0.5 0.11 1030HR-M16 7 30 29 17 30 60 M16 0.4 0.5 0.17 1032HR-M16 8 32 29 17 30 60 M16 0.4 0.5 0.18 1033HR-M16 8 33 29 17 30 60 M16 0.4 0.5 0.18 M O Available inserts LPMT-MF LPMW LPEW Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 0 0 3 5 C CL PC5400 ST30A G10 H01 LPMT 040210R-MF 040220R-MF LPMW 040210R E11 040220R E12 LPEW 040210R 040220R O Parts Specification Screw S’ Wrench 08 01O FTKA01840 TW06S-A 011 033 FTKA01842 Q Available inserts E11, E12 O Available adaptor E371 E372 Milling 275
