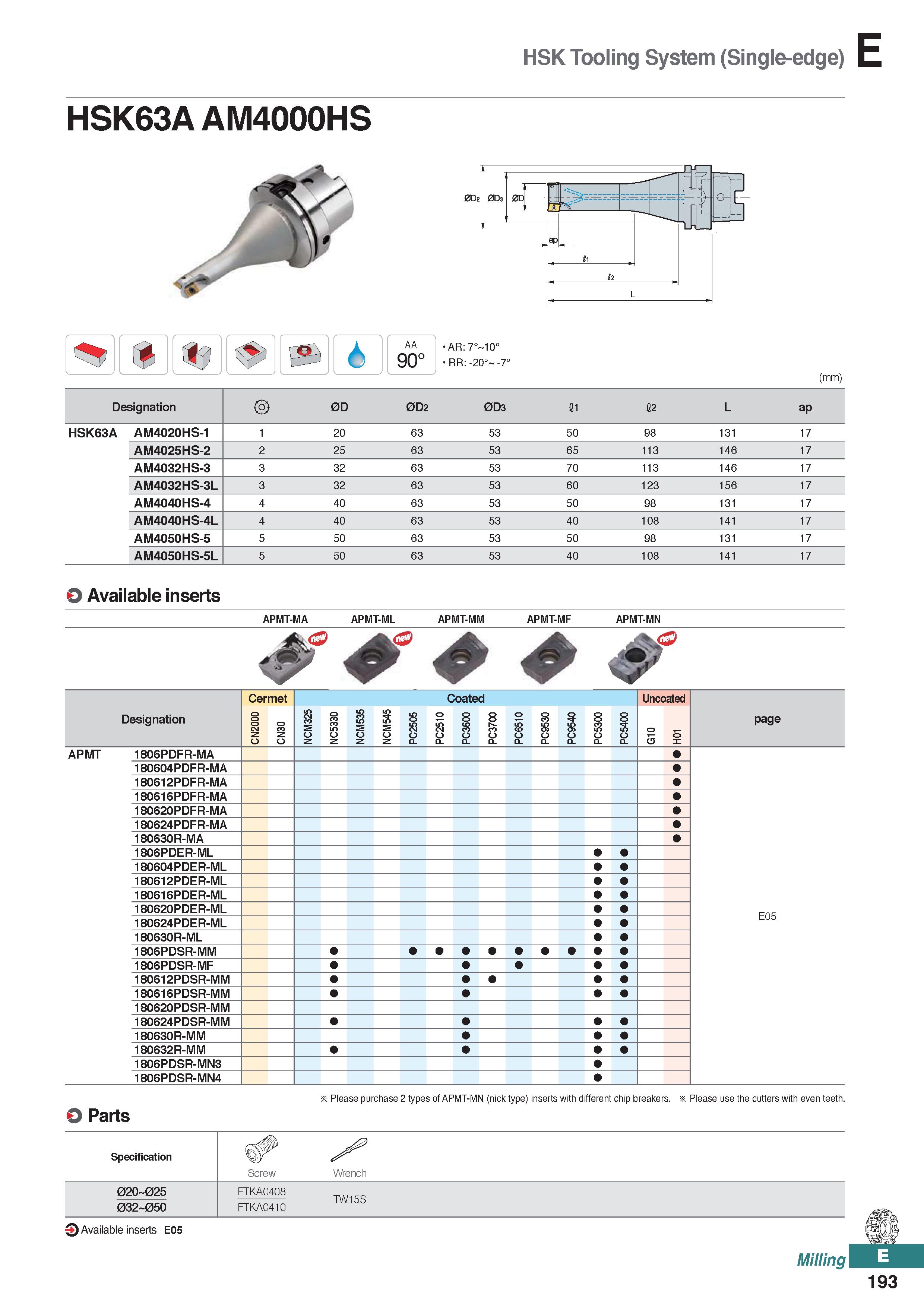

HSK Tooling System (Single-edge) AA 90° AR:7° 10° RR: -20° -7° (mm) Designation 0D 0D2 0D3 11 12 L ap HSK63A AM4020HS-1 1 20 63 53 50 98 131 17 AM4025HS-2 2 25 63 53 65 113 146 17 AM4032HS-3 3 32 63 53 70 113 146 17 AM4032HS-3L 3 32 63 53 60 123 156 17 AM4040HS-4 4 40 63 53 50 98 131 17 AM4040HS-4L 4 40 63 53 40 108 141 17 AM4050HS-5 5 50 63 53 50 98 131 17 AM4050HS-5L 5 50 63 53 40 108 141 17 O Available inserts APMT-MA APMT-ML APMT-MM APMT-MF APMT-MN Designation Cermet Coated Uncoated page CN2000 CN30 NCM325 NC5330 NCM535 NCM545 PC2505 PC2510 PC3600 PC3700 PC6510 PC9530 PC9540 PC5300 PC5400 o 5 01 APMT 1806PDFR-MA 180604PDFR-MA 180612PDFR-MA 180616PDFR-MA 180620PDFR-MA 180624PDFR-MA 180630R-MA 1806PDER-ML 180604PDER-ML 180612PDER-ML 180616PDER-ML 180620PDER-ML 180624PDER-ML E05 180630R-ML 1806PDSR-MM 1806PDSR-MF 180612PDSR-MM 180616PDSR-MM 180620PDSR-MM 180624PDSR-MM 180630R-MM 180632R-MM 1806PDSR-MN3 1806PDSR-MN4 0 Parts % Please purchase 2 types of APMT-MN (nick type) inserts with different chip breakers. % Please use the cutters with even teeth. Milling 193
