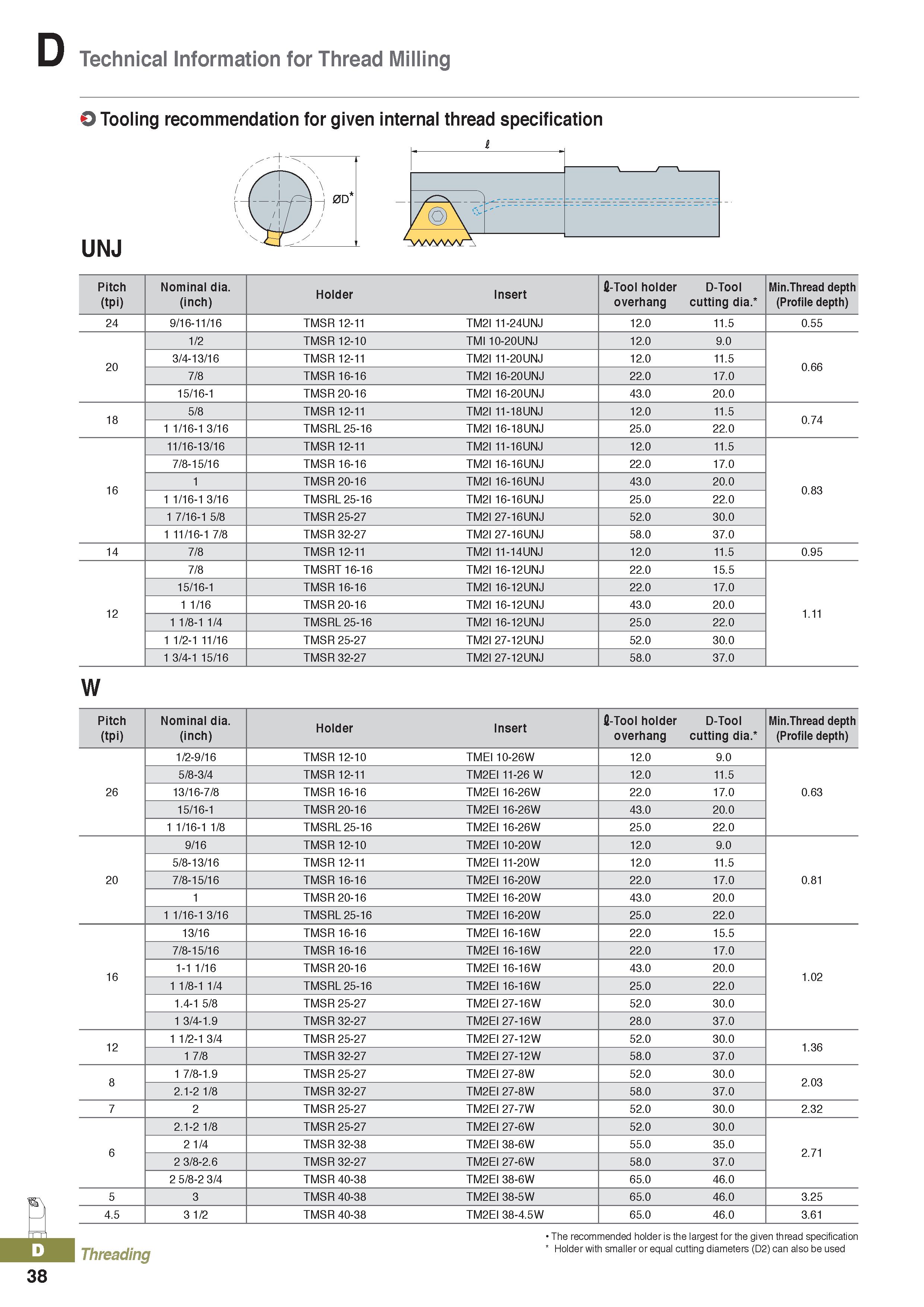

Technical Information for Thread Milling O Tooling recommendation for given internal thread specification Pitch Nominal dia. Holder Insert fi-Tool holder D-Tool Min.Thread depth (tpi) (inch) overhang cutting dia. (Profile depth) 24 9/16-11/16 TMSR 12-11 TM2I 11-24UNJ 12.0 11.5 0.55 1/2 TMSR 12-10 TMI 10-20UNJ 12.0 9.0 20 3/4-13/16 TMSR 12-11 TM2I 11-20UNJ 12.0 11.5 0.66 7/8 TMSR 16-16 TM2I 16-20UNJ 22.0 17.0 15/16-1 TMSR 20-16 TM2I 16-20UNJ 43.0 20.0 18 5/8 TMSR 12-11 TM2I 11-18UNJ 12.0 11.5 0.74 1 1/16-1 3/16 TMSRL 25-16 TM2I 16-18UNJ 25.0 22.0 11/16-13/16 TMSR 12-11 TM2I 11-16UNJ 12.0 11.5 7/8-15/16 TMSR 16-16 TM2I 16-16UNJ 22.0 17.0 16 1 TMSR 20-16 TM2I 16-16UNJ 43.0 20.0 0.83 1 1/16-1 3/16 TMSRL 25-16 TM2I 16-16UNJ 25.0 22.0 1 7/16-1 5/8 TMSR 25-27 TM2I 27-16UNJ 52.0 30.0 1 11/16-1 7/8 TMSR 32-27 TM2I 27-16UNJ 58.0 37.0 14 7/8 TMSR 12-11 TM2I 11-14UNJ 12.0 11.5 0.95 7/8 TMSRT 16-16 TM2I 16-12UNJ 22.0 15.5 15/16-1 TMSR 16-16 TM2I 16-12UNJ 22.0 17.0 12 1 1/16 TMSR 20-16 TM2I 16-12UNJ 43.0 20.0 1.11 1 1/8-1 1/4 TMSRL 25-16 TM2I 16-12UNJ 25.0 22.0 1 1/2-1 11/16 TMSR 25-27 TM2I 27-12UNJ 52.0 30.0 1 3/4-1 15/16 TMSR 32-27 TM2I 27-12UNJ 58.0 37.0 W Pitch Nominal dia. Holder Insert fl-Tool holder D-Tool Min.Thread depth (tpi) (inch) overhang cutting dia. (Profile depth) 1/2-9/16 TMSR 12-10 TMEI 10-26W 12.0 9.0 5/8-3/4 TMSR 12-11 TM2EI 11-26 W 12.0 11.5 26 13/16-7/8 TMSR 16-16 TM2EI 16-26W 22.0 17.0 0.63 15/16-1 TMSR 20-16 TM2EI 16-26W 43.0 20.0 1 1/16-1 1/8 TMSRL 25-16 TM2EI 16-26W 25.0 22.0 9/16 TMSR 12-10 TM2EI 10-20W 12.0 9.0 5/8-13/16 TMSR 12-11 TM2EI 11-20W 12.0 11.5 20 7/8-15/16 TMSR 16-16 TM2EI 16-20W 22.0 17.0 0.81 1 TMSR 20-16 TM2EI 16-20W 43.0 20.0 1 1/16-1 3/16 TMSRL 25-16 TM2EI 16-20W 25.0 22.0 13/16 TMSR 16-16 TM2EI 16-16W 22.0 15.5 7/8-15/16 TMSR 16-16 TM2EI 16-16W 22.0 17.0 16 1-1 1/16 TMSR 20-16 TM2EI 16-16W 43.0 20.0 1.02 1 1/8-1 1/4 TMSRL 25-16 TM2EI 16-16W 25.0 22.0 1.4-1 5/8 TMSR 25-27 TM2EI 27-16W 52.0 30.0 1 3/4-1.9 TMSR 32-27 TM2EI 27-16W 28.0 37.0 12 1 1/2-1 3/4 TMSR 25-27 TM2EI 27-12W 52.0 30.0 1.36 1 7/8 TMSR 32-27 TM2EI 27-12W 58.0 37.0 8 1 7/8-1.9 TMSR 25-27 TM2EI 27-8W 52.0 30.0 2.03 2.1-2 1/8 TMSR 32-27 TM2EI 27-8W 58.0 37.0 7 2 TMSR 25-27 TM2EI 27-7W 52.0 30.0 2.32 2.1-2 1/8 TMSR 25-27 TM2EI 27-6W 52.0 30.0 6 2 1/4 TMSR 32-38 TM2EI 38-6W 55.0 35.0 2.71 2 3/8-2.6 TMSR 32-27 TM2EI 27-6W 58.0 37.0 2 5/8-2 3/4 TMSR 40-38 TM2EI 38-6W 65.0 46.0 5 3 TMSR 40-38 TM2EI 38-5W 65.0 46.0 3.25 4.5 3 1/2 TMSR 40-38 TM2EI 38-4.5W 65.0 46.0 3.61 J. Threading The recommended holder is the largest for the given thread specification Holder with smaller or equal cutting diameters (D2) can also be used 38
