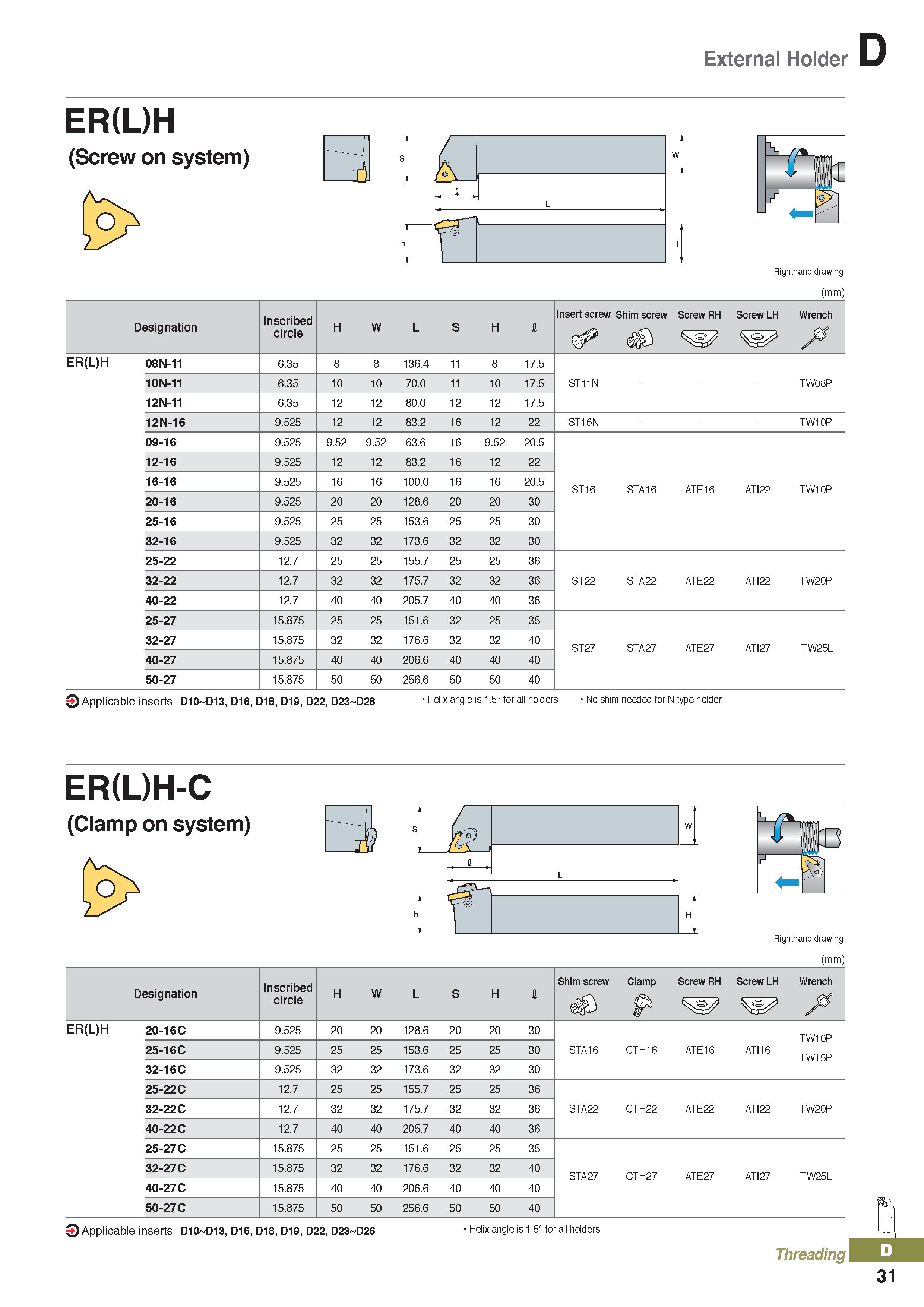

External Holder ER(L)H (Screw on system) p Righthand drawing (mm) Designation Inscribed circle H W L S H 1 Insert screw Shim screw Screw RH Screw LH Wrench ER(L)H 08N-11 6.35 8 8 136.4 11 8 17.5 10N-11 6.35 10 10 70.0 11 10 17.5 ST11N TW08P 12N-11 6.35 12 12 80.0 12 12 17.5 12N-16 9.525 12 12 83.2 16 12 22 ST16N TW10P 09-16 9.525 9.52 9.52 63.6 16 9.52 20.5 12-16 9.525 12 12 83.2 16 12 22 16-16 9.525 16 16 100.0 16 16 20.5 ST16 STA16 ATE16 ATI22 TW10P 20-16 9.525 20 20 128.6 20 20 30 25-16 9.525 25 25 153.6 25 25 30 32-16 9.525 32 32 173.6 32 32 30 25-22 12.7 25 25 155.7 25 25 36 32-22 12.7 32 32 175.7 32 32 36 ST22 STA22 ATE22 ATI22 TW20P 40-22 12.7 40 40 205.7 40 40 36 25-27 15.875 25 25 151.6 32 25 35 32-27 15.875 32 32 176.6 32 32 40 ST27 STA27 ATE27 ATI27 TW25L 40-27 15.875 40 40 206.6 40 40 40 50-27 15.875 50 50 256.6 50 50 40 O Applicable inserts D10 D13, D16, D18, D19, D22, D23 D26 Helix angle is 1.5° for all holders No shim needed for N type holder ER(L)H-C (Clamp on system) Righthand drawing (mm) Designation Inscribed circle H W L S H 1 Shim screw dUd Clamp f, Screw RH Screw LH Wrench ER(L)H 20-16C 9.525 20 20 128.6 20 20 30 TW10P TW15P 25-16C 9.525 25 25 153.6 25 25 30 STA16 CTH16 ATE16 ATI16 32-16C 9.525 32 32 173.6 32 32 30 25-22C 12.7 25 25 155.7 25 25 36 32-22C 12.7 32 32 175.7 32 32 36 STA22 CTH22 ATE22 ATI22 TW20P 40-22C 12.7 40 40 205.7 40 40 36 25-27C 15.875 25 25 151.6 25 25 35 32-27C 15.875 32 32 176.6 32 32 40 STA27 CTH27 ATE27 ATI27 TW25L 40-27C 15.875 40 40 206.6 40 40 40 50-27C 15.875 50 50 256.6 50 50 40 O Applicable inserts D10 D13, D16, D18, D19, D22, D23 D26 Helix angle is 1.5° for all holders Threading Jm 31
