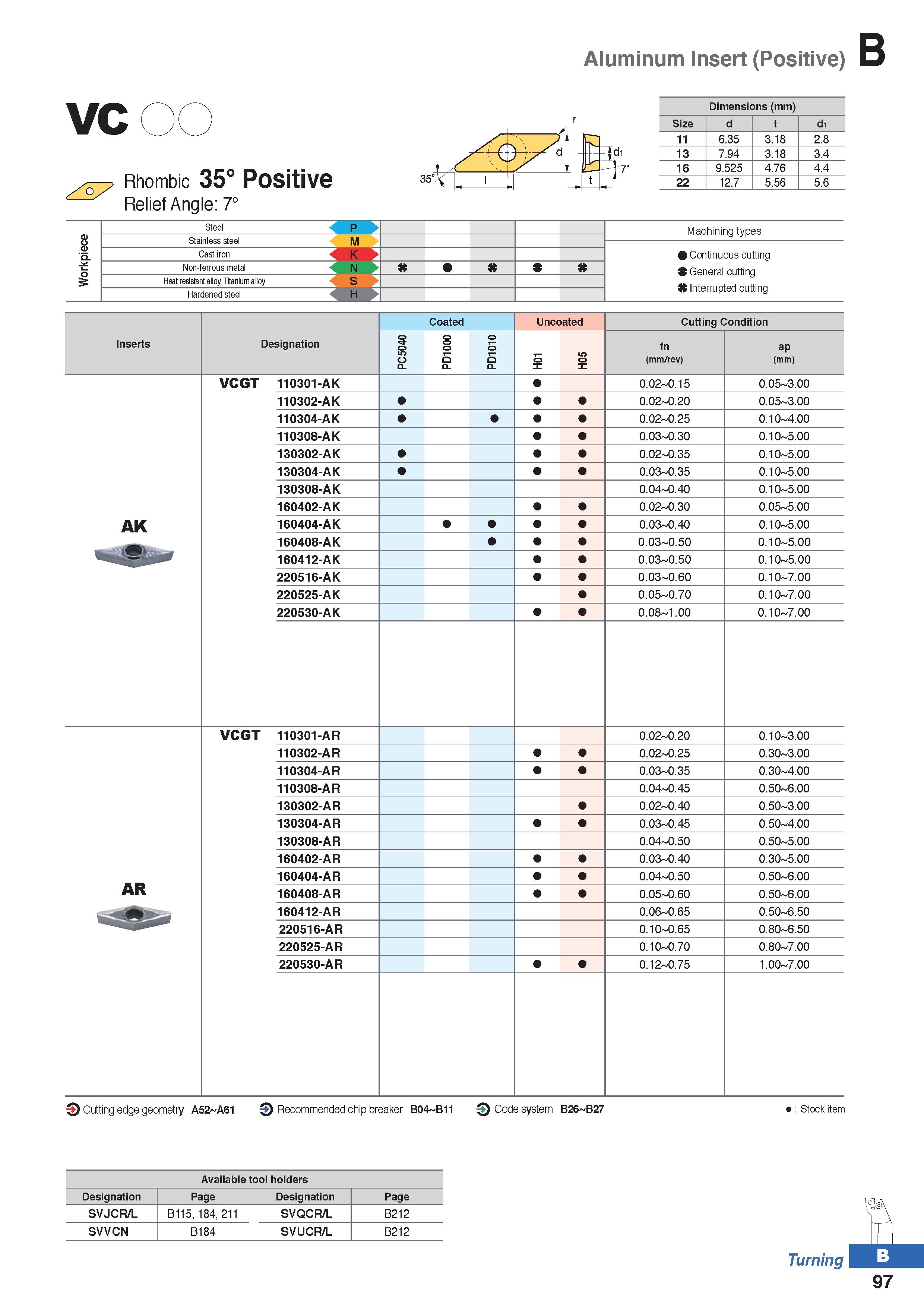

Aluminum Insert (Positive) VC Rhombic 35° Positive Relief Angle: 7° Dimensions (mm) Size d t d1 11 6.35 3.18 2.8 13 7.94 3.18 3.4 16 9.525 4.76 4.4 22 12.7 5.56 5.6 Steel 4 Stainless steel M Cast iron K Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel A H ie pi Machining types 0 Continuous cutting S General cutting It Interrupted cutting Inserts Designation Coated Uncoated Cutting Condition PC5040 PD1000 PD1010 H01 H05 fn (mm/rev) ap (mm) VCGT 110301-AK 0.02-0.15 0.05-3.00 110302-AK 0.02-0.20 0.05-3.00 110304-AK 0.02-0.25 0.10-4.00 110308-AK 0.03-0.30 0.10-5.00 130302-AK 0.02-0.35 0.10-5.00 130304-AK 0.03-0.35 0.10-5.00 130308-AK 0.04-0.40 0.10-5.00 160402-AK 0.02-0.30 0.05-5.00 AK 160404-AK 0.03-0.40 0.10-5.00 160408-AK 0.03-0.50 0.10-5.00 9 160412-AK 0.03-0.50 0.10-5.00 220516-AK 0.03-0.60 0.10-7.00 220525-AK 0.05-0.70 0.10-7.00 220530-AK 0.08-1.00 0.10-7.00 VCGT 110301-AR 0.02-0.20 0.10-3.00 110302-AR 0.02-0.25 0.30-3.00 110304-AR 0.03-0.35 0.30-4.00 110308-AR 0.04-0.45 0.50-6.00 130302-AR 0.02-0.40 0.50-3.00 130304-AR 0.03-0.45 0.50-4.00 130308-AR 0.04-0.50 0.50-5.00 160402-AR 0.03-0.40 0.30-5.00 AR 160404-AR 0.04-0.50 0.50-6.00 160408-AR 0.05-0.60 0.50-6.00 160412-AR 0.06-0.65 0.50-6.50 220516-AR 0.10-0.65 0.80-6.50 220525-AR 0.10-0.70 0.80-7.00 220530-AR 0.12-0.75 1.00-7.00 o Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 Q Code system B26 B27 Stock item Available tool holders Designation Page Designation Page SVJCR/L B115, 184, 211 SVQCR/L B212 SVVCN B184 SVUCR/L B212 Turning 97
