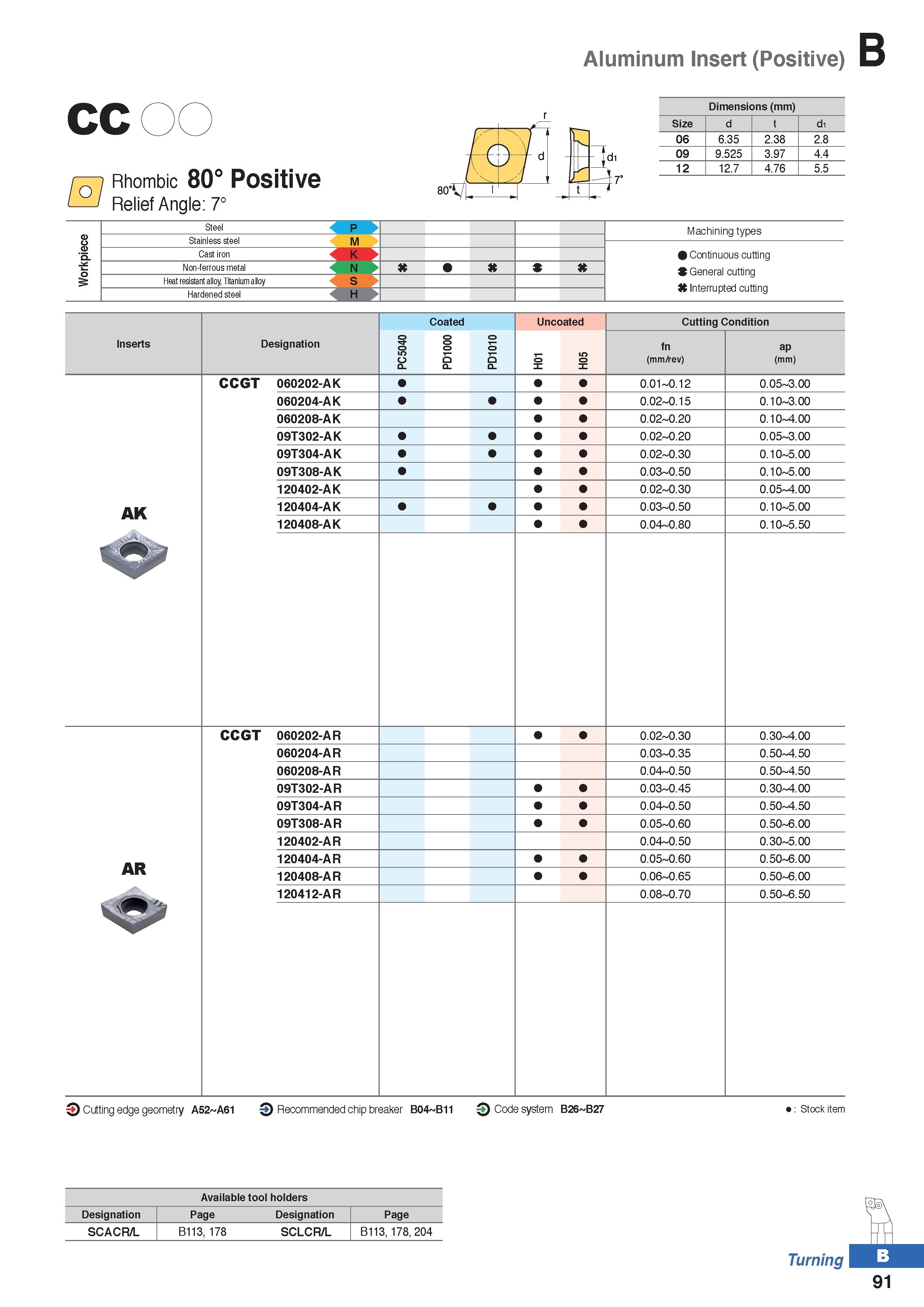

Aluminum Insert (Positive) CC o Rhombic 80° Positive Relief Angle: 7° la -Hdi 4r Dimensions (mm) Size d t d1 06 6.35 2.38 2.8 09 9.525 3.97 4.4 12 12.7 4.76 5.5 Steel 4 Stainless steel M Cast iron K Non-ferrous metal N Heat resistant alloy, Titanium alloy S Hardened steel A H ie pi Machining types 0 Continuous cutting S General cutting It Interrupted cutting Inserts Designation Coated Uncoated Cutting Condition PC5040 PD1000 PD1010 H01 H05 fn (mm/rev) ap (mm) CCGT 060202-AK 0.01 0.12 0.05 3.00 060204-AK 0.02 0.15 0.10 3.00 060208-AK 0.02 0.20 0.10 4.00 09T302-AK 0.02 0.20 0.05 3.00 09T304-AK 0.02 0.30 0.10 5.00 09T308-AK 0.03 0.50 0.10 5.00 120402-AK 0.02 0.30 0.05 4.00 AK 120404-AK 0.03 0.50 0.10 5.00 120408-AK 0.04 0.80 0.10 5.50 CCGT 060202-AR 0.02 0.30 0.30 4.00 060204-AR 0.03 0.35 0.50 4.50 060208-AR 0.04 0.50 0.50 4.50 09T302-AR 0.03 0.45 0.30 4.00 09T304-AR 0.04 0.50 0.50 4.50 09T308-AR 0.05 0.60 0.50 6.00 120402-AR 0.04 0.50 0.30 5.00 AR 120404-AR 0.05 0.60 0.50 6.00 120408-AR 0.06 0.65 0.50 6.00 120412-AR 0.08 0.70 0.50 6.50 o Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 Q Code system B26 B27 Stock item Available tool holders Designation Page Designation Page SCACR/L B113, 178 SCLCR/L B113, 178, 204 Turning 91
