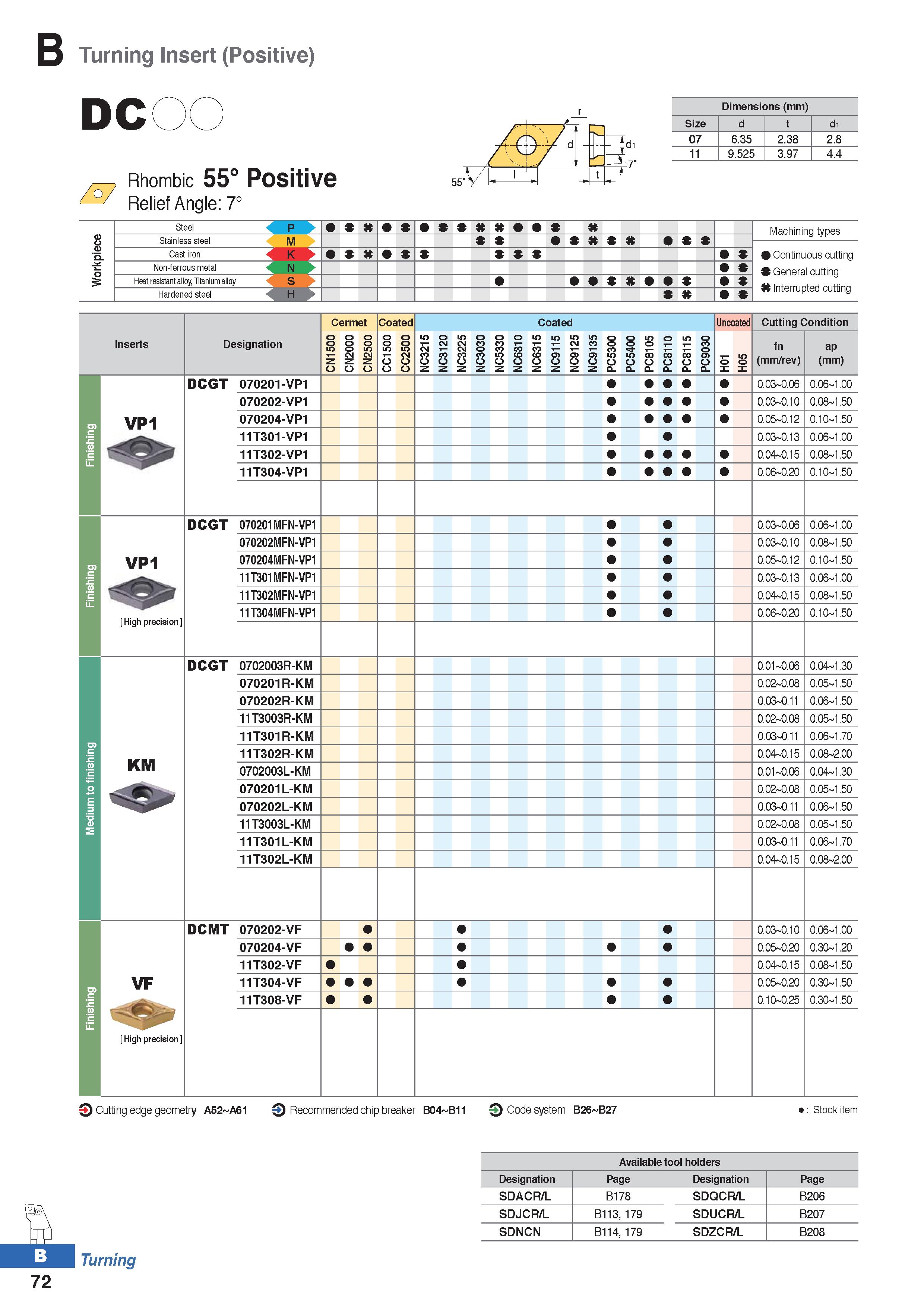

B Turning Insert (Positive) DC Rhombic 55° Positive Relief Angle: 7° 55' / fr / \ V. t ° vu "13d1 Dimensions (mm) Size d t d1 07 6.35 2.38 2.8 11 9.525 3.97 4.4 Steel P Machining types e c Stainless steel M It ie pi Cast iron K 0 Continuous cutting Non-ferrous metal N % General cutting oW Heat resistant alloy, Titanium alloy S Hardened steel H t Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3215 NC3120 NC3225 NC3030 NC5330 NC6310 NC6315 NC9115 NC9125 NC9135 PC5300 PC5400 PC8105 PC8110 PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) VP1 aAb DCGT 070201-VP1 0.03 0.06 0.06 1.00 070202-VP1 0.03 0.10 0.08 1.50 070204-VP1 0.05 0.12 0.10 1.50 11T301-VP1 0.03 0.13 0.06 1.00 11T302-VP1 0.04 0.15 0.08 1.50 11T304-VP1 0.06 0.20 0.10 1.50 VP1 High precision DCGT 070201MFN-VP1 0.03 0.06 0.06 1.00 070202MFN-VP1 0.03 0.10 0.08 1.50 070204MFN-VP1 0.05 0.12 0.10 1.50 11T301MFN-VP1 0.03 0.13 0.06 1.00 11T302MFN-VP1 0.04 0.15 0.08 1.50 11T304MFN-VP1 0.06 0.20 0.10 1.50 KM DCGT 0702003R-KM 0.01 0.06 0.04 1.30 070201R-KM 0.02 0.08 0.05 1.50 070202R-KM 0.03 0.11 0.06 1.50 11T3003R-KM 0.02 0.08 0.05 1.50 11T301R-KM 0.03 0.11 0.06 1.70 11T302R-KM 0.04 0.15 0.08 2.00 0702003L-KM 0.01 0.06 0.04 1.30 070201L-KM 0.02 0.08 0.05 1.50 070202L-KM 0.03 0.11 0.06 1.50 11T3003L-KM 0.02 0.08 0.05 1.50 11T301L-KM 0.03 0.11 0.06 1.70 11T302L-KM 0.04 0.15 0.08 2.00 VF High precision DCMT 070202-VF 0.03 0.10 0.06 1.00 070204-VF 0.05 0.20 0.30 1.20 11T302-VF 0.04 0.15 0.08 1.50 11T304-VF 0.05 0.20 0.30 1.50 11T308-VF 0.10 0.25 0.30 1.50 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 o Code system B26 B27 Stock item Available tool holders Designation Page Designation Page SDACR/L B178 SDQCR/L B206 SDJCR/L B113, 179 SDUCR/L B207 SDNCN B114, 179 SDZCR/L B208 Turning 72
