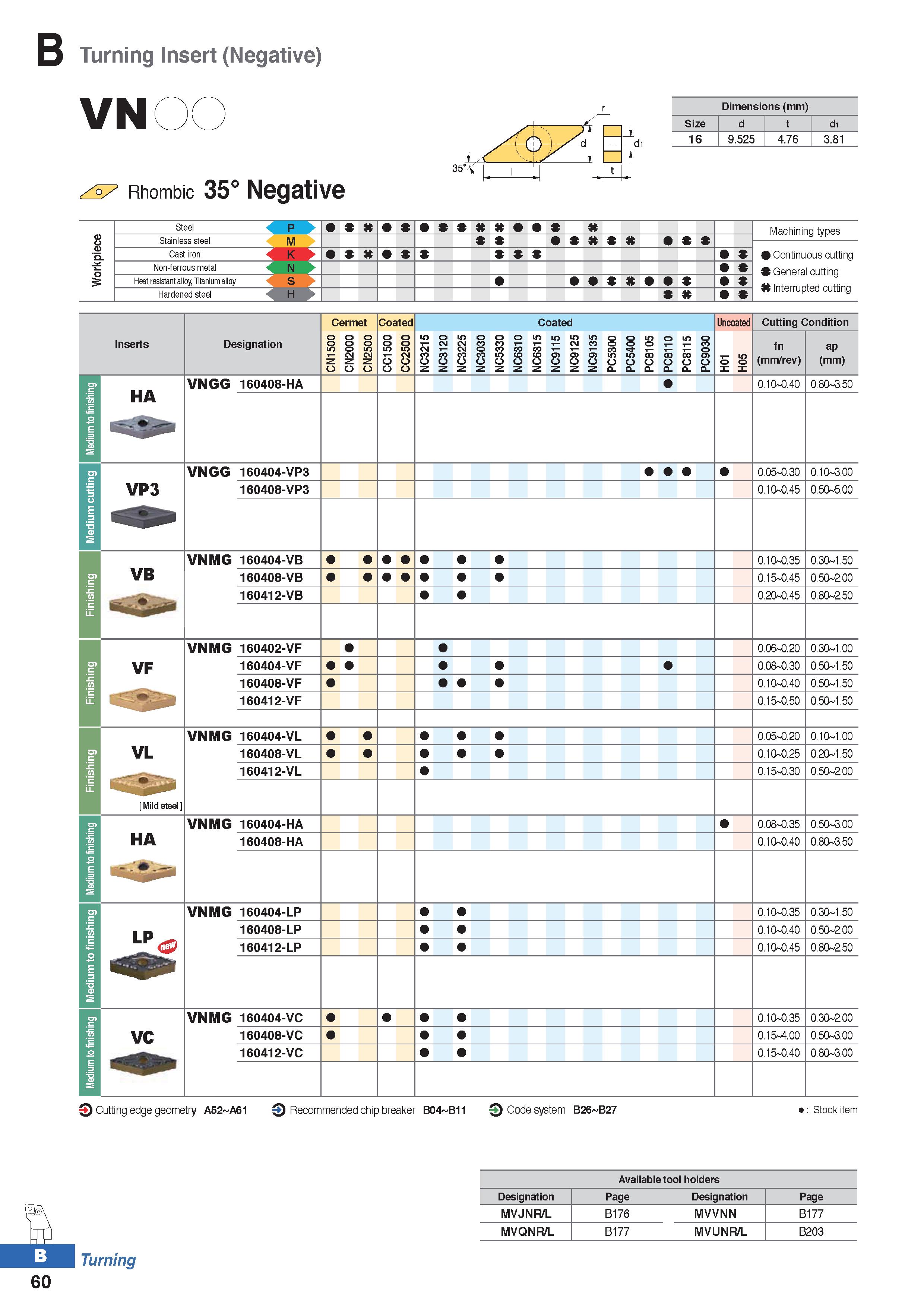

Turning Insert (Negative) VN Rhombic 35° Negative Dimensions (mm) Size d t d1 16 9.525 4.76 3.81 Steel 4 Machining types e c Stainless steel M S s It ie pi Cast iron K 0 Continuous cutting Non-ferrous metal N % General cutting Heat resistant alloy, Titanium alloy S Hardened steel A H K Interrupted cutting Inserts Designation Cermet Coated Coated Uncoated Cutting Condition CN1500 CN2000 CN2500 CC1500 CC2500 NC3215 NC3120 NC3225 NC3030 NC5330 NC6310 NC6315 NC9115 NC9125 NC9135 PC5300 PC5400 PC8105 PC8110 PC8115 PC9030 H01 H05 fn (mm/rev) ap (mm) HA VNGG 160408-HA 0.10-0.40 0.80-3.50 VP3 VNGG 160404-VP3 0.05-0.30 0.10-3.00 160408-VP3 0.10-0.45 0.50-5.00 VB VNMG 160404-VB 0.10-0.35 0.30-1.50 160408-VB 0.15-0.45 0.50-2.00 160412-VB 0.20-0.45 0.80-2.50 VF VNMG 160402-VF 0.06-0.20 0.30-1.00 160404-VF 0.08-0.30 0.50-1.50 160408-VF 0.10-0.40 0.50-1.50 160412-VF 0.15-0.50 0.50-1.50 VL Mild steel VNMG 160404-VL 0.05-0.20 0.10-1.00 160408-VL 0.10-0.25 0.20-1.50 160412-VL 0.15-0.30 0.50-2.00 HA VNMG 160404-HA 0.08-0.35 0.50-3.00 160408-HA 0.10-0.40 0.80-3.50 LP VNMG 160404-LP 0.10-0.35 0.30-1.50 160408-LP 0.10-0.40 0.50-2.00 160412-LP 0.10-0.45 0.80-2.50 vc VNMG 160404-VC 0.10-0.35 0.30-2.00 160408-VC 0.15-4.00 0.50-3.00 160412-VC 0.15-0.40 0.80-3.00 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 9 Code system B26 B27 : Stock item Turning 60 Available tool holders Designation Page Designation Page MVJNR/L B176 MVVNN B177 MVQNR/L B177 MVUNR/L B203
