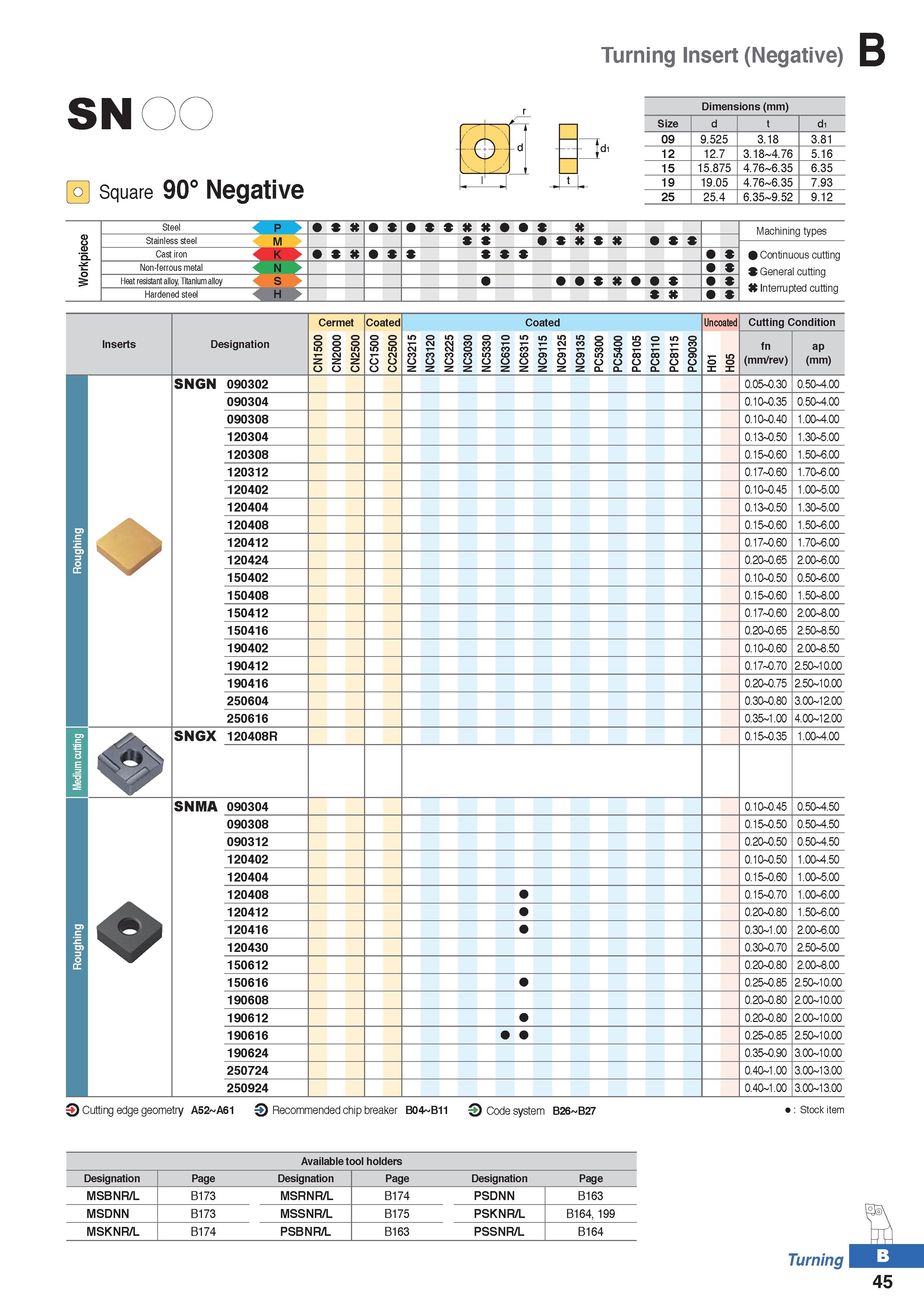

Turning Insert (Negative) SN o Square 90° Negative 4>- Zld Dimensions (mm) Size d t d1 09 9.525 3.18 3.81 12 12.7 3.18-4.76 5.16 15 15.875 4.76-6.35 6.35 19 19.05 4.76-6.35 7.93 25 25.4 6.35-9.52 9.12 Workpiece Steel P S K n Machining types 0 Continuous cutting S General cutting W Interrupted cutting Stainless steel M s X X s Cast iron K K s Non-ferrous metal N Heat resistant alloy, Titanium alloy S S 9 Hardened steel H s n Inserts Designation Cermet Coated Coated Uncoated Cutting Condition 000 000 m o m t- N W NNN o 00 00 in in i- CJ CC CC 5 w CO C N 0 2 31 C z 5 CN 3 C N 0 3 0 3 C N 0 3 3 5 C N 0 31 6 C z 5 31 6 C N 55 T- CN cd cn CC z z 5 3 CD C Z 0 0 3 5 C P 0 0 5 C P 5 0 81 C Q 0 81 C P 5 81 C P 0 3 0 C Q 01 H 5 0 H fn (mm/rev) ap (mm) oughing SNGN 090302 0.05-0.30 0.50-4.00 090304 0.10-0.35 0.50-4.00 090308 0.10-0.40 1.00-4.00 120304 0.13-0.50 1.30-5.00 120308 0.15-0.60 1.50-6.00 120312 0.17-0.60 1.70-6.00 120402 0.10-0.45 1.00-5.00 120404 0.13-0.50 1.30-5.00 120408 0.15-0.60 1.50-6.00 120412 0.17-0.60 1.70-6.00 120424 0.20-0.65 2.00-6.00 150402 0.10-0.50 0.50-6.00 150408 0.15-0.60 1.50-8.00 150412 0.17-0.60 2.00-8.00 150416 0.20-0.65 2.50-8.50 190402 0.10-0.60 2.00-8.50 190412 0.17-0.70 2.50-10.00 190416 0.20-0.75 2.50-10.00 250604 0.30-0.80 3.00-12.00 250616 0.35-1.00 4.00-12.00 Medium cutting & SNGX 120408R 0.15-0.35 1.00-4.00 Roughing SNMA 090304 0.10-0.45 0.50-4.50 090308 0.15-0.50 0.50-4.50 090312 0.20-0.50 0.50-4.50 120402 0.10-0.50 1.00-4.50 120404 0.15-0.60 1.00-5.00 120408 0.15-0.70 1.00-6.00 120412 0.20-0.80 1.50-6.00 120416 0.30-1.00 2.00-6.00 120430 0.30-0.70 2.50-5.00 150612 0.20-0.80 2.00-8.00 150616 0.25-0.85 2.50-10.00 190608 0.20-0.80 2.00-10.00 190612 0.20-0.80 2.00-10.00 190616 0.25-0.85 2.50-10.00 190624 0.35-0.90 3.00-10.00 250724 0.40-1.00 3.00-13.00 250924 0.40-1.00 3.00-13.00 9 Cutting edge geometry A52 A61 0 Recommended chip breaker B04 B11 O Code system B26 B27 Stock item Available tool holders Designation Page Designation Page Designation Page MSBNR/L B173 MSRNR/L B174 PSDNN B163 MSDNN B173 MSSNR/L B175 PSKNR/L B164, 199 MSKNR/L B174 PSBNR/L B163 PSSNR/L B164 Turning 45
