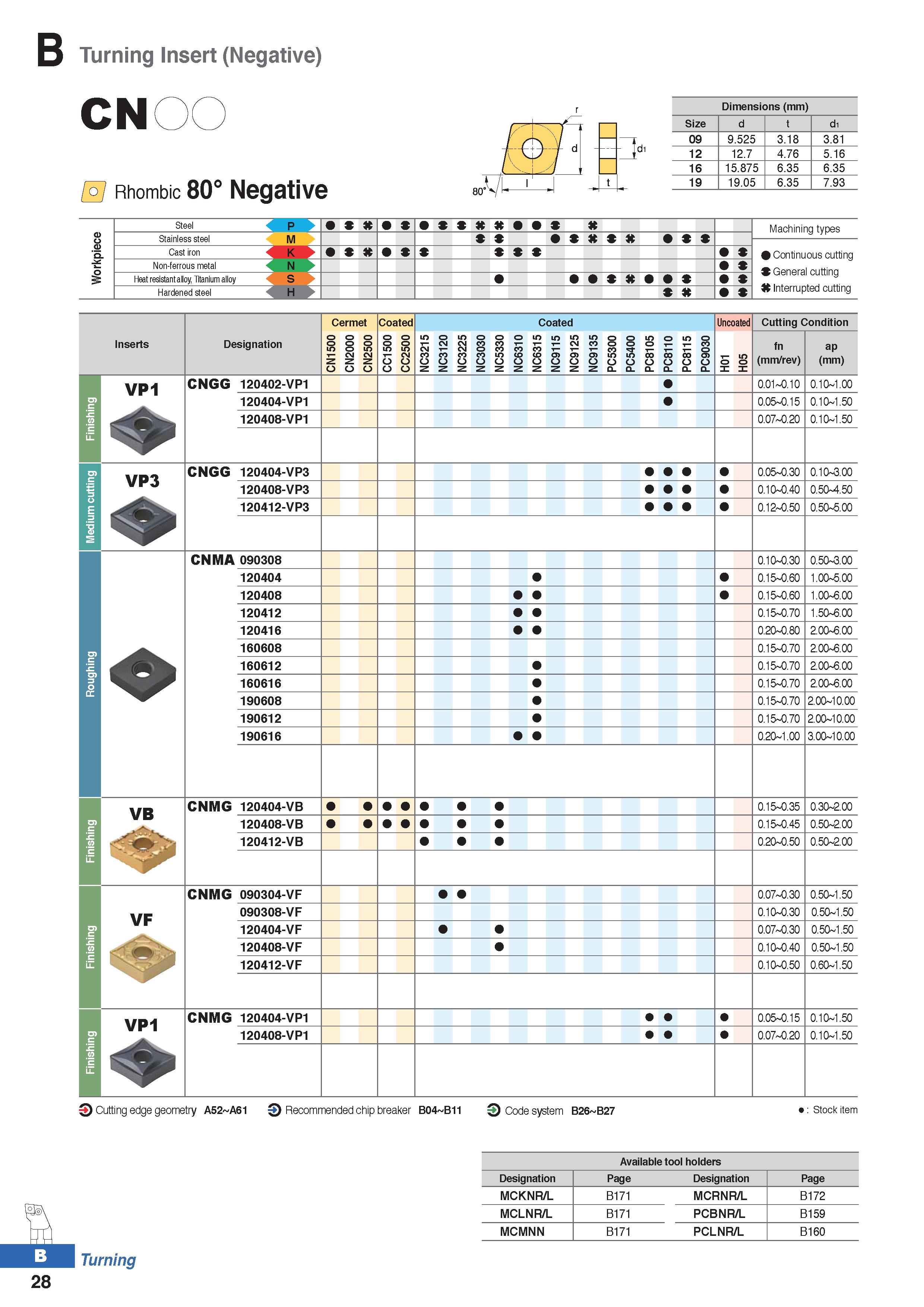

Turning Insert (Negative) CN Rhombic 80° Negative y A51 e-h- Dimensions (mm) Size d t d1 09 9.525 3.18 3.81 12 12.7 4.76 5.16 16 15.875 6.35 6.35 19 19.05 6.35 7.93 Workpiece Steel P Machining types Stainless steel M 0 Continuous cutting % General cutting Interrupted cutting Cast iron K Non-ferrous metal N Heat resistant alloy Titanium alloy S Hardened steel H Inserts Designation Cermet Coated Coated Uncoated Cutting Condition m o m I" W z z z o in in i- CJ inoinoooininminooinoino i-cjcjeoeo-i i i-cje T-T-eo cj-i-cjoeoeoeo-i i i-eo i i i-o cocococoin 0 0o>o>o>inincococoo> zzzzzzzzzza.a.a.a.a.0. i- in X X fn (mm/rev) ap (mm) Finishing VP1 CNGG 120402-VP1 0.01 0.10 0.10 1.00 120404-VP1 0.05 0.15 0.10 1.50 120408-VP1 0.07 0.20 0.10 1.50 Medium cutting VP3 CNGG 120404-VP3 0.05 0.30 0.10 3.00 120408-VP3 0.10 0.40 0.50 4.50 120412-VP3 0.12 0.50 0.50 5.00 CNMA 090308 0.10 0.30 0.50 3.00 120404 0.15 0.60 1.00 5.00 120408 0.15 0.60 1.00 6.00 120412 0.15 0.70 1.50 6.00 oughing 120416 0.20 0.80 2.00 6.00 160608 0.15 0.70 2.00 6.00 160612 0.15 0.70 2.00 6.00 160616 0.15 0.70 2.00 6.00 190608 0.15 0.70 2.00 10.00 190612 0.15 0.70 2.00 10.00 190616 0.20 1.00 3.00 10.00 g in hi is ini Fi VB CNMG 120404-VB 0.15 0.35 0.30 2.00 120408-VB 0.15 0.45 0.50 2.00 120412-VB 0.20 0.50 0.50 2.00 g in hi is ini Fi VF CNMG 090304-VF 0.07 0.30 0.50 1.50 090308-VF 0.10 0.30 0.50 1.50 120404-VF 0.07 0.30 0.50 1.50 120408-VF 0.10 0.40 0.50 1.50 120412-VF 0.10 0.50 0.60 1.50 g in hi is ini Fi VP1 CNMG 120404-VP1 0.05 0.15 0.10 1.50 120408-VP1 0.07 0.20 0.10 1.50 Cutting edge geometry A52 A61 Recommended chip breaker B04 B11 Q Code system B26 B27 : Stock item Turning 28 Available tool holders Designation Page Designation Page MCKNR/L B171 MCRNR/L B172 MCLNR/L B171 PCBNR/L B159 MCMNN B171 PCLNR/L B160
