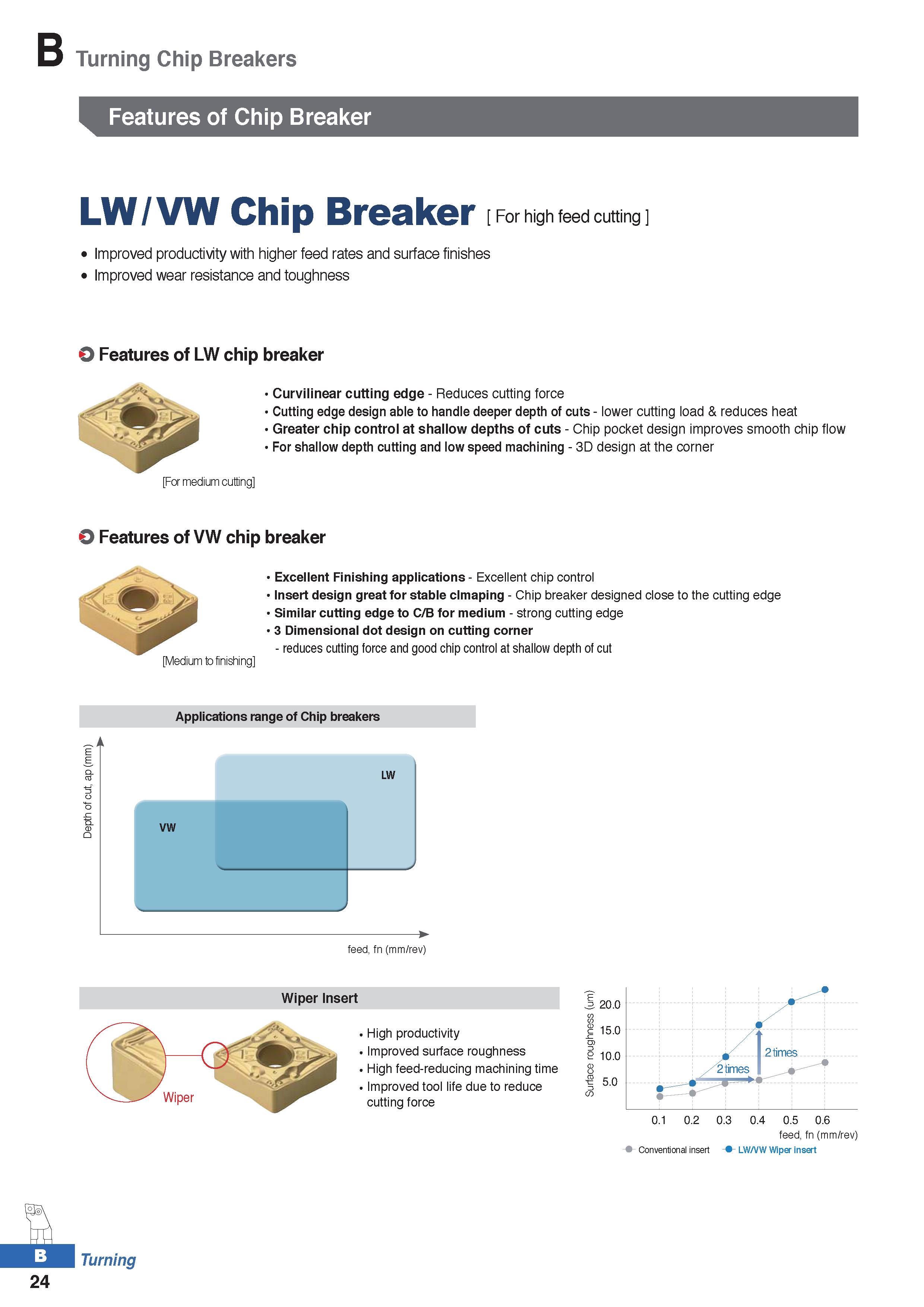

Turning Chip Breakers Features of Chip Breaker LW/VW Chip Breaker For high feed cutting Improved productivity with higher feed rates and surface finishes Improved wear resistance and toughness O Features of LW chip breaker Curvilinear cutting edge - Reduces cutting force Cutting edge design able to handle deeper depth of cuts - lower cutting load & reduces heat Greater chip control at shallow depths of cuts - Chip pocket design improves smooth chip flow For shallow depth cutting and low speed machining - 3D design at the corner For medium cutting O Features of VW chip breaker Excellent Finishing applications - Excellent chip control Insert design great for stable clmaping - Chip breaker designed close to the cutting edge Similar cutting edge to C/B for medium - strong cutting edge 3 Dimensional dot design on cutting corner - reduces cutting force and good chip control at shallow depth of cut Medium to finishing Applications range of Chip breakers Wiper Insert High productivity Improved surface roughness High feed-reducing machining time Improved tool life due to reduce cutting force Conventional insert feed, fn (mm/rev) - LW/VW Wiper insert Turning 24
