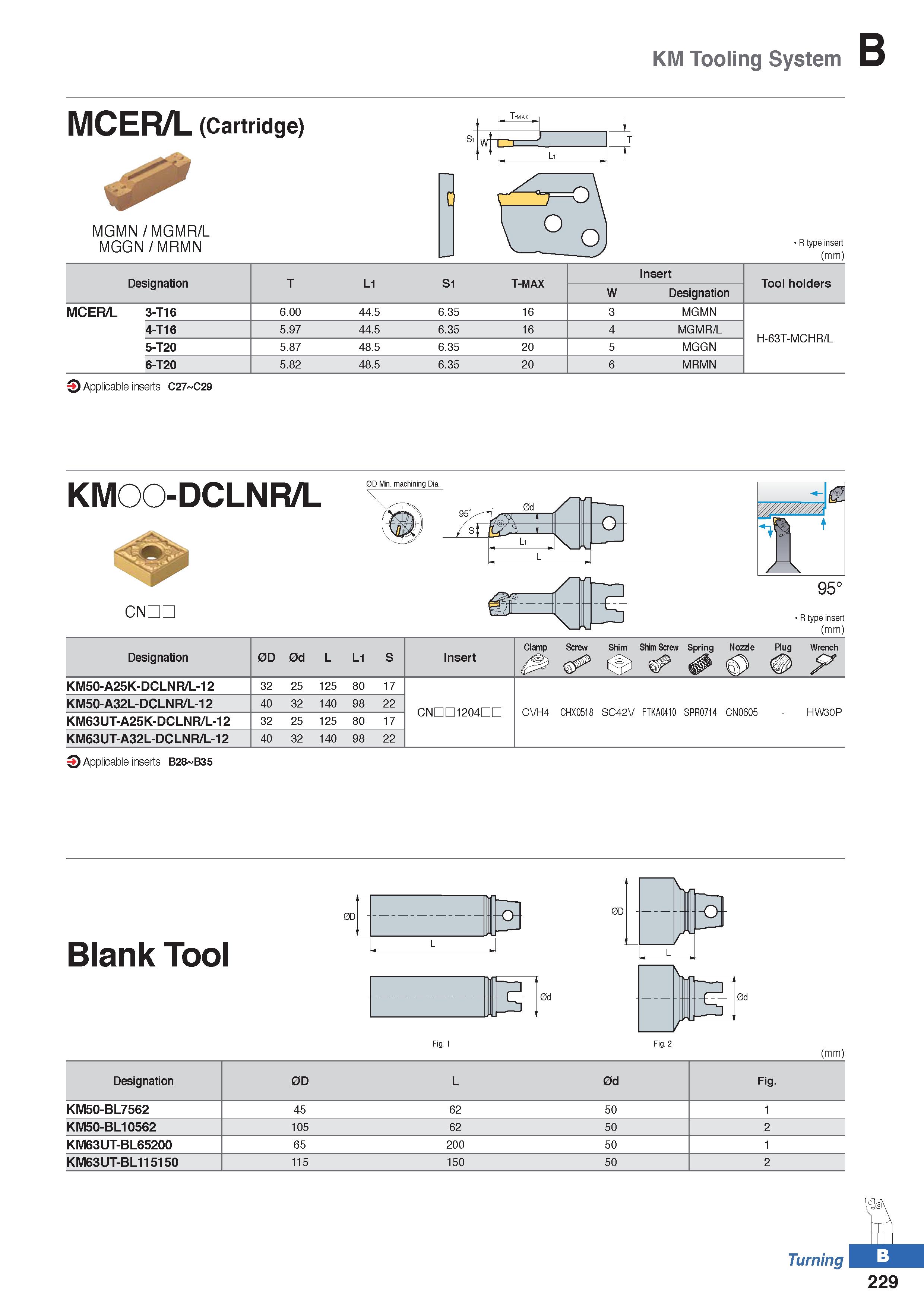

KM Tooling System MCER/L (Cartridge) MGMN / MGMR/L MGGN/MRMN R type insert (mm) Designation T L1 S1 T-MAX Insert Tool holders W Designation MCER/L 3-T16 6.00 44.5 6.35 16 3 MGMN 4-T16 5.97 44.5 6.35 16 4 MGMR/L H-63T-MCHR/L 5-T20 5.87 48.5 6.35 20 5 MGGN 6-T20 5.82 48.5 6.35 20 6 MRMN o Applicable inserts C27 C29 KMOO-DCLNR/L 0D Min. machining Dia. CNDL £ 95° R type insert (mm) Designation 0D 0d L L1 S Insert Clamp Screw Shim Shim Screw Spring Nozzle Plug Wrench j KM50-A25K-DCLNR/L-12 32 25 125 80 17 KM50-A32L-DCLNR/L-12 40 32 140 98 22 CNDD1204IZO CVH4 CHX0518 SC42V FTKA0410 SPR0714 CN0605 - HW30P KM63UT-A25K-DCLNR/L-12 32 25 125 80 17 KM63UT-A32L-DCLNR/L-12 40 32 140 98 22 9 Applicable inserts B28 B35 Blank Tool 0D -o- 0D V fL - f o L H 0d L 0d Fig. 1 Fig. 2 (mm) Designation 0D L 0d Fig. KM50-BL7562 45 62 50 1 KM50-BL10562 105 62 50 2 KM63UT-BL65200 65 200 50 1 KM63UT-BL115150 115 150 50 2 Turning 229 L
