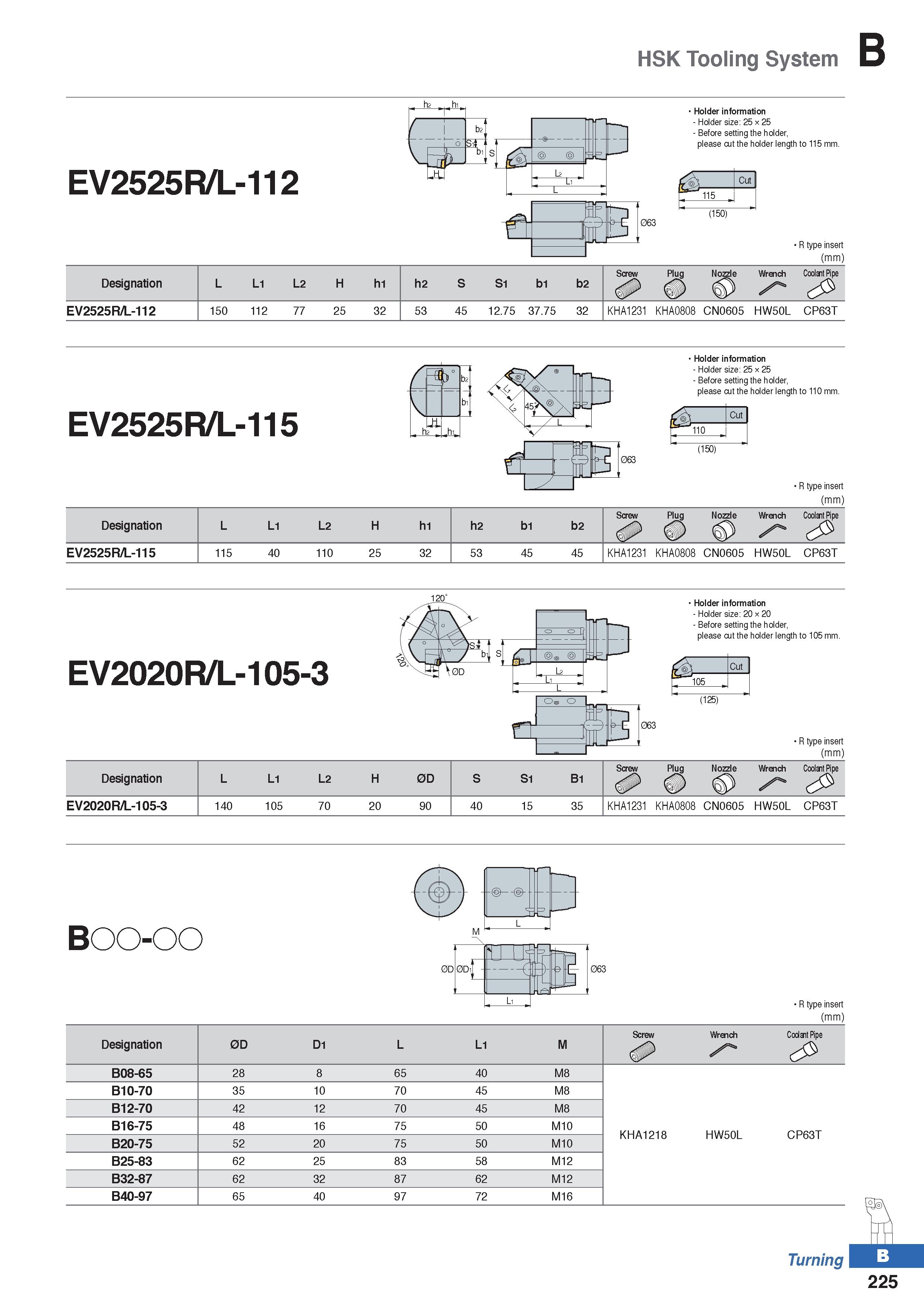

HSK Tooling System EV2525R/L-112 1 ° b2 SIT P L2 L1 l : r jfld P - 063 Holder information - Holder size: 25 x 25 - Before setting the holder please cut the holder length to 115 mm. fcS Cut 115 (150) R type insert (mm) Designation L L1 L2 H h1 h2 S S1 b1 b2 Screw Nozzle Wrench S' Coolant Pipe EV2525R/L-112 150 112 77 25 32 53 45 12.75 37.75 32 KHA1231 8 0 8 0 A H K CN0605 HW50L CP63T EV2525R/L-115 Holder information - Holder size: 25 x 25 - Before setting the holder, please cut the holder length to 110 mm. Cut B 110 (150) R type insert (mm) Designation L L1 L2 H h1 h2 b1 b2 Screw Pj g Nozzle Wrench Coolant Pipe EV2525R/L-115 115 40 110 25 32 53 45 45 KHA1231 KHA0808 CN0605 HW50L CP63T EV2020R/L-105-3 Holder information - Holder size: 20 x 20 - Before setting the holder, please cut the holder length to 105 mm. 0x Cut 105 , (125) R type insert (mm) Designation L L1 L2 H 0D S S1 B1 Screw Nozzle Wrench S' Coolant Pipe EV2020R/L-105-3 140 105 70 20 90 40 15 35 KHA1231 KHA0808 CN0605 HW50L CP63T 063 BOO-OO R type insert (mm) Designation 0D D1 L L1 M Screw Wrench Coolant Pipe B08-65 28 8 65 40 M8 B10-70 35 10 70 45 M8 B12-70 42 12 70 45 M8 B16-75 48 16 75 50 M10 KHA1218 HW50L CP63T B20-75 52 20 75 50 M10 B25-83 62 25 83 58 M12 B32-87 62 32 87 62 M12 B40-97 65 40 97 72 M16 Turning 225
