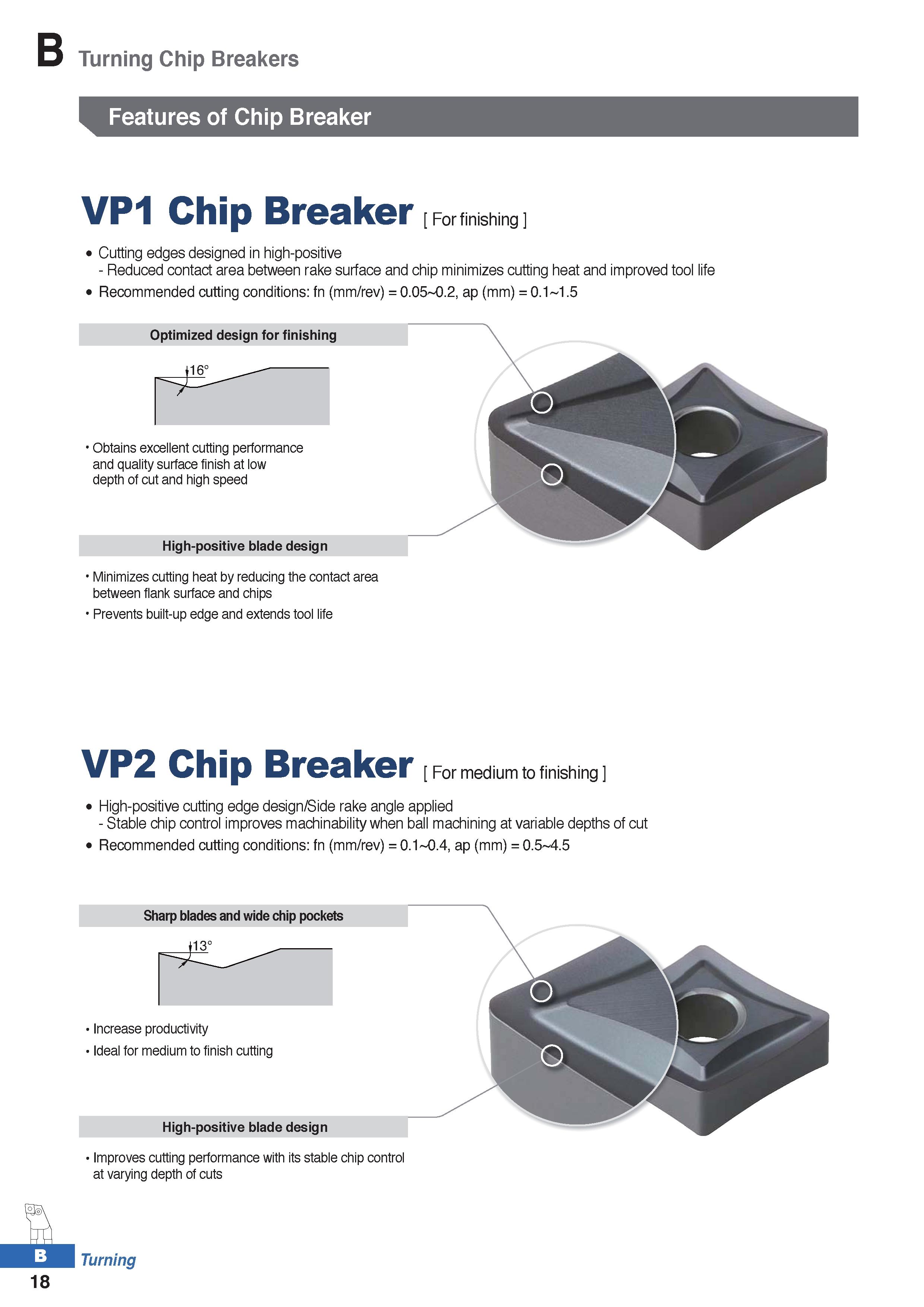

Turning Chip Breakers Features of Chip Breaker VP1 Chip Breaker For finishing Cutting edges designed in high-positive - Reduced contact area between rake surface and chip minimizes cutting heat and improved tool life Recommended cutting conditions: fn (mm/rev) = 0.05 0.2, ap (mm) = 0.1 1.5 Optimized design for finishing y16° Obtains excellent cutting performance and quality surface finish at low depth of cut and high speed High-positive blade design Minimizes cutting heat by reducing the contact area between flank surface and chips Prevents built-up edge and extends tool life VP2 Chip Breaker For medium to finishing High-positive cutting edge design/Side rake angle applied - Stable chip control improves machinability when ball machining at variable depths of cut Recommended cutting conditions: fn (mm/rev) = 0.1 0.4, ap (mm) = 0.5 4.5 Sharp blades and wide chip pockets I ncrease productivity I deal for medium to finish cutting High-positive blade design Improves cutting performance with its stable chip control at varying depth of cuts Turning 18
