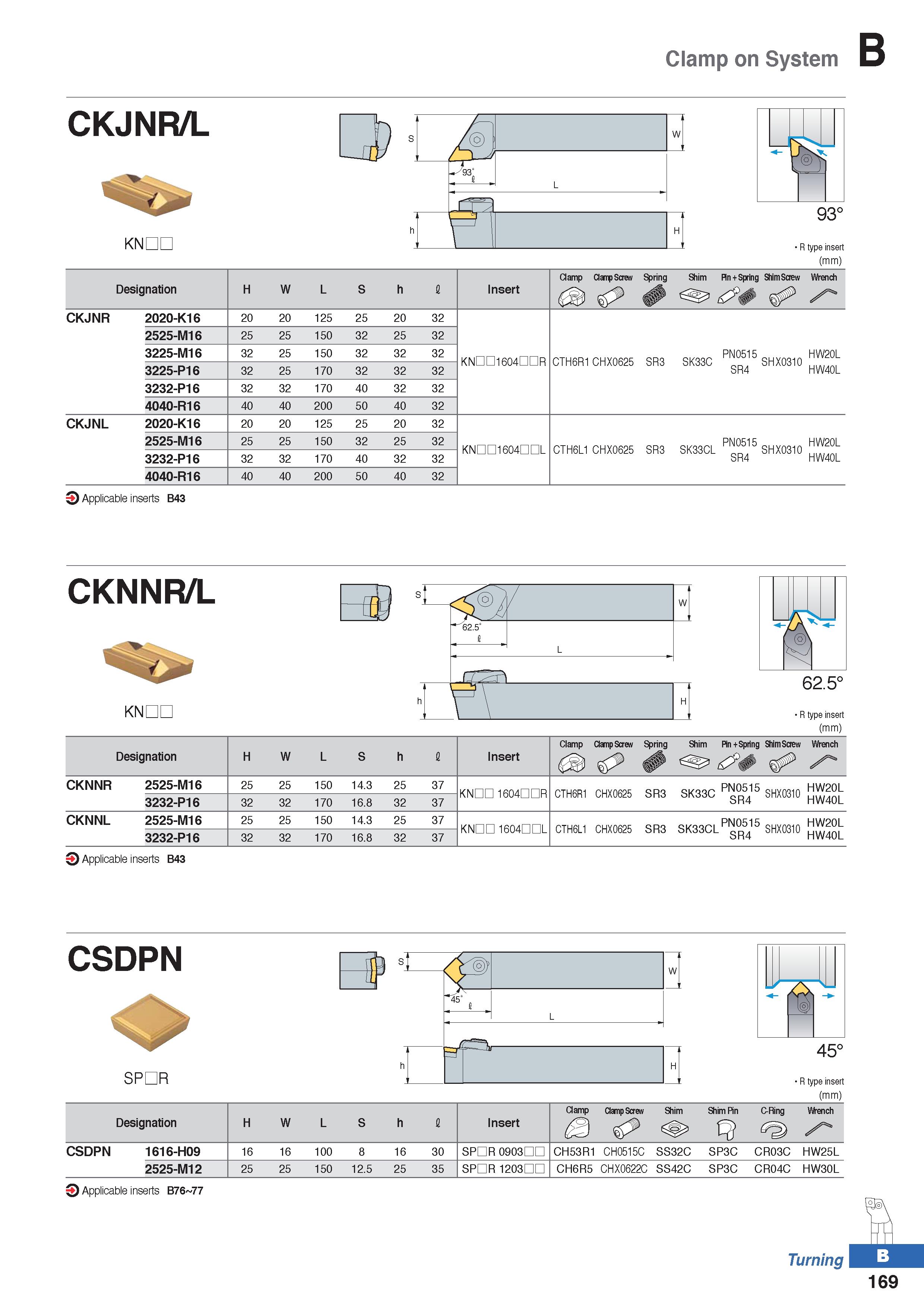

Clamp on System CKJNR/L KNDL R type insert (mm) CKNNR/L KNDL 62.5° R type insert (mm) Designation H W L S h I Insert Clamp Clamp Screw Spring Shim Pin + Spring Shim Screw Wrench CKNNR 2525-M16 25 25 150 14.3 25 37 KNUD 1604DDR CTH6R1 CHX0625 SR3 Qk’QQP PN0515 SK33C SR4 SHX0310 HW20L 3232-P16 32 32 170 16.8 32 37 HW40L CKNNL 2525-M16 25 25 150 14.3 25 37 KNUD 1604DDL CTH6L1 CHX0625 SR3 SK33CLPIS05415 SHX0310 HW20L 3232-P16 32 32 170 16.8 32 37 HW40L 9 Applicable inserts B43 CSDPN SPUR 45° R type insert (mm) Clamp Clamp Screw Shim Shim Pin C-Ring Wrench Designation H W L S h I Insert £) CSDPN 1616-H09 16 16 100 8 16 30 SPDR 0903 CH53R1 CH0515C SS32C SP3C CR03C HW25L 2525-M12 25 25 150 12.5 25 35 SPDR 1203HD CH6R5 CHX0622C SS42C SP3C CR04C HW30L 3 Applicable inserts B76 77 Turning 169
