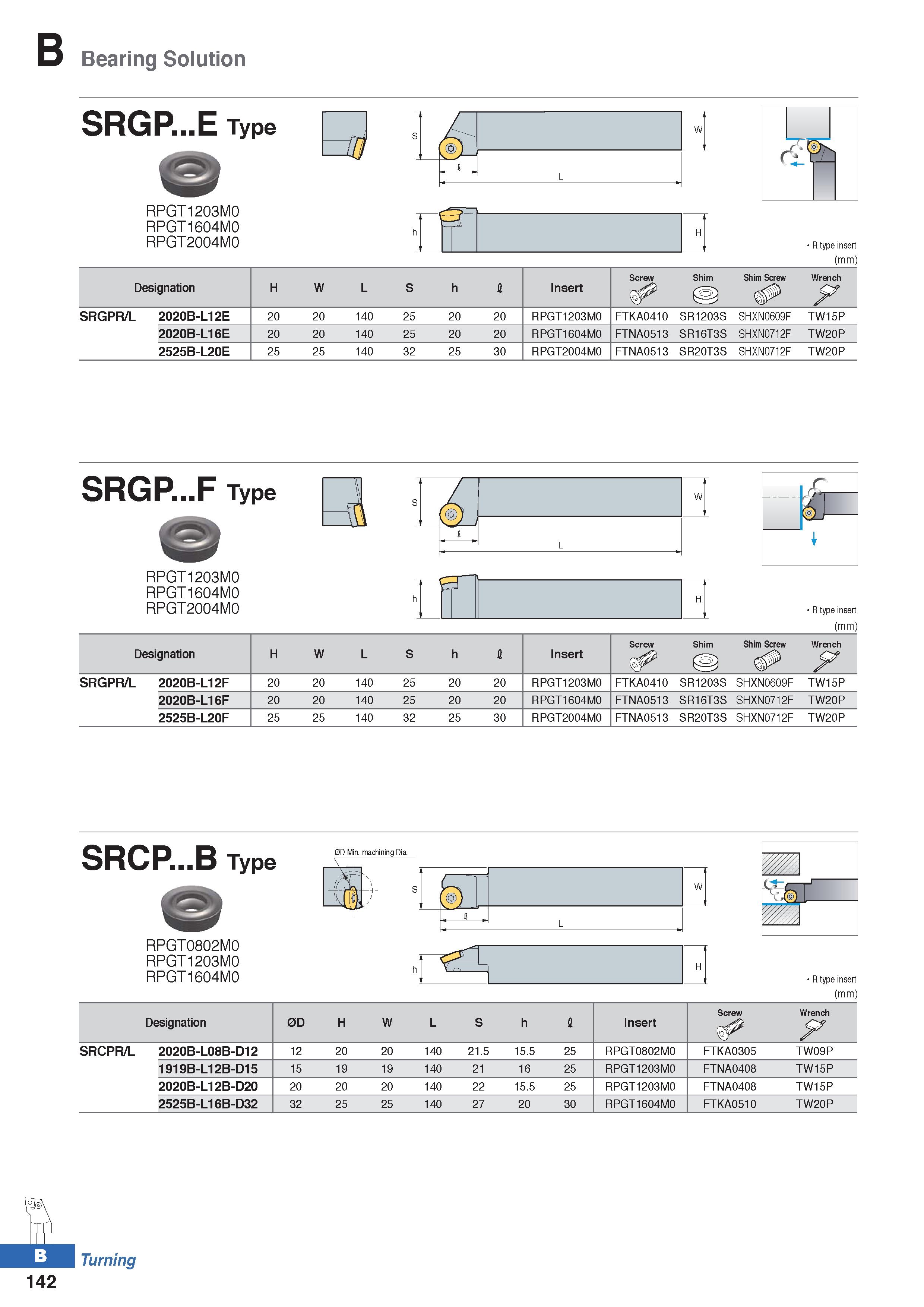

Bearing Solution SRGP...E Type RPGT1203M0 RPGT1604M0 RPGT2004M0 R type insert (mm) Screw Shim Shim Screw Wrench Designation H W L S h I Insert X SRGPR/L 2020B-L12E 20 20 140 25 20 20 RPGT1203M0 FTKA0410 SR1203S SHXN0609F TW15P 2020B-L16E 20 20 140 25 20 20 RPGT1604M0 FTNA0513 SR16T3S SHXN0712F TW20P 2525B-L20E 25 25 140 32 25 30 RPGT2004M0 FTNA0513 SR20T3S SHXN0712F TW20P W L h H SRGP...F Type (m h W " L fa RPGT1203M0 RPGT1604M0 RPGT2004M0 i C r 3" i H ' R type insert (mm) Designation H W L S h I Insert Screw ( Shim Shim Screw Wrench y SRGPR/L 2020B-L12F 20 20 140 25 20 20 RPGT1203M0 FTKA0410 SR1203S SHXN0609F TW15P 2020B-L16F 20 20 140 25 20 20 RPGT1604M0 FTNA0513 SR16T3S SHXN0712F TW20P 2525B-L20F 25 25 140 32 25 30 RPGT2004M0 FTNA0513 SR20T3S SHXN0712F TW20P h SRCP... B Type 0D Min. machining Dia. W I L RPGT0802M0 RPGT1203M0 RPGT1604M0 R type insert (mm) Designation 0D H W L S h I Insert Screw Wrench SRCPR/L 2020B-L08B-D12 12 20 20 140 21.5 15.5 25 RPGT0802M0 FTKA0305 TW09P 1919B-L12B-D15 15 19 19 140 21 16 25 RPGT1203M0 FTNA0408 TW15P 2020B-L12B-D20 20 20 20 140 22 15.5 25 RPGT1203M0 FTNA0408 TW15P 2525B-L16B-D32 32 25 25 140 27 20 30 RPGT1604M0 FTKA0510 TW20P S H h
