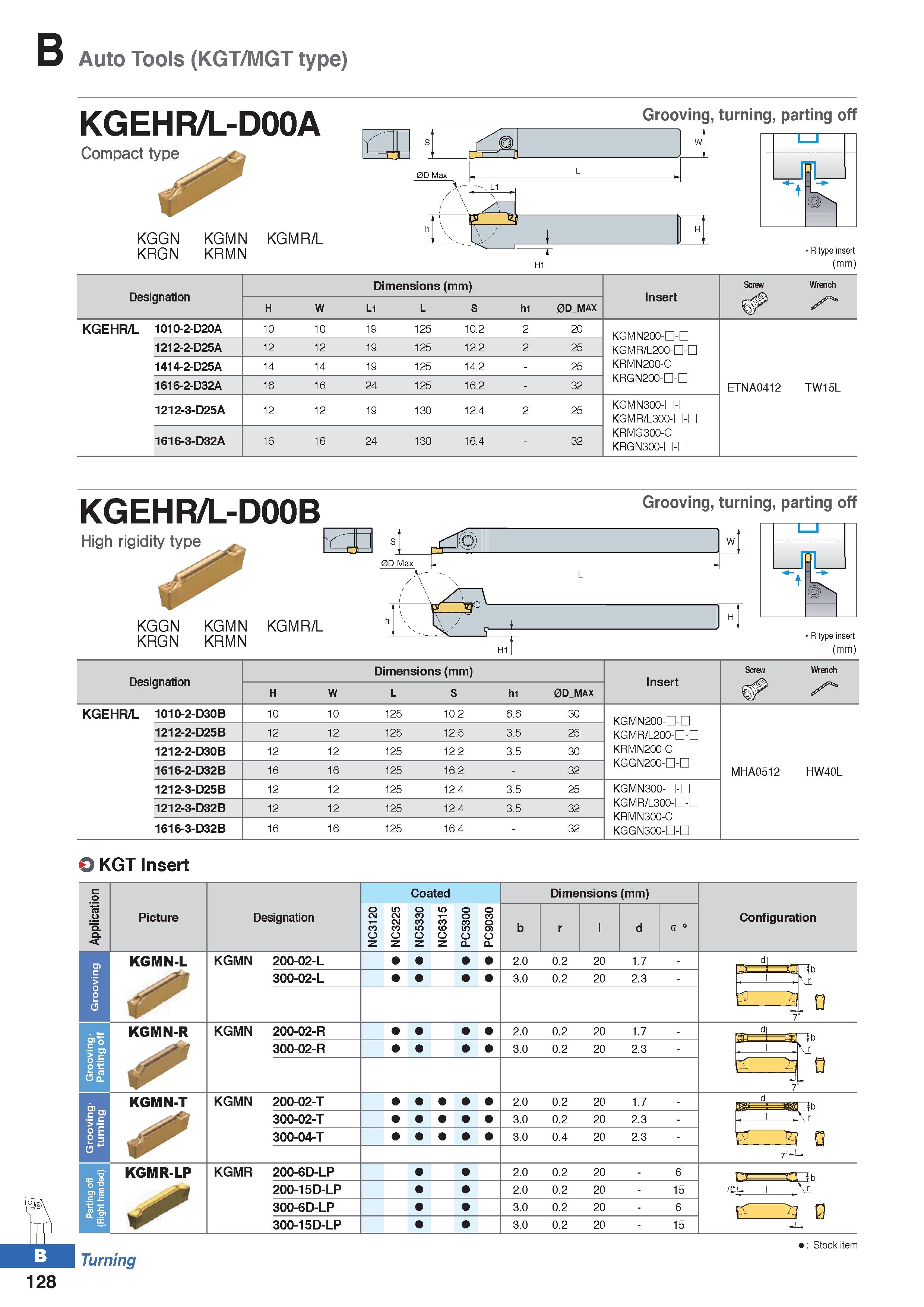

B Auto Tools (KGT/MGT type) KGEHR/L-DOOA Compact type Grooving, turning, parting off KGGN KGMN KGMR/L KRGN KRMN R type insert (mm) Designation Dimensions (mm) Insert Screw Wrench H W L1 L S hi 0D MAX y KGEHR/L 1010-2-D20A 10 10 19 125 10.2 2 20 KGMN200-D-D KGMR/L200-D-D 1212-2-D25A 12 12 19 125 12.2 2 25 1414-2-D25A 14 14 19 125 14.2 - 25 KRMN200-C KRGN200-D-D 1616-2-D32A 16 16 24 125 16.2 - 32 ETNA0412 TW15L 1212-3-D25A 12 12 19 130 12.4 2 25 KGMN300-D-D KGMR/L300-D-D 1616-3-D32A 16 16 24 130 16.4 - 32 KRMG300-C KRGN300-D-D KGEHR/L-D00B High rigidity type Grooving, turning, parting off KGGN KGMN KGMR/L KRGN KRMN (mm) Designation Dimensions (mm) Insert Screw Wrench H W L S hi 0D MAX X" KGEHR/L 1010-2-D30B 10 10 125 10.2 6.6 30 KGMN200-D-D KGMR/L200-D-D 1212-2-D25B 12 12 125 12.5 3.5 25 1212-2-D30B 12 12 125 12.2 3.5 30 KRMN200-C KGGN200-D-D 1616-2-D32B 16 16 125 16.2 - 32 MHA0512 HW40L 1212-3-D25B 12 12 125 12.4 3.5 25 KGMN300-D-D 1212-3-D32B 12 12 125 12.4 3.5 32 KGMR/L300-D-D KRMN300-C KGGN300-D-D 1616-3-D32B 16 16 125 16.4 - 32 O KGT Insert 128 Picture Turning Designation KGMN 200-02-L 300-02-L KGMN 200-02-R 300-02-R KGMN 200-02-T 300-02-T 300-04-T KGMR 200-6D-LP 200-15D-LP 300-6D-LP 300-15D-LP Coated o m 10 C Dimensions (mm) 2.0 0.2 20 1.7 3.0 0.2 20 2.3 2.0 0.2 20 1.7 3.0 0.2 20 2.3 2.0 0.2 20 1.7 3.0 0.2 20 2.3 3.0 0.4 20 2.3 2.0 0.2 20 2.0 0.2 20 15 3.0 0.2 20 3.0 0.2 20 15 Configuration : Stock item b 6 a 6
