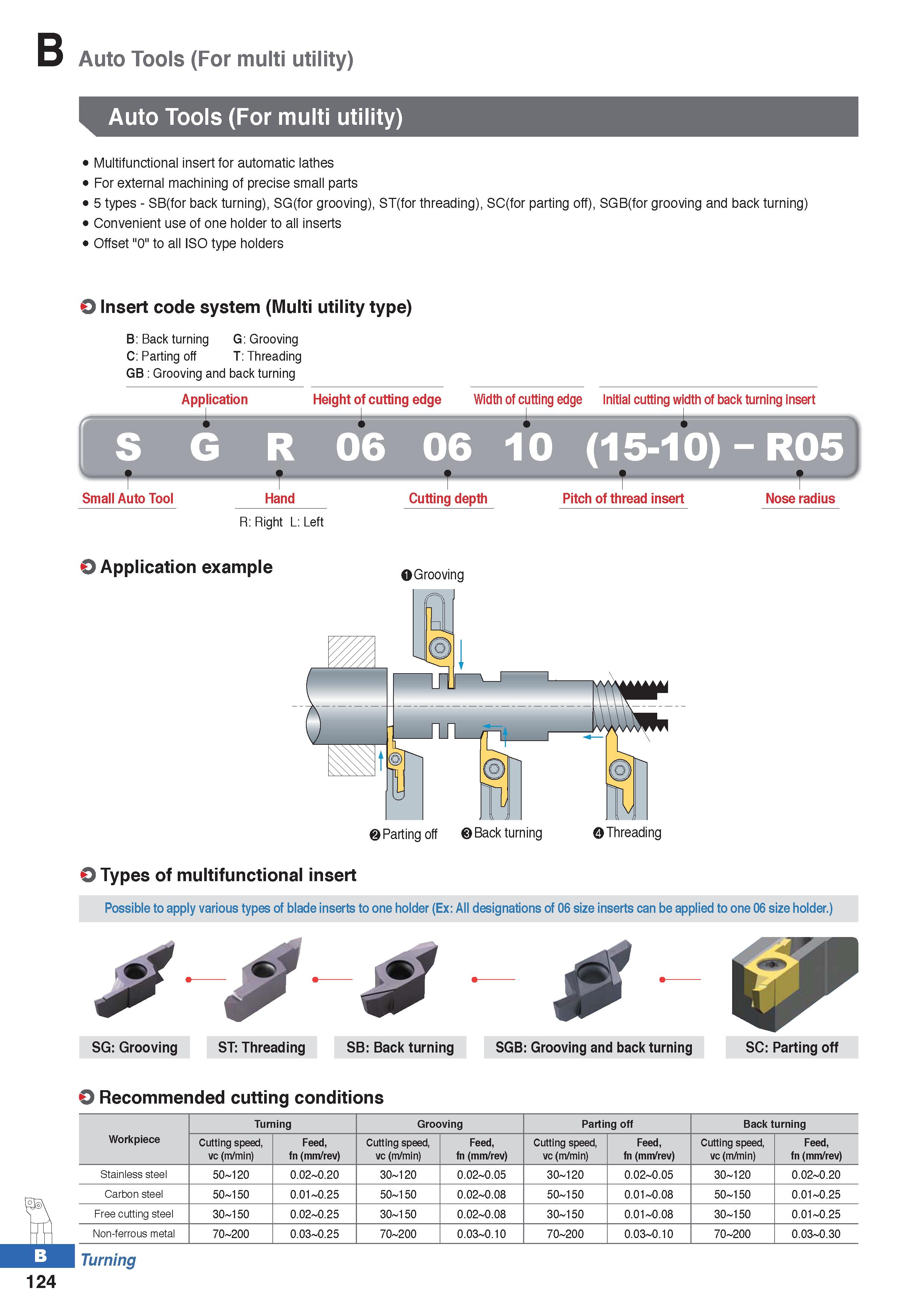

Auto Tools (For multi utility) Auto Tools (For multi utility) Multifunctional insert for automatic lathes For external machining of precise small parts 5 types - SB(for back turning), SG(for grooving), ST(for threading), SC(for parting off), SGB(for grooving and back turning) Convenient use of one holder to all inserts Offset "0" to all ISO type holders Insert code system (Multi utility type) B: Back turning G: Grooving C: Parting off T: Threading GB : Grooving and back turning Application Height of cutting edge Width of cutting edge Initial cutting width of back turning insert S G R 06 06 10 I (15-10 R05 Small Auto Tool Hand R: Right L: Left Application example Cutting depth O Grooving Pitch of thread insert Nose radius Parting off Back turning Threading Types of multifunctional insert Possible to apply various types of blade inserts to one holder (Ex: All designations of 06 size inserts can be applied to one 06 size holder.) SG: Grooving ST: Threading SB: Back turning SGB: Grooving and back turning SC: Parting off O Recommended cutting conditions Workpiece Turning Grooving Parting off Back turning Cutting speed, vc (m/min) Feed, fn (mm/rev) Cutting speed, vc (m/min) Feed, fn (mm/rev) Cutting speed, vc (m/min) Feed, fn (mm/rev) Cutting speed, vc (m/min) Feed, fn (mm/rev) Stainless steel 50-120 0.02-0.20 30-120 0.02-0.05 30-120 0.02-0.05 30-120 0.02-0.20 Carbon steel 50-150 0.01-0.25 50-150 0.02-0.08 50-150 0.01-0.08 50-150 0.01-0.25 Free cutting steel 30-150 0.02-0.25 30-150 0.02-0.08 30-150 0.01-0.08 30-150 0.01-0.25 Non-ferrous metal 70-200 0.03-0.25 70-200 0.03-0.10 70-200 0.03-0.10 70-200 0.03-0.30 124 Turning
