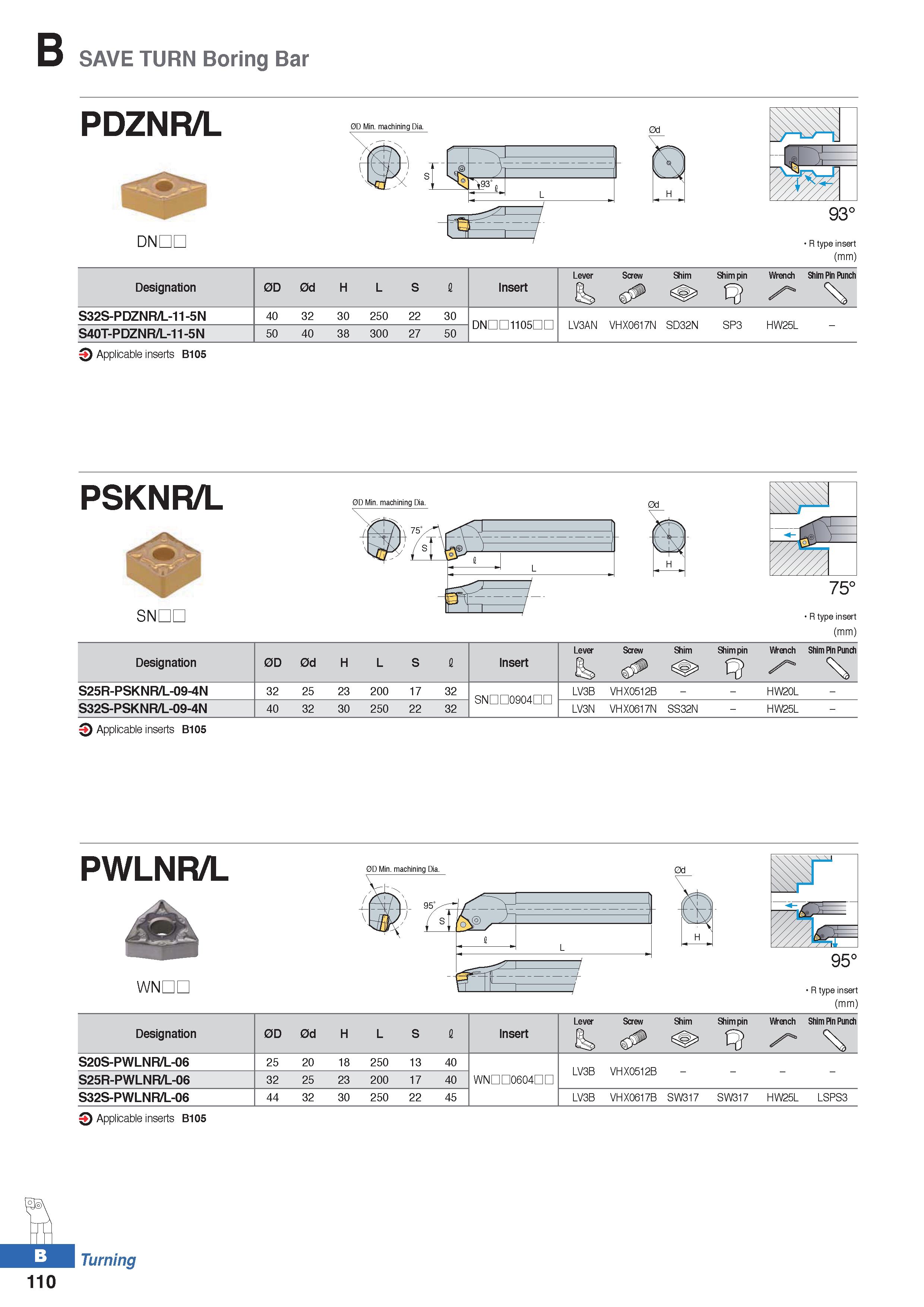

B SAVE TURN Boring Bar PDZNR/L DNDL 0D Min. machining Dia. R type insert (mm) Designation 0D 0d H L S I Insert Lever levs, Screw & Shim Shim pin Wrench Shim Pin Punch S32S-PDZNR/L-11-5N 40 32 30 250 22 30 DNDD1105nn LV3AN VHX0617N SD32N SP3 HW25L S40T-PDZNR/L-11-5N 50 40 38 300 27 50 Q Applicable inserts B105 0d H PSKNR/L SNDL 0D Min. machining Dia. R type insert (mm) Designation 0D 0d H L S I Insert Lever Screw Shim Shim pin Wrench /' Shim Pin Punch S25R-PSKNR/L-09-4N 32 25 23 200 17 32 SNDD0904nn LV3B VHX0512B HW20L - S32S-PSKNR/L-09-4N 40 32 30 250 22 32 LV3N VHX0617N SS32N - HW25L - Q Applicable inserts B105 0d H PWLNR/L 0D Min. machining Dia. WNDL R type insert (mm) Designation 0D 0d H L S I Insert Lever Screw 8 Shim Shim pin Wrench Shim Pin Punch S20S-PWLNR/L-06 25 20 18 250 13 40 LV3B VHX0512B S25R-PWLNR/L-06 32 25 23 200 17 40 WNDD0604nn S32S-PWLNR/L-06 44 32 30 250 22 45 LV3B VHX0617B SW317 SW317 HW25L LSPS3 9 Applicable inserts B105 0d
