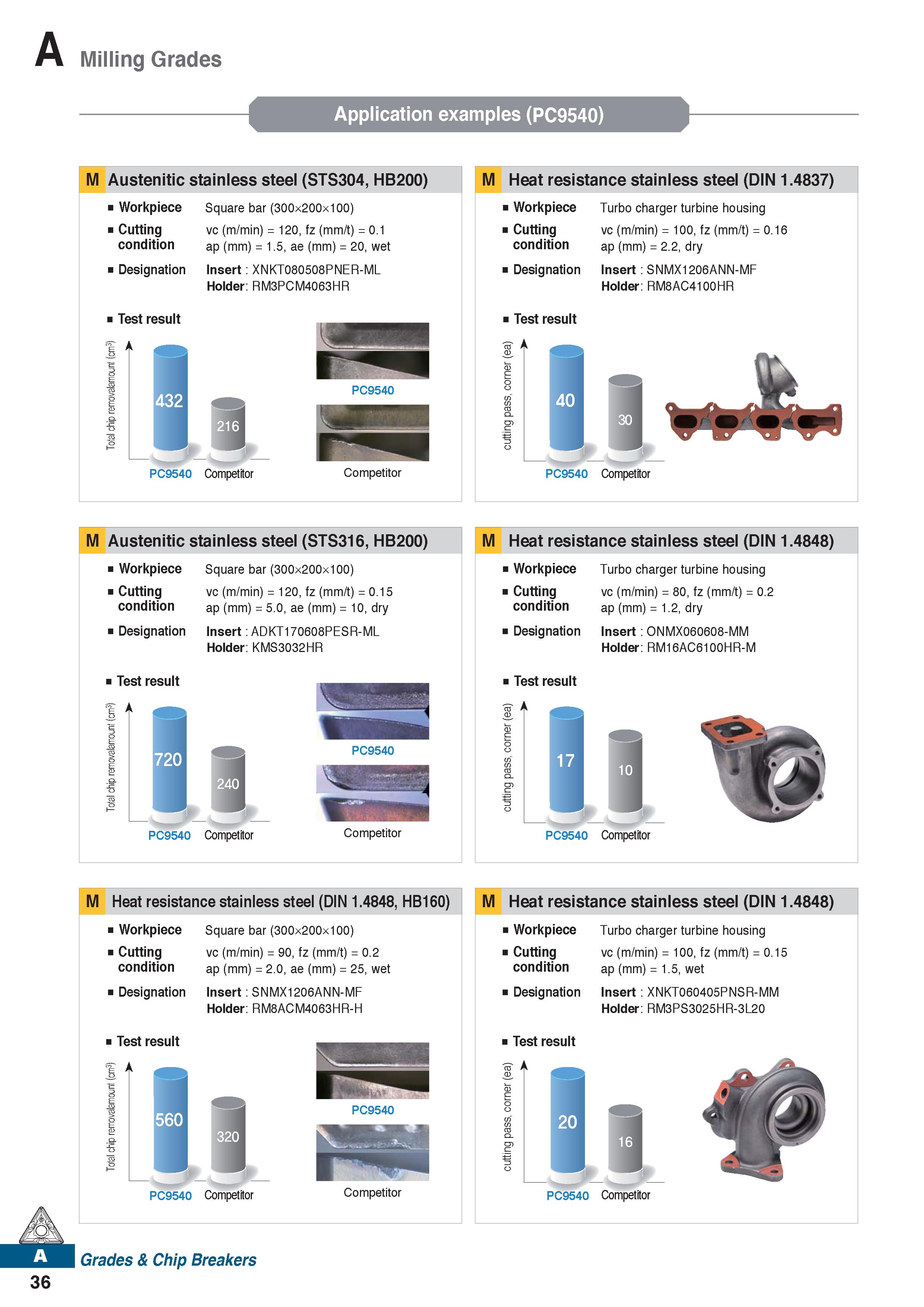

Milling Grades Application examples (PC9540) M Austenitic stainless steel (STS304, HB200) Workpiece Cutting condition Designation Test result Square bar (300x200x100) vc (m/min) = 120, fz (mm/t) = 0.1 ap (mm) = 1.5, ae (mm) = 20, wet Insert: XNKT080508PNER-ML Holder: RM3PCM4063HR PC9540 Competitor Competitor M Heat resistance stainless steel (DIN 1.4837) Workpiece Cutting condition Designation Test result Turbo charger turbine housing vc (m/min) = 100, fz (mm/t) = 0.16 ap (mm) = 2.2, dry Insert : SNMX1206ANN-MF Holder: RM8AC4100HR PC9540 Competitor M Austenitic stainless steel (STS316, HB200) Workpiece Cutting condition Designation Test result Square bar (300x200x100) vc (m/min) = 120, fz (mm/t) = 0.15 ap (mm) = 5.0, ae (mm) = 10, dry Insert : ADKT170608PESR-ML Holder: KMS3032HR PC9540 Competitor Competitor M Heat resistance stainless steel (DIN 1.4848) Workpiece Cutting condition Designation Test result Turbo charger turbine housing vc (m/min) = 80, fz (mm/t) = 0.2 ap (mm) = 1.2, dry Insert : ONMX060608-MM Holder: RM16AC6100HR-M PC9540 Competitor M Heat resistance stainless steel (DIN 1.4848, HB160) Workpiece Cutting condition Designation Test result Square bar (300x200x100) vc (m/min) = 90, fz (mm/t) = 0.2 ap (mm) = 2.0, ae (mm) = 25, wet Insert: SNMX1206ANN-MF Holder: RM8ACM4063HR-H PC9540 Competitor Grades & Chip Breakers Competitor M Heat resistance stainless steel (DIN 1.4848) Workpiece Cutting condition Designation Test result Turbo charger turbine housing vc (m/min) = 100, fz (mm/t) = 0.15 ap (mm) = 1.5, wet Insert : XNKT060405PNSR-MM Holder: RM3PS3025HR-3L20 PC9540 Competitor 36
