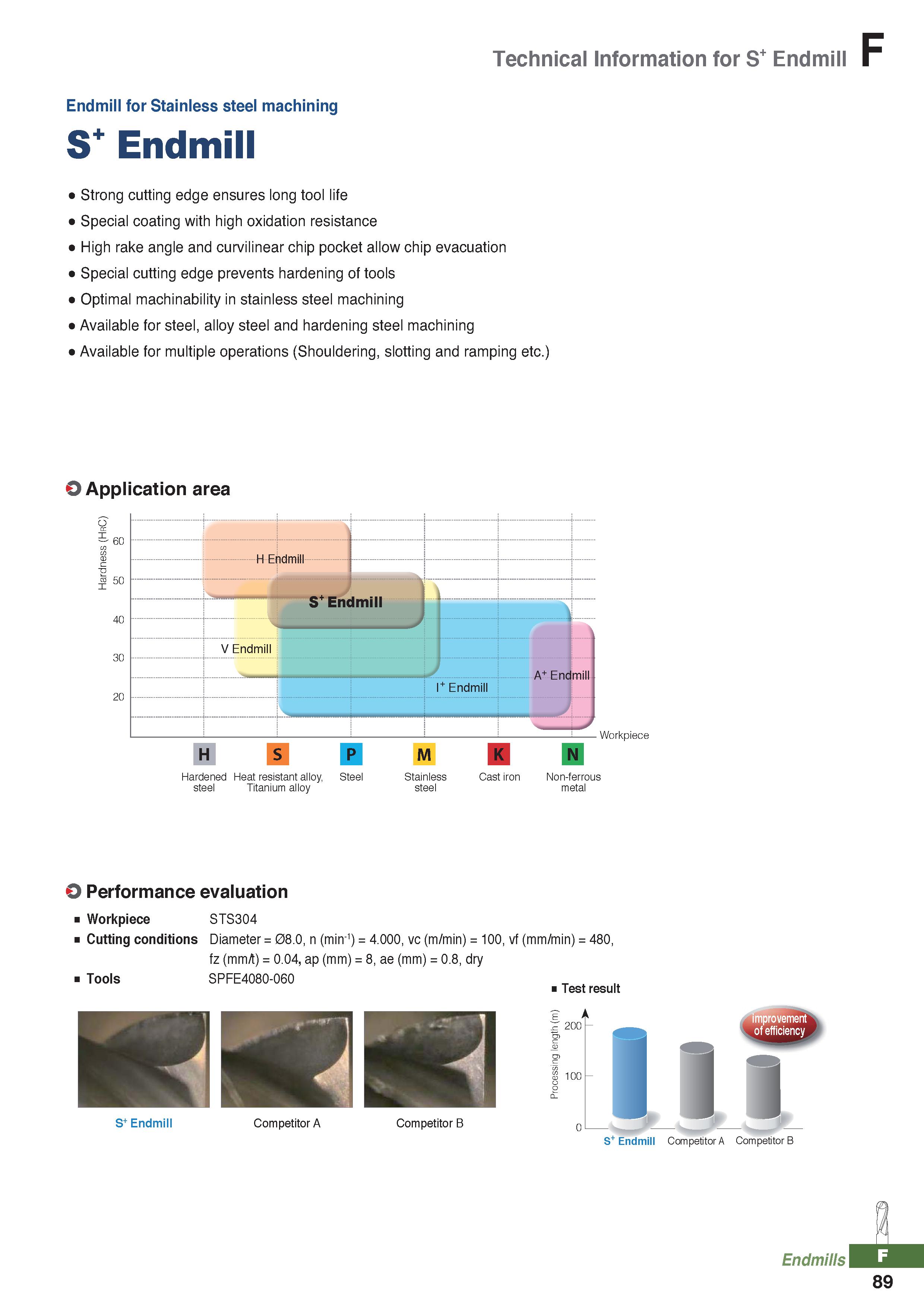

Technical Information for S+ Endmill Endmill for Stainless steel machining S+ Endmill Strong cutting edge ensures long tool life Special coating with high oxidation resistance High rake angle and curvilinear chip pocket allow chip evacuation Special cutting edge prevents hardening of tools Optimal machinability in stainless steel machining Available for steel, alloy steel and hardening steel machining Available for multiple operations (Shouldering, slotting and ramping etc.) O Application area 60 40 30 20 H Endmill S+ Endmill V Endmill M "I H P M K N Workpiece Hardened Heat resistant alloy, Steel steel Titanium alloy Stainless steel Cast iron Non-ferrous metal S O Performance evaluation Workpiece STS304 Cutting conditions Diameter = 08.0, n (min-1) = 4.000, vc (m/min) = 100, vf (mm/min) = 480, fz (mm/t) = 0.04, ap (mm) = 8, ae (mm) = 0.8, dry Tools SPFE4080-060 Test result S+ Endmill Competitor A Competitor B Endmill 89
