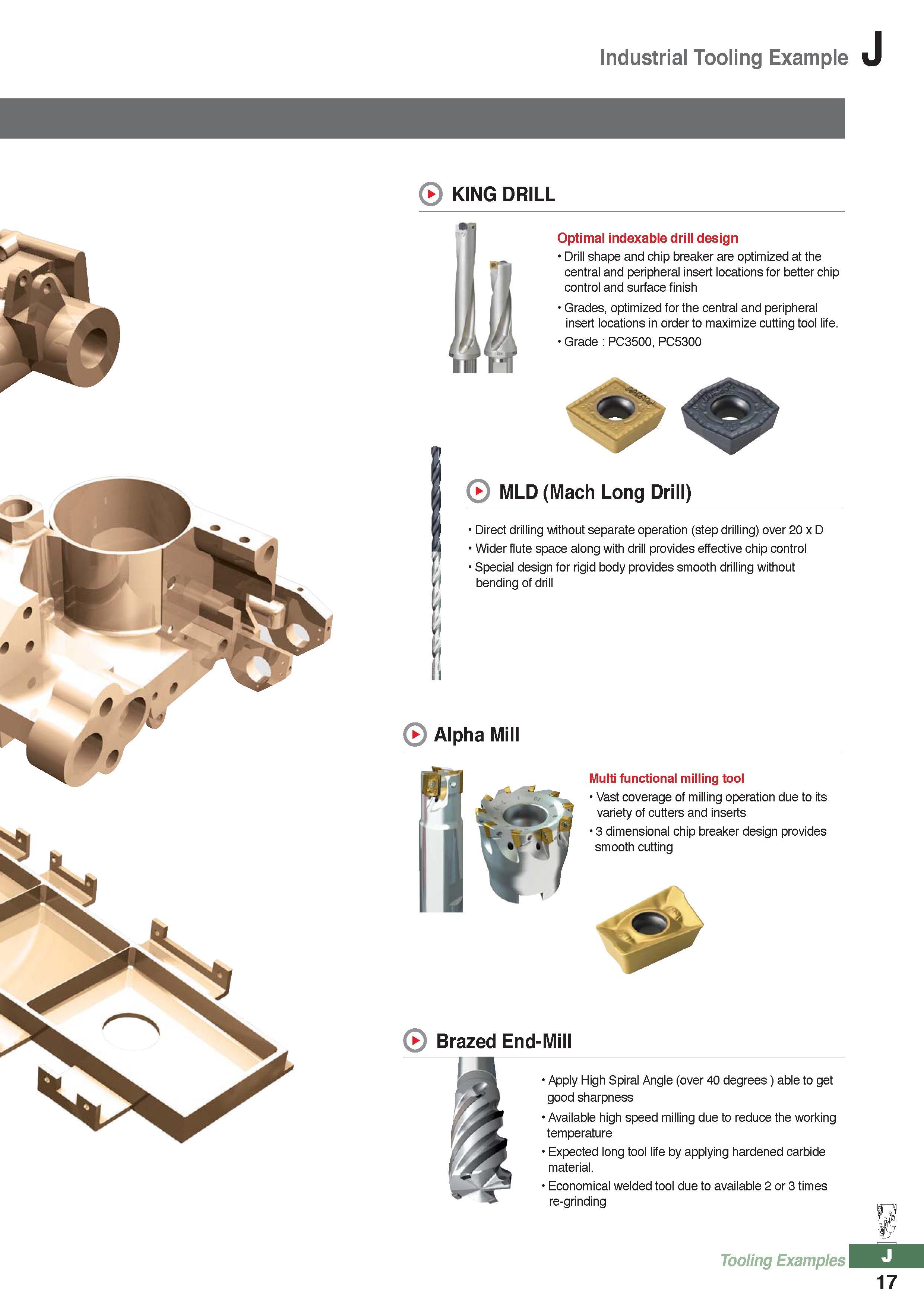

Industrial Tooling Example J KING DRILL Optimal indexable drill design Drill shape and chip breaker are optimized at the central and peripheral insert locations for better chip control and surface finish Grades, optimized for the central and peripheral insert locations in order to maximize cutting tool life. Grade PC3500, PC5300 MLD (Mach Long Drill) ti V V h Alpha Mill Direct drilling without separate operation (step drilling) over 20xD Wider flute space along with drill provides effective chip control Special design for rigid body provides smooth drilling without bending of drill Multi functional milling tool Vast coverage of milling operation due to its variety of cutters and inserts 3 dimensional chip breaker design provides smooth cutting Brazed End-Mill Apply High Spiral Angie (over 40 degrees) able to get good sharpness Available high speed milling due to reduce the working temperature Expected long tool life by applying hardened carbide material. Economical welded tool due to available 2or3 times re-grinding Tooling Examples J 17
