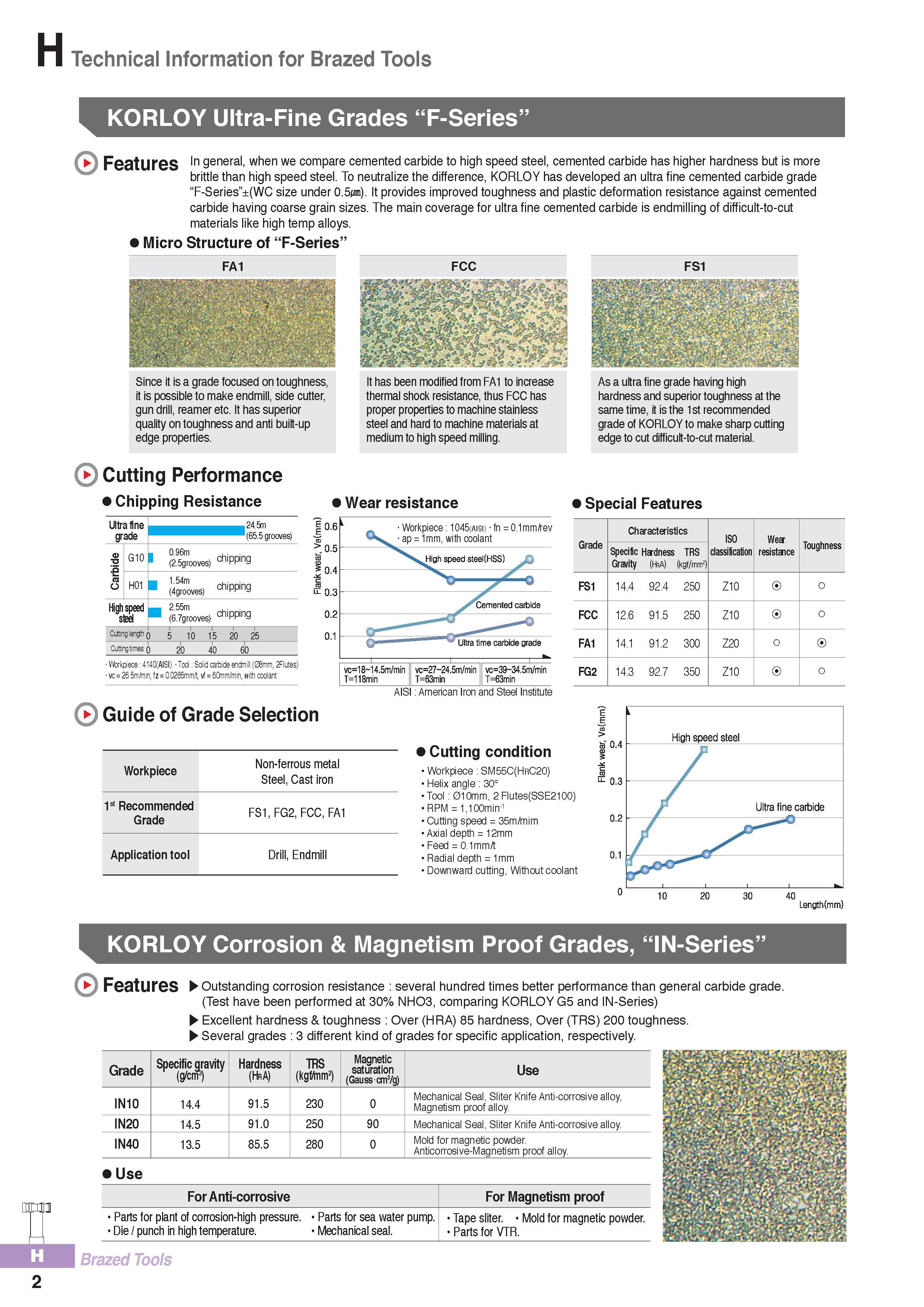

Technical Information for Brazed Tools KORLOY Ultra-Fine Grades “F-Series” Features In general, when we compare cemented carbide to high speed steel, cemented carbide has higher hardness but is more brittle than high speed steel. To neutralize the difference, KORLOY has developed an ultra fine cemented carbide grade “F-Series”±(WC size under 0.5 ni). It provides improved toughness and plastic deformation resistance against cemented carbide having coarse grain sizes. The main coverage for ultra fine cemented carbide is endmilling of difficult-to-cut materials like high temp alloys. Micro Structure of “F-Series” FA1 FCC FS1 Since it is a grade focused on toughness, it is possible to make endmill, side cutter, gun drill, reamer etc. It has superior quality on toughness and anti built-up edge properties. It has been modified from FA1 to increase thermal shock resistance, thus FCC has proper properties to machine stainless steel and hard to machine materials at medium to high speed milling. As a ultra fine grade having high hardness and superior toughness at the same time, it is the 1st recommended grade of KORLOY to make sharp cutting edge to cut difficult-to-cut material. Cutting Performance Chipping Resistance Wear resistance Ultra fine grade G10 H01 steel 24.5m (65.5 grooves) Workpiece 1045(aisi) fn = 0.1mm/rev ap = 1mm, with coolant 0.96m (2.5grooves) 1.54m (4grooves) 2.55m (6.7grooves) chipping chipping chipping Mmg length 5 10 15 20 25 Cutting times 0 40 60 Ultra time carbide grade Workpiece 4140(AISI) Tool Solid carbide endmill (08mm, 2Flutes) vc = 26.5m/min, fz = 0.0285mm/t, vf = 60mm/min, with coolant Guide of Grade Selection vc=18 14.5m/min T=118min vc=27 24.5m/min T=63min vc=39 34,5m/min T=63min Workpiece Non-ferrous metal Steel, Cast iron 1st Recommended Grade FS1, FG2, FCC, FA1 Application tool Drill, Endmill Special Features Grade Characteristics ISO classification Wear resistance Toughness Specific Hardness Gravity (HrA) TRS (kgf/mm2) FS1 14.4 92.4 250 Z10 0 FCC 12.6 91.5 250 Z10 0 FA1 14.1 91.2 300 Z20 0 FG2 14.3 92.7 350 Z10 0 AISI American Iron and Steel Institute Cutting condition Workpiece SM55C(HrC20) Helix angle 30° Tool 010mm, 2Flutes(SSE2100) RPM = 1,100min-1 Cutting speed = 35m/mim Axial depth = 12mm Feed = O.ImmA Radial depth = 1mm Downward cutting, Withoutcoolant Length(mm) KORLOY Corrosion & Magnetism Proof Grades, “IN-Series” Features Outstanding corrosion resistance several hundred times better performance than general carbide grade. (Test have been performed at 30% NHO3, comparing KORLOY G5 and IN-Series) Excellent hardness & toughness Over (HRA) 85 hardness, Over (TRS) 200 toughness. Several grades 3 different kind of grades for specific application, respectively. Grade Specific gravity (g/citf) Hardness (HrA) TRS (kgf/mm2) Magnetic saturation (Gausscm3/g) Use IN10 14.4 91.5 230 0 Mechanical Seal, Sliter Knife Anti-corrosive alloy, Magnetism proof alloy. IN20 14.5 91.0 250 90 Mechanical Seal, Sliter Knife Anti-corrosive alloy. IN40 13.5 85.5 280 0 Mold for magnetic powder. Anticorrosive-Magnetism proof alloy. Use For Anti-corrosive For Magnetism proof Parts for plant of corrosion-high pressure. Parts for sea water pump. Die 1 punch in high temperature. Mechanical seal. Tape sliter. Mold for magnetic powder. Parts for VTR. Brazed Tools 2 20
