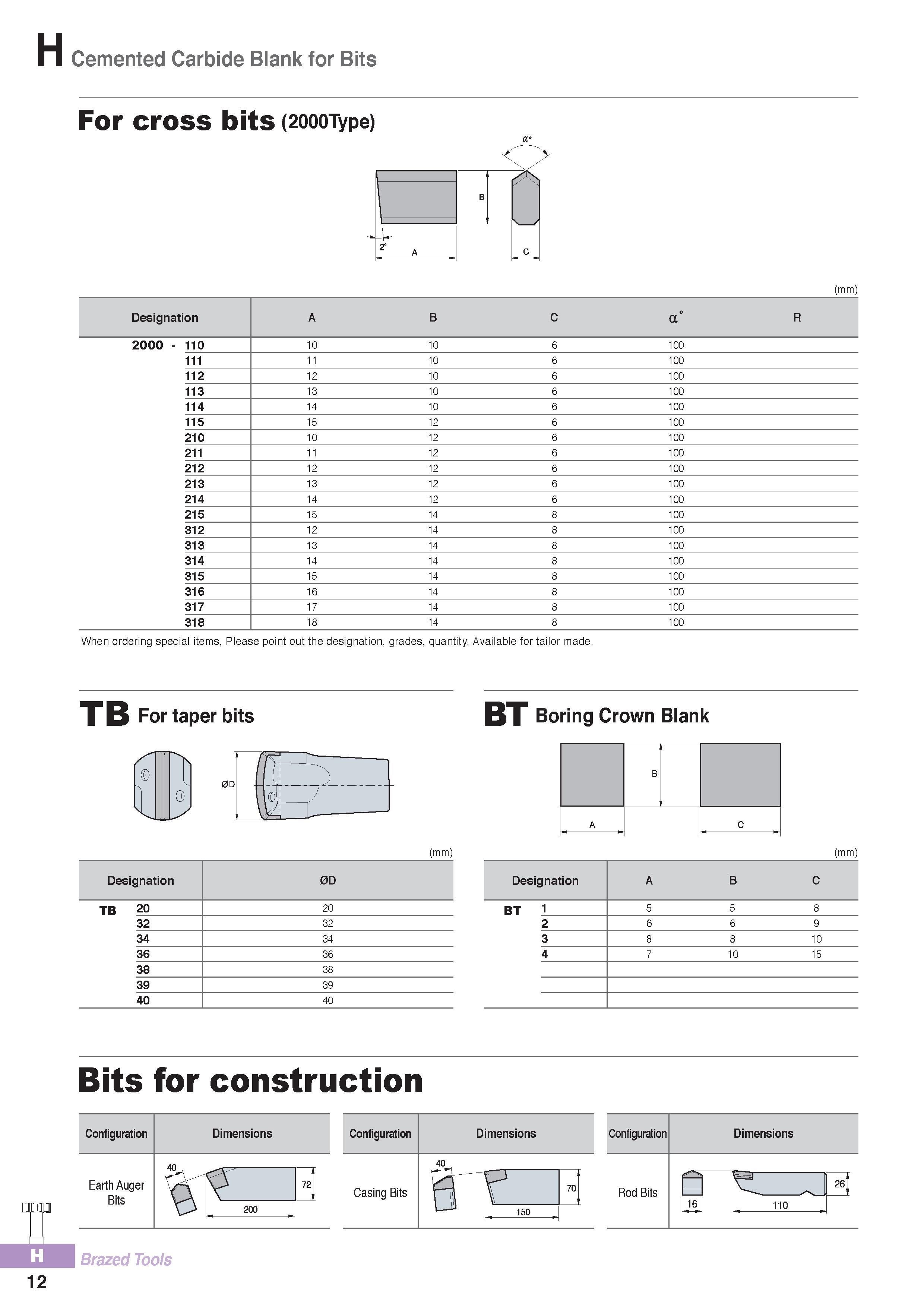

Cemented Carbide Blank for Bits For cross bits (2000Type) fl B \ 4 2' A C (mm) Designation A B C a R 2000 - 110 10 10 6 100 111 11 10 6 100 112 12 10 6 100 113 13 10 6 100 114 14 10 6 100 115 15 12 6 100 210 10 12 6 100 211 11 12 6 100 212 12 12 6 100 213 13 12 6 100 214 14 12 6 100 215 15 14 8 100 312 12 14 8 100 313 13 14 8 100 314 14 14 8 100 315 15 14 8 100 316 16 14 8 100 317 17 14 8 100 318 18 14 8 100 When ordering special items, Please point out the designation, grades, quantity. Available for tailor made. TB For taper bits ( ) BT Boring Crown Blank B A c (mm) (mm) Designation 0D Designation A B C TB 20 20 BT 1 5 5 8 32 32 2 6 6 9 34 34 3 8 8 10 36 36 4 7 10 15 38 38 39 39 40 40 Bits for construction Configuration Jrn Earth Auger Bits Dimensions i 72 200 Configuration Dimensions Casing Bits 40 r ii 70 150 Brazed Tools 12
