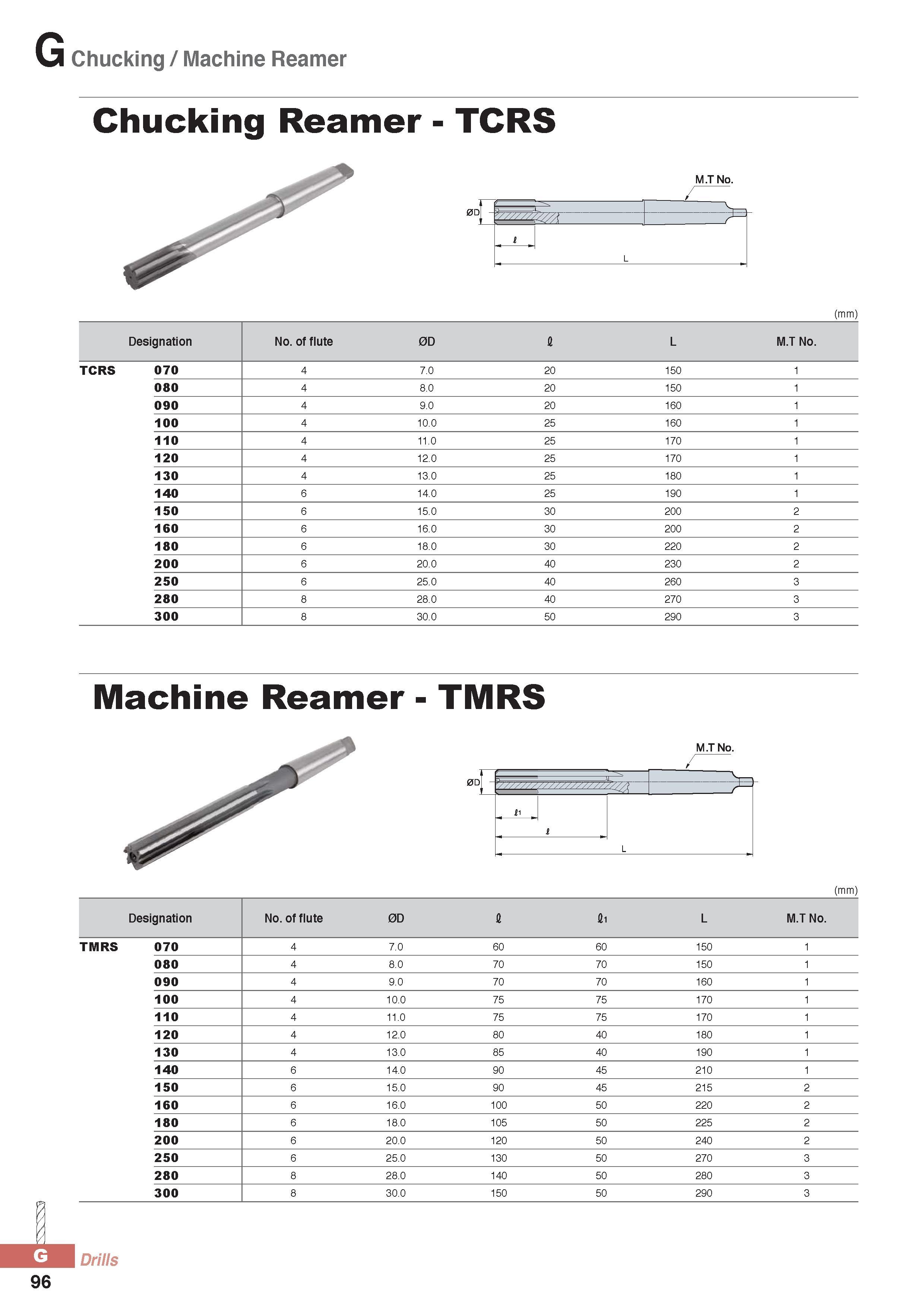

Chucking / Machine Reamer Chucking Reamer - TCRS M .T No. (mm) Designation No. of flute 0D l L M.T No. TCRS 070 4 7.0 20 150 1 080 4 8.0 20 150 1 090 4 9.0 20 160 1 100 4 10.0 25 160 1 110 4 11.0 25 170 1 120 4 12.0 25 170 1 130 4 13.0 25 180 1 140 6 14.0 25 190 1 150 6 15.0 30 200 2 160 6 16.0 30 200 2 180 6 18.0 30 220 2 200 6 20.0 40 230 2 250 6 25.0 40 260 3 280 8 28.0 40 270 3 300 8 30.0 50 290 3 Machine Reamer - TMRS Designation No. of flute 0D l li L M.T No. TMRS 070 4 7.0 60 60 150 1 080 4 8.0 70 70 150 1 090 4 9.0 70 70 160 1 100 4 10.0 75 75 170 1 110 4 11.0 75 75 170 1 120 4 12.0 80 40 180 1 130 4 13.0 85 40 190 1 140 6 14.0 90 45 210 1 150 6 15.0 90 45 215 2 160 6 16.0 100 50 220 2 180 6 18.0 105 50 225 2 200 6 20.0 120 50 240 2 250 6 25.0 130 50 270 3 280 8 28.0 140 50 280 3 300 8 30.0 150 50 290 3 -L_ G Drills 96 M .T No. (mm)
