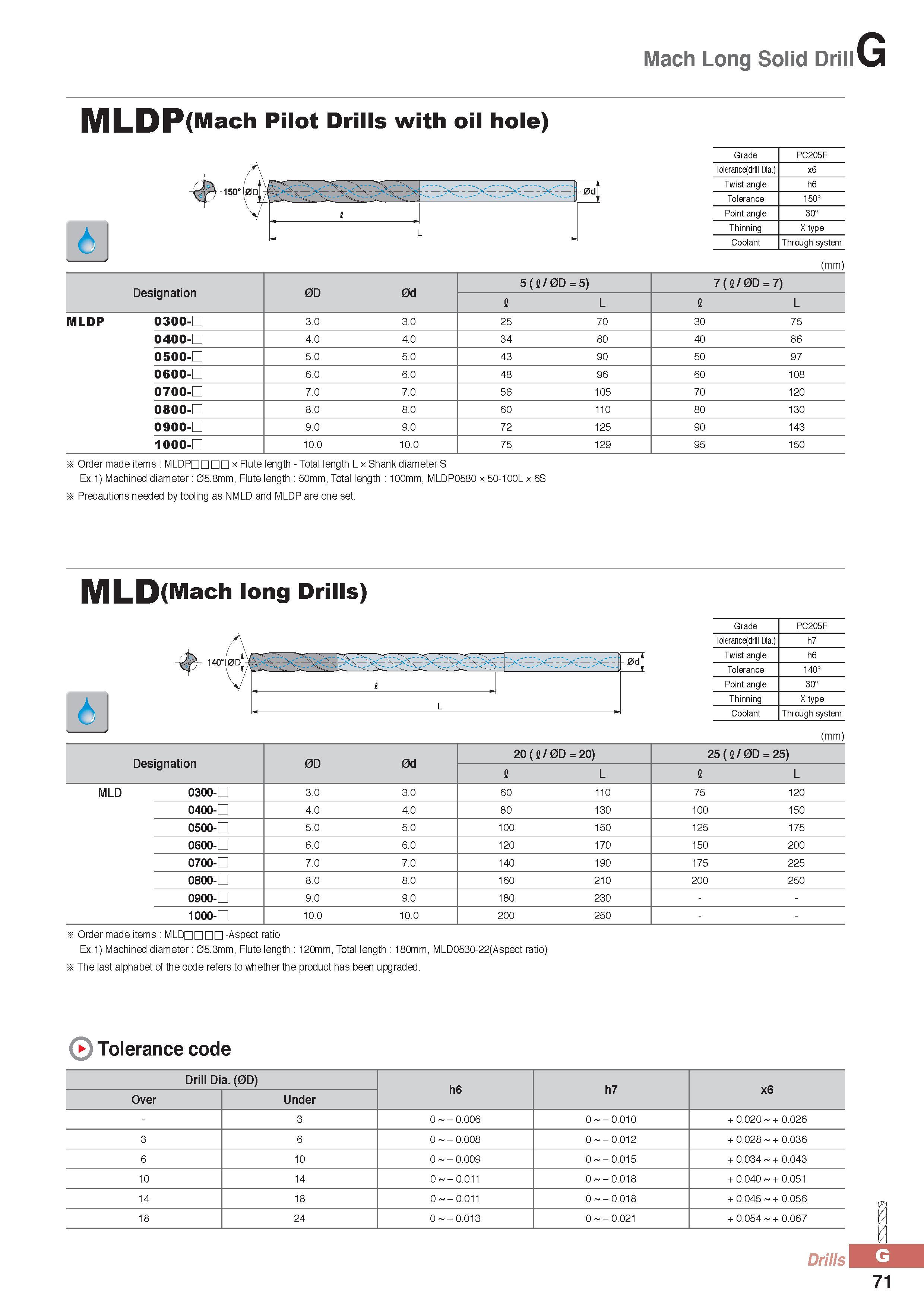

Mach Long Solid Drill MLDP(Mach Pilot Drills with oil hole) 0dj I Grade PC205F Tolerance(drill Dia.) x6 Twist angle h6 Tolerance 150° Point angle 30° Thinning X type Coolant Through system (mm) Designation 0D 0d 5 (fi/ 0D = 5) 7 (fi/ 0D = 7) I L I L MLDP 0300-n 3.0 3.0 25 70 30 75 0400-D 4.0 4.0 34 80 40 86 0500-D 5.0 5.0 43 90 50 97 0600-D 6.0 6.0 48 96 60 108 0700-D 7.0 7.0 56 105 70 120 0800-D 8.0 8.0 60 110 80 130 0900-D 9.0 9.0 72 125 90 143 1000-D 10.0 10.0 75 129 95 150 x Order made items MLDPDD x Flute length - Total length L x Shank diameter S Ex.1) Machined diameter 05.8mm, Flute length 50mm, Total length 100mm, MLDP0580 x 50-100L x 6S x Precautions needed by tooling as NMLD and MLDP are one set. MLD(Mach long Drills) 0dT Grade PC205F Tolerance(drill Dia.) h7 Twist angle h6 Tolerance 140° Point angle 30° Thinning X type Coolant Through system (mm) Designation 0D 0d 2O (fi/ 0D = 2O) 25 (fi/ 0D = 25) I L I L MLD O3OO-D 3.0 3.0 60 110 75 120 O4OO-D 4.0 4.0 80 130 100 150 O5OO-D 5.0 5.0 100 150 125 175 O6OO-D 6.0 6.0 120 170 150 200 O7OO-D 7.0 7.0 140 190 175 225 O8OO-D 8.0 8.0 160 210 200 250 O9OO-D 9.0 9.0 180 230 1OOO-D 10.0 10.0 200 250 Order made items MLDDD -Aspect ratio Ex.1) Machined diameter 05.3mm, Flute length 120mm, Total length 180mm, MLD0530-22(Aspect ratio) The last alphabet of the code refers to whether the product has been upgraded. Tolerance code Drill Dia. (0D) h6 h7 x6 Over Under 3 0 - 0.006 0 - 0.010 + 0.020 + 0.026 3 6 0 - 0.008 0 - 0.012 + 0.028 + 0.036 6 10 0 - 0.009 0 - 0.015 + 0.034 + 0.043 10 14 0 - 0.011 0 - 0.018 + 0.040 + 0.051 14 18 0 - 0.011 0 - 0.018 + 0.045 + 0.056 18 24 0 - 0.013 0 - 0.021 + 0.054 + 0.067 Drills J. 71
