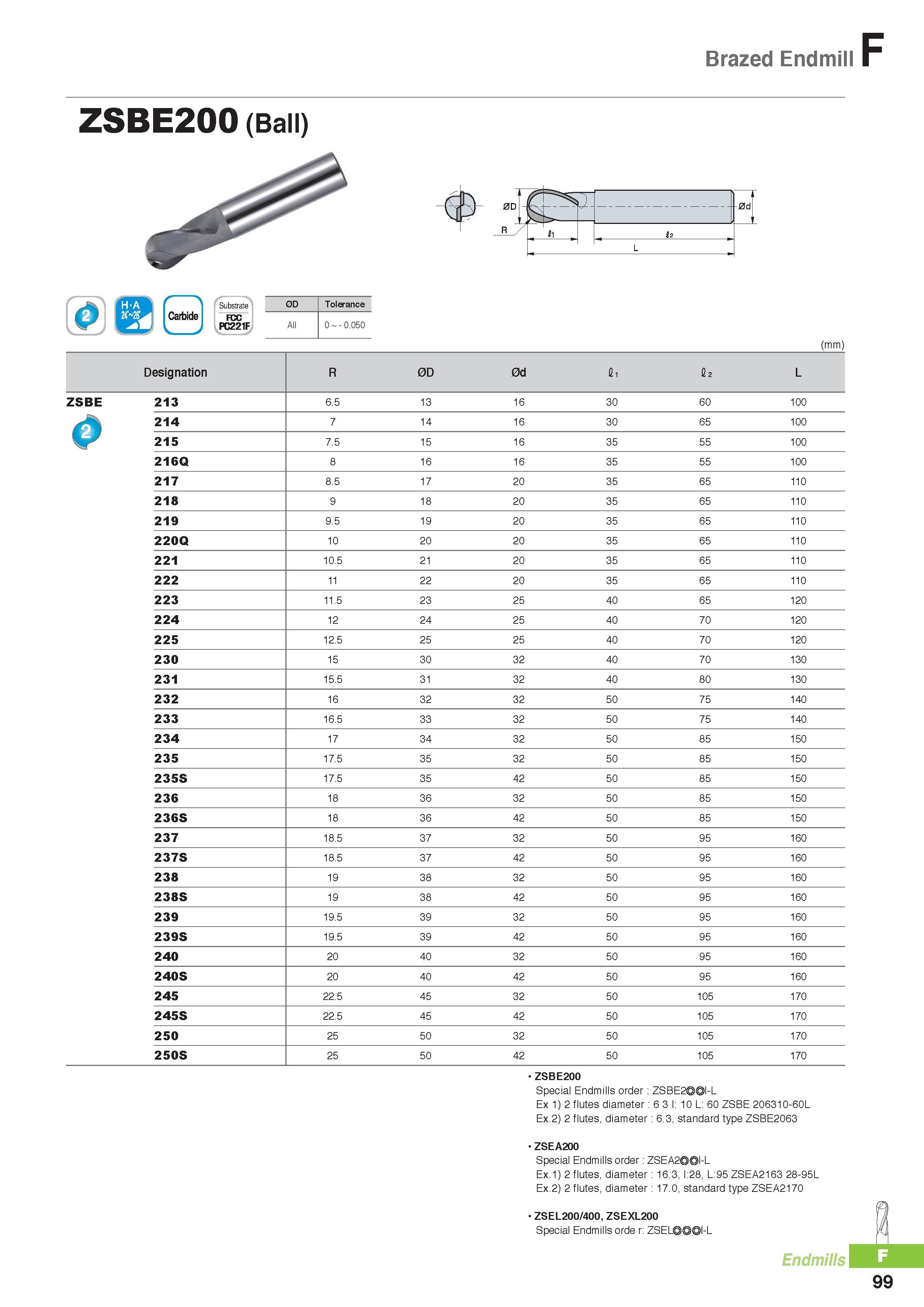

Brazed Endmill ZSBE200 (Ball) 0 Carbide Substrate 0D Tolerance FCC PC221F All 0 - 0.050 (mm) Designation R 0D 0d fli G2 L ZSBE 213 6.5 13 16 30 60 100 214 7 14 16 30 65 100 215 7.5 15 16 35 55 100 216Q 8 16 16 35 55 100 217 8.5 17 20 35 65 110 218 9 18 20 35 65 110 219 9.5 19 20 35 65 110 220Q 10 20 20 35 65 110 221 10.5 21 20 35 65 110 222 11 22 20 35 65 110 223 11.5 23 25 40 65 120 224 12 24 25 40 70 120 225 12.5 25 25 40 70 120 230 15 30 32 40 70 130 231 15.5 31 32 40 80 130 232 16 32 32 50 75 140 233 16.5 33 32 50 75 140 234 17 34 32 50 85 150 235 17.5 35 32 50 85 150 235S 17.5 35 42 50 85 150 236 18 36 32 50 85 150 236S 18 36 42 50 85 150 237 18.5 37 32 50 95 160 237S 18.5 37 42 50 95 160 238 19 38 32 50 95 160 238S 19 38 42 50 95 160 239 19.5 39 32 50 95 160 239S 19.5 39 42 50 95 160 240 20 40 32 50 95 160 240S 20 40 42 50 95 160 245 22.5 45 32 50 105 170 245S 22.5 45 42 50 105 170 250 25 50 32 50 105 170 250S 25 50 42 50 105 170 ZSBE200 Special Endmills order ZSBE2 l-L Ex 1) 2 flutes diameter 6 3 l: 10 L: 60 ZSBE 206310-60L Ex.2) 2 flutes, diameter 6.3, standard type ZSBE2063 ZSEA200 Special Endmills order ZSEA2 l-L Ex.1) 2 flutes, diameter 16.3, l:28, L:95 ZSEA2163 28-95L Ex.2) 2 flutes, diameter 17.0, standard type ZSEA2170 ZSEL200/400, ZSEXL200 Special Endmills orde r: ZSEL l-L Endmills J. 99
