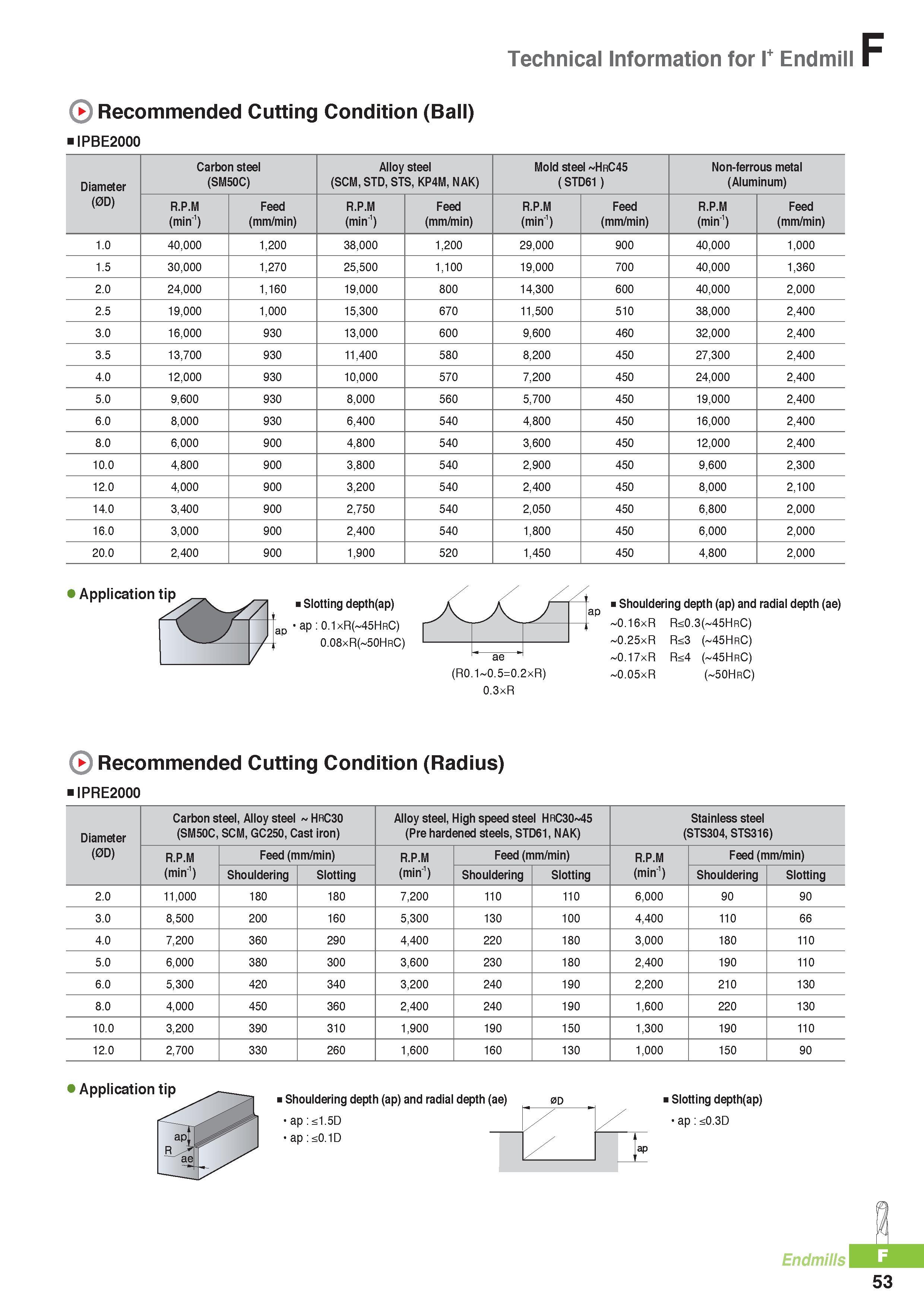

Technical Information for I+ Endmill Recommended Cutting Condition (Ball) IPBE2000 Carbon steel Alloy steel Mold steel HrC45 Non-ferrous metal Diameter (SM50C) (SCM, STD, STS, KP4M, NAK) ( STD61 ) (Aluminum) (0D) R.P.M Feed R.P.M Feed R.P.M Feed R.P.M Feed (min-1) (mm/min) (min-1) (mm/min) (min1) (mm/min) (min-1) (mm/min) 1.0 40,000 1,200 38,000 1,200 29,000 900 40,000 1,000 1.5 30,000 1,270 25,500 1,100 19,000 700 40,000 1,360 2.0 24,000 1,160 19,000 800 14,300 600 40,000 2,000 2.5 19,000 1,000 15,300 670 11,500 510 38,000 2,400 3.0 16,000 930 13,000 600 9,600 460 32,000 2,400 3.5 13,700 930 11,400 580 8,200 450 27,300 2,400 4.0 12,000 930 10,000 570 7,200 450 24,000 2,400 5.0 9,600 930 8,000 560 5,700 450 19,000 2,400 6.0 8,000 930 6,400 540 4,800 450 16,000 2,400 8.0 6,000 900 4,800 540 3,600 450 12,000 2,400 10.0 4,800 900 3,800 540 2,900 450 9,600 2,300 12.0 4,000 900 3,200 540 2,400 450 8,000 2,100 14.0 3,400 900 2,750 540 2,050 450 6,800 2,000 16.0 3,000 900 2,400 540 1,800 450 6,000 2,000 20.0 2,400 900 1,900 520 1,450 450 4,800 2,000 Application tip Slotting depth(ap) ap: 0.1xR( 45HrC) 0.08xR( 50HrC) - - (R0.1 0.5=0.2xR) 0.3xR ap Shouldering depth (ap) and radial depth (ae) 0.16xR R<0.3( 45HrC) 0.25xR R<3 ( 45HrC) 0.17xR R<4 ( 45HrC) 0.05xR ( 50HrC) Recommended Cutting Condition (Radius) IPRE2000 Diameter (0D) Carbon steel, Alloy steel HRC30 (SM50C, SCM, GC250, Cast iron) Alloy steel, High speed steel HrC30 45 (Pre hardened steels, STD61, NAK) Stainless steel (STS304, STS316) R.P.M (min1) Feed (mm/min) R.P.M (min1) Feed (mm/min) R.P.M (min1) Feed (mm/min) Shouldering Slotting Shouldering Slotting Shouldering Slotting 2.0 11,000 180 180 7,200 110 110 6,000 90 90 3.0 8,500 200 160 5,300 130 100 4,400 110 66 4.0 7,200 360 290 4,400 220 180 3,000 180 110 5.0 6,000 380 300 3,600 230 180 2,400 190 110 6.0 5,300 420 340 3,200 240 190 2,200 210 130 8.0 4,000 450 360 2,400 240 190 1,600 220 130 10.0 3,200 390 310 1,900 190 150 1,300 190 110 12.0 2,700 330 260 1,600 160 130 1,000 150 90 Shouldering depth (ap) and radial depth (ae) 0D ap: <1.5D ap:<0.1D f lap Slotting depth(ap) ap: <0.3D Endmill 53
