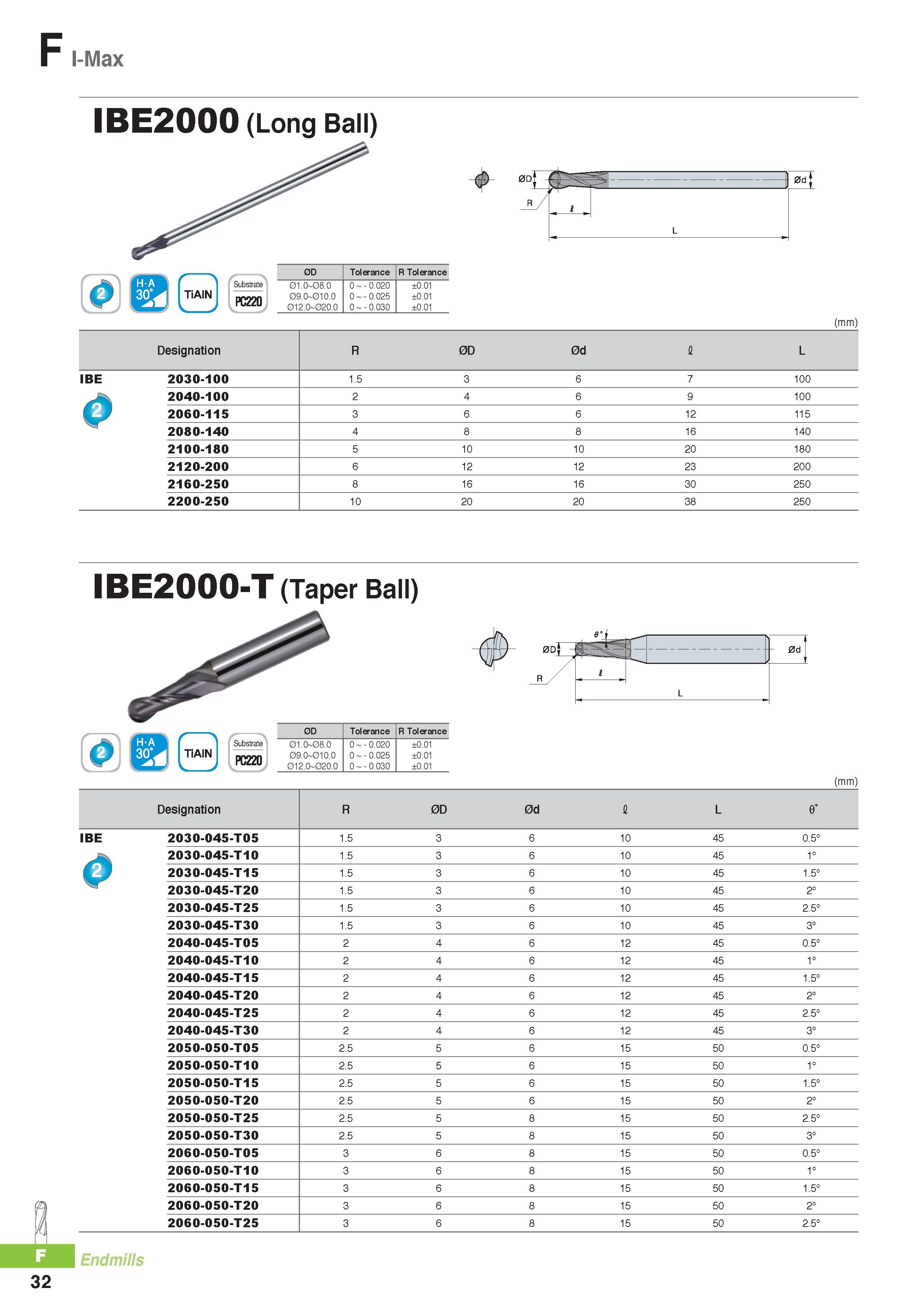

I-Max IBE2000 (Long Ball) 0 TiAIN PC220 0D Tolerance R Tolerance 01.0 08.0 0 - 0.020 ±0.01 09.0 010.0 0 - 0.025 ±0.01 012.0 020.0 0 - 0.030 ±0.01 (mm) Designation R 0D 0d fl L IBE 2030-100 1.5 3 6 7 100 0 2040-100 2 4 6 9 100 2060-115 3 6 6 12 115 2080-140 4 8 8 16 140 2100-180 5 10 10 20 180 2120-200 6 12 12 23 200 2160-250 8 16 16 30 250 2200-250 10 20 20 38 250 Substrate IBE2000-T (Taper Ball) (mm) Designation R 0D 0d fl L 0° IBE 2030-045-T05 1.5 3 6 10 45 0.5° 2030-045-T10 1.5 3 6 10 45 1° 0 2030-045-T15 1.5 3 6 10 45 1.5° 2030-045-T20 1.5 3 6 10 45 2° 2030-045-T25 1.5 3 6 10 45 2.5° 2030-045-T30 1.5 3 6 10 45 3° 2040-045-T05 2 4 6 12 45 0.5° 2040-045-T10 2 4 6 12 45 1° 2040-045-T15 2 4 6 12 45 1.5° 2040-045-T20 2 4 6 12 45 2° 2040-045-T25 2 4 6 12 45 2.5° 2040-045-T30 2 4 6 12 45 3° 2050-050-T05 2.5 5 6 15 50 0.5° 2050-050-T10 2.5 5 6 15 50 1° 2050-050-T15 2.5 5 6 15 50 1.5° 2050-050-T20 2.5 5 6 15 50 2° 2050-050-T25 2.5 5 8 15 50 2.5° 2050-050-T30 2.5 5 8 15 50 3° 2060-050-T05 3 6 8 15 50 0.5° 2060-050-T10 3 6 8 15 50 1° 2060-050-T15 3 6 8 15 50 1.5° 2060-050-T20 3 6 8 15 50 2° 2060-050-T25 3 6 8 15 50 2.5° F Endmills 32
