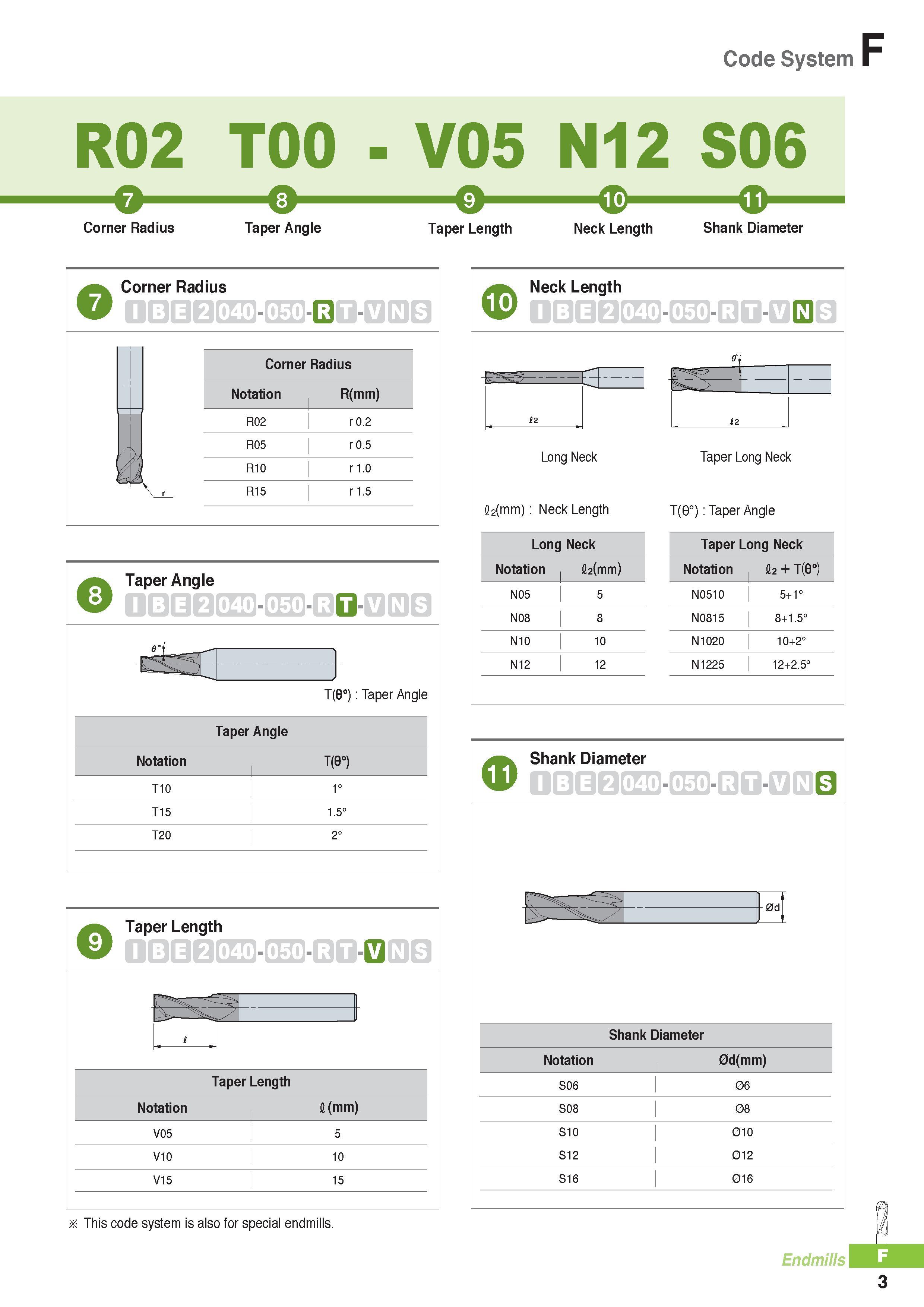

Code System R02 T00 - V05 N12 S06 & _10_ Corner Radius Taper Angle Taper Length Neck Length Shank Diameter Corner Radius 2 - 0 -E30- 3(3E Corner Radius Notation R(mm) R02 r 0.2 R05 r 0.5 R10 r 1.0 R15 r 1.5 G Taper Angle Be204o - 050 -iflT -VNs T(0°) Taper Angle Taper Angle Notation T(9°) T10 T15 1.5° T20 O Taper Length BIEI2I04Q- 050- RIT- VINIS Taper Length Notation I (mm) V05 V10 10 V15 15 This code system is also for special endmills. Neck Length J° flBBBOTOlO QO- Long Neck fl2(mm) Neck Length Long Neck Notation Mmm) N05 5 N08 N10 10 N12 12 Taper Long Neck T(0°): Taper Angle Taper Long Neck Notation 12 + T(0°) N0510 5+1° N0815 8+1.5° N1020 10+2° N1225 12+2.5° Shank Diameter Be2o4q 050 - T -VNS Shank Diameter Notation 0d(mm) S06 06 S08 08 S10 010 S12 012 S16 016 Endmills J. 3 8 5
